A Theoretical Model for Nondestructive Evaluation of Damage of Adhesive Joints

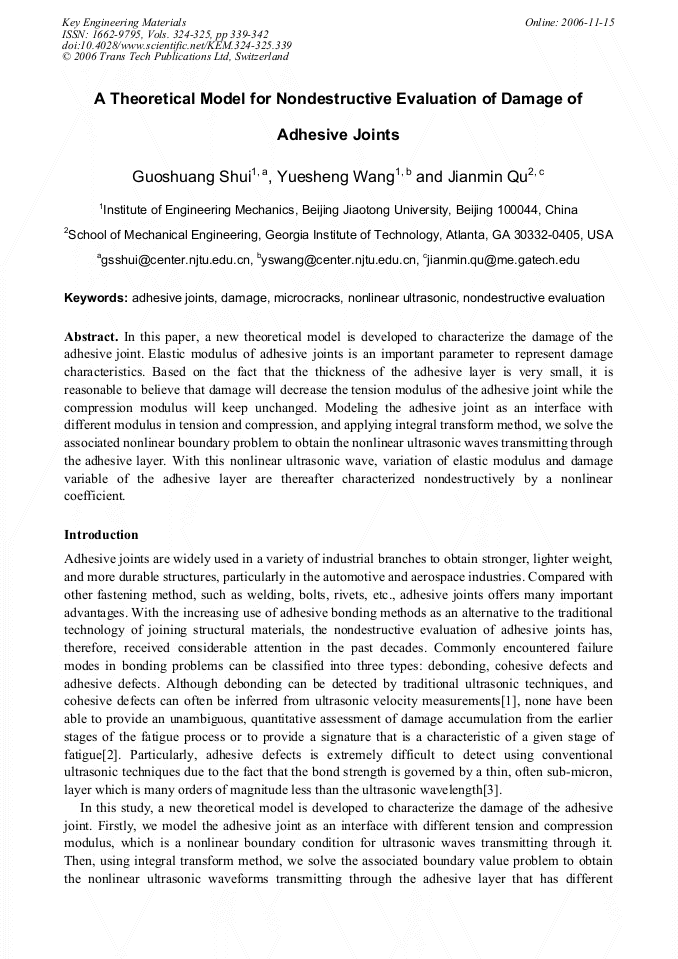

Article Preview

In this paper, a new theoretical model is developed to characterize the damage of the adhesive joint. Elastic modulus of adhesive joints is an important parameter to represent damage characteristics. Based on the fact that the thickness of the adhesive layer is very small, it is reasonable to believe that damage will decrease the tension modulus of the adhesive joint while the compression modulus will keep unchanged. Modeling the adhesive joint as an interface with different modulus in tension and compression, and applying integral transform method, we solve the associated nonlinear boundary problem to obtain the nonlinear ultrasonic waves transmitting through the adhesive layer. With this nonlinear ultrasonic wave, variation of elastic modulus and damage variable of the adhesive layer are thereafter characterized nondestructively by a nonlinear coefficient.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz




G. S. Shui et al., "A Theoretical Model for Nondestructive Evaluation of Damage of Adhesive Joints ", Key Engineering Materials, Vols. 324-325, pp. 339-342, 2006

Online since:

November 2006




[1] D. Jiao and J.L. Rose: J. Adhes. Sci. Technol Vol. 5 (1991), p.631.

[2] G.S. Shui, Y. S. Wang and J. Qu: Advances in Mechanics (in Chinese) Vol. 35 (2005), p.52.

[3] K. Vine, P. Cawley and A.J. Kinloch: J. Adhes. Vol. 77 (2001), p.125.

[4] J. Skrzypek and A. Ganczarksi: Modeling of Material Damage and Failure of Structure, Springer (1999). Nonlinear coefficient, β Damage variable, D Nonlinear coefficient, β +− KK.
