Numerical Simulation of 3-D Fracture Behaviors on the FRP-Strengthened Concrete Structures

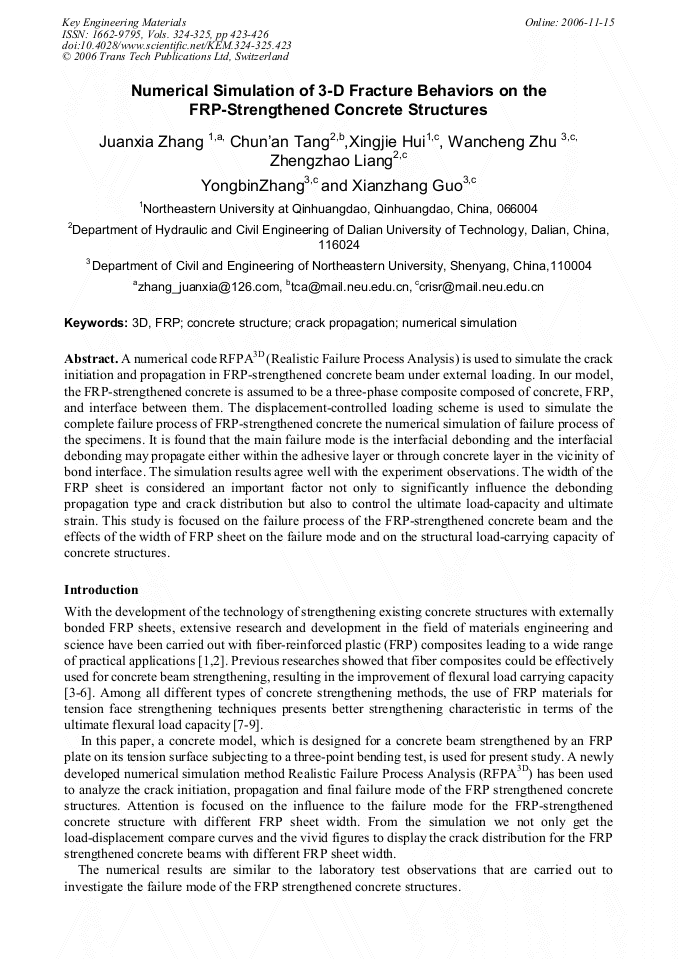

Article Preview

A numerical code RFPA3D (Realistic Failure Process Analysis) is used to simulate the crack initiation and propagation in FRP-strengthened concrete beam under external loading. In our model, the FRP-strengthened concrete is assumed to be a three-phase composite composed of concrete, FRP, and interface between them. The displacement-controlled loading scheme is used to simulate the complete failure process of FRP-strengthened concrete the numerical simulation of failure process of the specimens. It is found that the main failure mode is the interfacial debonding and the interfacial debonding may propagate either within the adhesive layer or through concrete layer in the vicinity of bond interface. The simulation results agree well with the experiment observations. The width of the FRP sheet is considered an important factor not only to significantly influence the debonding propagation type and crack distribution but also to control the ultimate load-capacity and ultimate strain. This study is focused on the failure process of the FRP-strengthened concrete beam and the effects of the width of FRP sheet on the failure mode and on the structural load-carrying capacity of concrete structures.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz






J. X. Zhang et al., "Numerical Simulation of 3-D Fracture Behaviors on the FRP-Strengthened Concrete Structures ", Key Engineering Materials, Vols. 324-325, pp. 423-426, 2006

Online since:

November 2006




[1] Y L Mo, S P Tsai and I S Lee. J Mater Struct, 31(1998), P. 411.

[2] F Seible, M J N Priestley, G A Hegemier and K. J Innamorato. Comp constr 2(1997),P. 52.

[3] H Varastehpour and P Hamelin. J Mater Struct, 30(1997), P. 160.

[4] A M Malek, H Saadatmanesh and M R Ehsani. ACI Struct J, 95(1998), P. 142.

[5] Z S Wu and Y Jun. Engineering Fracture Mechanics 70 (2003), P. 1339.

[6] KT Lau, L M Zhou. J Comp Part B 32(2001), P. 21.

[7] VPV Ramana, t Kant, S E Morton, P K Dutta, A Mukherjee and Y M Desai. J Comp Part B 31(2000), P. 461.

[8] H Yuan and Z S Wu and H Yoshizawa. J Struct Mech Earthquake Eng JSCE, 4 (2001),P. 27.

[9] H Nishida, A Kamiharako , T Shimomura and K Maruyama. Proc JCI, 213(1999), P. 1507.

[10] C. A Tang and W.C. Zhu: Concrete Damage and Rupture-Numerical Testing. (Beijing: Science press, China, 2003).

[11] Z Z Liang, C A Tang, H X Li and Y B Zhang. Int. J. Rock Mech. Min. Sci., 41 (2004),P. 419.

[12] W.C. Zhu, S.H. Wang and C.A. Tang, Key Engineering Materials, Vol. 243-244(2003), p.279.

[13] J X Zhang, J J Liu, C A Tang and X Chang. Key Engineering Materials, 297-300(2005), P. 2654. 0 0. 2 0. 4 0. 6 0. 8 1 1. 2 0 0. 5 1 1. 5 2 2. 5 Displacement(mm) N/Ncr FRP-w-20 FRP-w-60 FRP-w-100 plain concrete experiment.

[5] Fig. 4 (b) Load displacement compare curves for the experiment and numerical simulation with RFPA 3D Fig. 4 (a) Load-displacement compare curves simulated with RFPA 3D 0 2 4 6 8 10 12 0 0. 5 1 1. 5 2 Displacement(mm) Load(KN) FRP-w-20 FRP-w-60 FRP-w-100 plain concrete.
