The Thermal Cyclic Behavior of the TBCs with the MCrAlY Coating Method

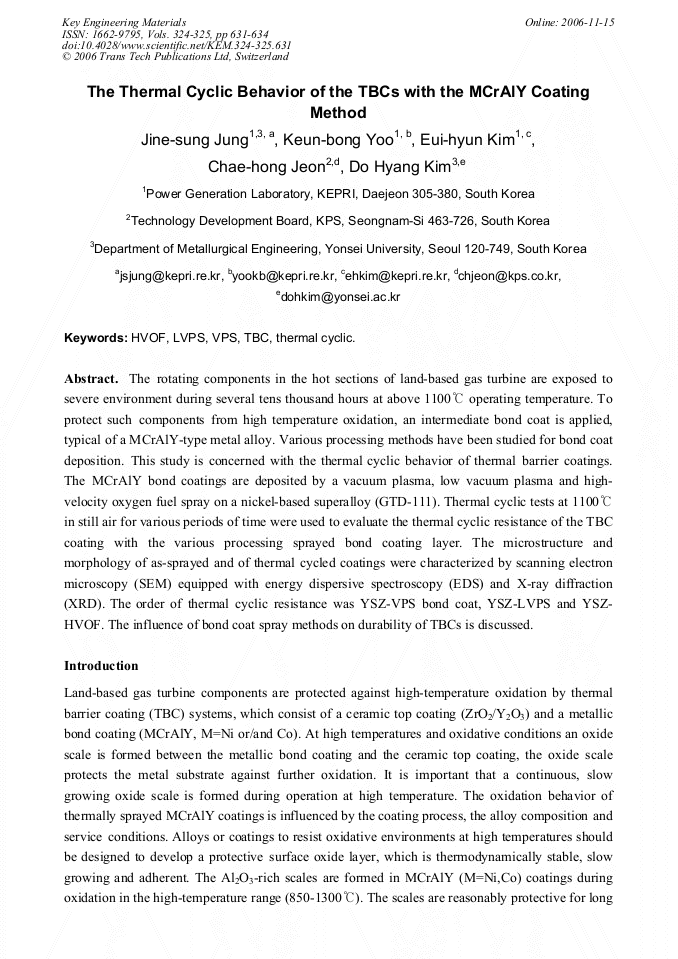

Article Preview

The rotating components in the hot sections of land-based gas turbine are exposed to severe environment during several tens thousand hours at above 1100則 operating temperature. To protect such components from high temperature oxidation, an intermediate bond coat is applied, typical of a MCrAlY-type metal alloy. Various processing methods have been studied for bond coat deposition. This study is concerned with the thermal cyclic behavior of thermal barrier coatings. The MCrAlY bond coatings are deposited by a vacuum plasma, low vacuum plasma and highvelocity oxygen fuel spray on a nickel-based superalloy (GTD-111). Thermal cyclic tests at 1100則 in still air for various periods of time were used to evaluate the thermal cyclic resistance of the TBC coating with the various processing sprayed bond coating layer. The microstructure and morphology of as-sprayed and of thermal cycled coatings were characterized by scanning electron microscopy (SEM) equipped with energy dispersive spectroscopy (EDS) and X-ray diffraction (XRD). The order of thermal cyclic resistance was YSZ-VPS bond coat, YSZ-LVPS and YSZHVOF. The influence of bond coat spray methods on durability of TBCs is discussed.



Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz




J. S. Jung et al., "The Thermal Cyclic Behavior of the TBCs with the MCrAlY Coating Method", Key Engineering Materials, Vols. 324-325, pp. 631-634, 2006

Online since:

November 2006




[1] W. Brandl, D. Toma, H.J. Grabke: Surface.

[2] Diana To D. R.

[5] Tolpygo, V. K. and Clarke, D. R.: Acta mater. Vol. 48 (2000), p.3283 Figure 3. Elemental mapping of the lower side on the spalled ceramic topcoat.
