The Crack Growth Life Predictions for High Cycle Dynamic Components

Abstract:

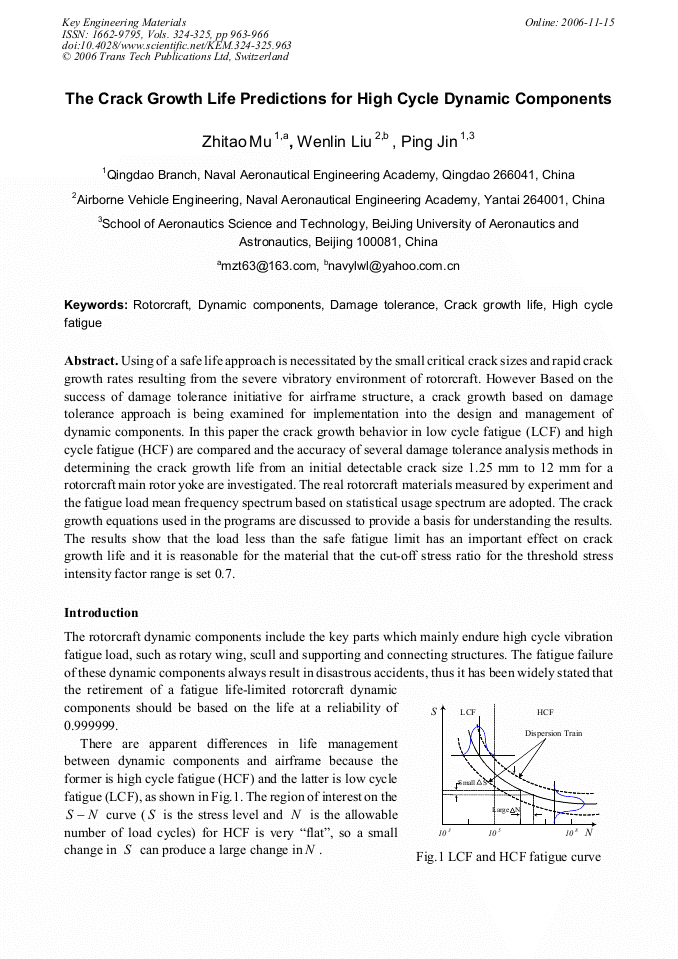

Article Preview

Using of a safe life approach is necessitated by the small critical crack sizes and rapid crack growth rates resulting from the severe vibratory environment of rotorcraft. However Based on the success of damage tolerance initiative for airframe structure, a crack growth based on damage tolerance approach is being examined for implementation into the design and management of dynamic components. In this paper the crack growth behavior in low cycle fatigue (LCF) and high cycle fatigue (HCF) are compared and the accuracy of several damage tolerance analysis methods in determining the crack growth life from an initial detectable crack size 1.25 mm to 12 mm for a rotorcraft main rotor yoke are investigated. The real rotorcraft materials measured by experiment and the fatigue load mean frequency spectrum based on statistical usage spectrum are adopted. The crack growth equations used in the programs are discussed to provide a basis for understanding the results. The results show that the load less than the safe fatigue limit has an important effect on crack growth life and it is reasonable for the material that the cut-off stress ratio for the threshold stress intensity factor range is set 0.7.

Info:

Periodical:

Key Engineering Materials (Volumes 324-325)

Edited by:

M.H. Aliabadi, Qingfen Li, Li Li and F.-G. Buchholz

Pages:

963-966

DOI:

10.4028/www.scientific.net/KEM.324-325.963

Citation:

Z. T. Mu et al., "The Crack Growth Life Predictions for High Cycle Dynamic Components ", Key Engineering Materials, Vols. 324-325, pp. 963-966, 2006

Online since:

November 2006

Export:

Price:

$35.00

[1] Mu Z T, Liu W L, Yang X H etc. Reliability Assessment to Helicopter Dynamic Components Fatigue Safe Life. Progress in Safety Science and Technology, Proceedings of Asia Pacific Symposium on Safety 2005. Shaoxing, Zhejiang, China, November 2 to 4, (2005).

[2] Zeng J H, Zeng B Y, Shi S D. The Helicopter Dynamic Component's Life Evaluation Technique Combining Safe-life and Fail-safe. Helicopter Technology, Vol. 3 (2003), p.15.

[3] Robert E. Vaughan and Jung Hua Chang. Life Predictions for High Cycle Dynamic Components Using Damage Tolerance and Small Threshold Cracks. Presented at the American Helicopter Society 59th Annual Forum, Phoenix, Arizona (2003).

DOI: 10.4050/jahs.49.493

[4] Huang L, Zeng B Y, Pan C J. The Forman Crack Propagation Speed Curve of Four Parameters Fitting Technique. Helicopter Technology, Vol. 3 (2003), p.9.

[5] Mu Z T, Duan C M, Wu F M. Method of establishing fatigue load spectrum to dynamic components of helicopter. Acta Aeronoutica et Astronautica Sinica, Vol. 18 (1997), p.382.

[6] Mu Z T, Hua R, Duan C M. Damage Tolerance Analyses of Helicopter Dynamic Components under High Cycle Fatigue Load. Journal of Mechanical Strength, Vol. 24 (2002).
