Application of Electric Addressing Spatial Light Modulator to the Moiré Measurement

Abstract:

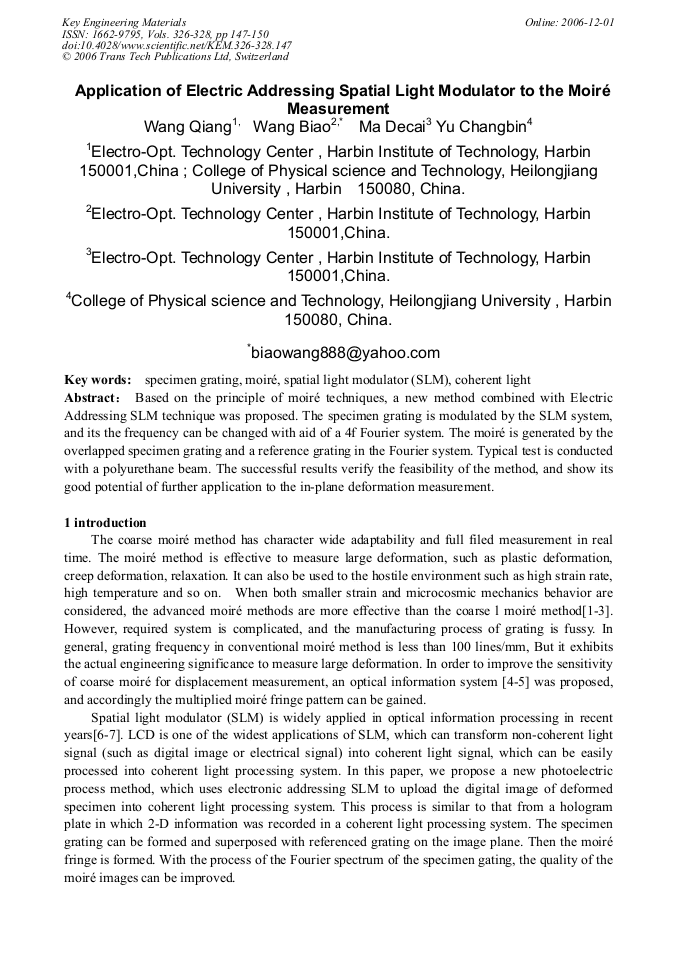

Article Preview

Based on the principle of moiré techniques, a new method combined with Electric Addressing SLM technique was proposed. The specimen grating is modulated by the SLM system, and its the frequency can be changed with aid of a 4f Fourier system. The moiré is generated by the overlapped specimen grating and a reference grating in the Fourier system. Typical test is conducted with a polyurethane beam. The successful results verify the feasibility of the method, and show its good potential of further application to the in-plane deformation measurement.

Info:

Periodical:

Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim

Pages:

147-150

DOI:

10.4028/www.scientific.net/KEM.326-328.147

Citation:

Q. Wang et al., "Application of Electric Addressing Spatial Light Modulator to the Moiré Measurement", Key Engineering Materials, Vols. 326-328, pp. 147-150, 2006

Online since:

December 2006

Export:

Price:

$35.00

[1] Xie HM, Liu ZW, Fang DN, et al., Development nana Moiré method with high-resolution microscopy at FML, OPTICS AND LASERS IN ENGINEERING, 43 (8): 904-918 AUG (2005).

DOI: 10.1016/j.optlaseng.2004.09.008

[2] Xie HM, Asundi A, Boay CG, et al. �High resolution AFM scanning Moiré method and its application to the micro-deformation in the BGA electronic package �MICROELECTRONICS RELIABILITY 42 (8): 1219-1227 AUG (2002).

DOI: 10.1016/s0026-2714(02)00084-7

[3] Xie HM, Kishimoto S, Asundi A, et al., In-plane deformation measurement using the atomic force microscope moiré method , NANOTECHNOLOGY 11 (1): 24-29 MAR (2000).

DOI: 10.1088/0957-4484/11/1/305

[4] F. P . Chiang: Techniques of optical spatial filtering applied to the processing of Moiré fringe patterns. Exp. Mech., 5(11): 523-531, (1969).

[5] R. N. Bracewell: The Fourier Transform and Its Applications , MCGRAW-HILL, New York, (1978).

[6] J.M. Florence and R. Gale: Coherent optical correlation using a deformable mirror device spatial light modulator in Fourier plane, Appl. Opt., 27, 2091-2092, (1988).

DOI: 10.1364/ao.27.002091

[7] P.R. Barbier and G. Moddel, Spatial light modulator�processing light in real time, Opt. Photonics news, 8, 17-21, (1997).

[8] J. W. Goodman, Introduction to Fourier optics�MCGRAW-HILL, New York, (1968).
