A Study of Nano-Indentation Test Using Rhombus-Shaped Cantilever in Atomic Force Microscope


Article Preview

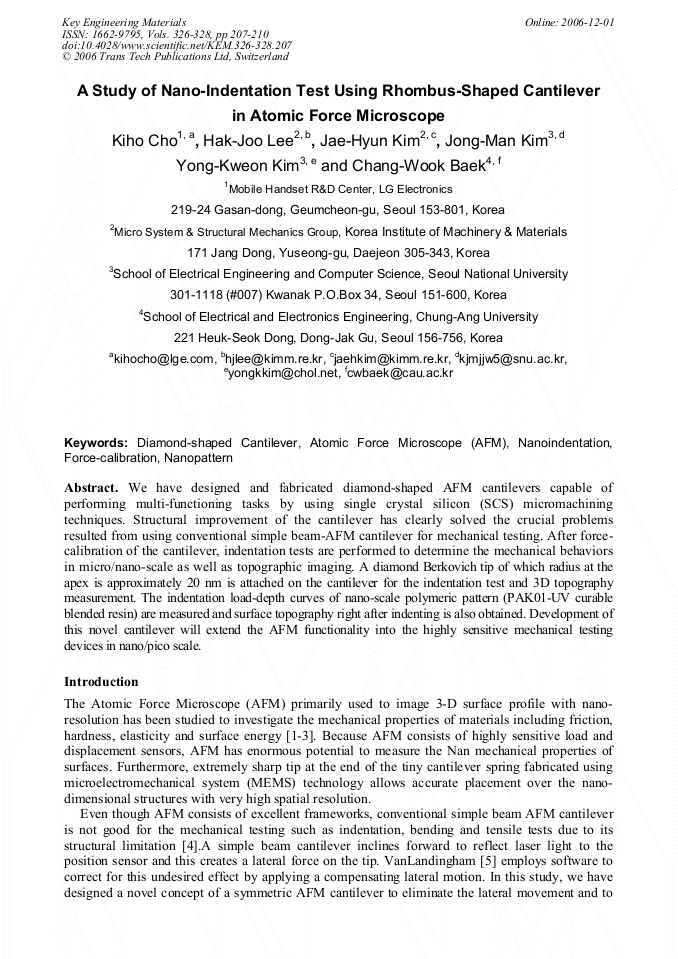

We have designed and fabricated diamond-shaped AFM cantilevers capable of performing multi-functioning tasks by using single crystal silicon (SCS) micromachining techniques. Structural improvement of the cantilever has clearly solved the crucial problems resulted from using conventional simple beam-AFM cantilever for mechanical testing. After forcecalibration of the cantilever, indentation tests are performed to determine the mechanical behaviors in micro/nano-scale as well as topographic imaging. A diamond Berkovich tip of which radius at the apex is approximately 20 nm is attached on the cantilever for the indentation test and 3D topography measurement. The indentation load-depth curves of nano-scale polymeric pattern (PAK01-UV curable blended resin) are measured and surface topography right after indenting is also obtained. Development of this novel cantilever will extend the AFM functionality into the highly sensitive mechanical testing devices in nano/pico scale.



Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim






K. H. Cho et al., "A Study of Nano-Indentation Test Using Rhombus-Shaped Cantilever in Atomic Force Microscope", Key Engineering Materials, Vols. 326-328, pp. 207-210, 2006

Online since:

December 2006
