Measurement of Mechanical Properties and Residual Stresses of Bridged Gold Films and Circular Gold Membranes

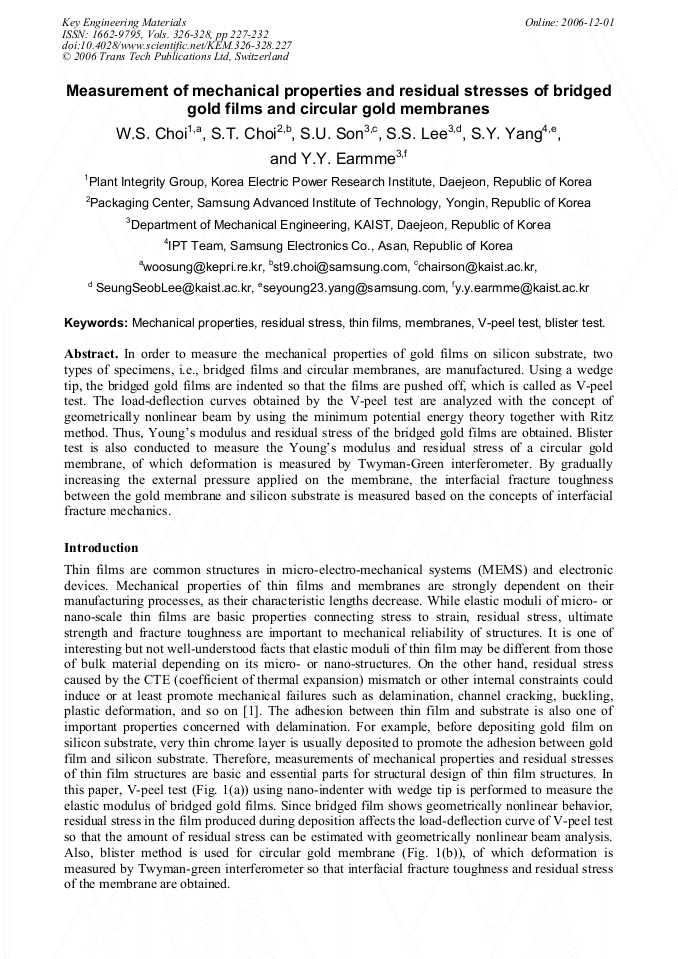

Article Preview

In order to measure the mechanical properties of gold films on silicon substrate, two types of specimens, i.e., bridged films and circular membranes, are manufactured. Using a wedge tip, the bridged gold films are indented so that the films are pushed off, which is called as V-peel test. The load-deflection curves obtained by the V-peel test are analyzed with the concept of geometrically nonlinear beam by using the minimum potential energy theory together with Ritz method. Thus, Young’s modulus and residual stress of the bridged gold films are obtained. Blister test is also conducted to measure the Young’s modulus and residual stress of a circular gold membrane, of which deformation is measured by Twyman-Green interferometer. By gradually increasing the external pressure applied on the membrane, the interfacial fracture toughness between the gold membrane and silicon substrate is measured based on the concepts of interfacial fracture mechanics.



Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim






W. S. Choi et al., "Measurement of Mechanical Properties and Residual Stresses of Bridged Gold Films and Circular Gold Membranes", Key Engineering Materials, Vols. 326-328, pp. 227-232, 2006

Online since:

December 2006




[1] J.W. Hutchinson, and Z. Suo, in: Advances in Applied Mechanics, edited by J.W. Hutchinson and T.Y. Wu, Vol. 29, Academy Press, Orlando (1991).

[2] W.S. Choi, Measurement of Mechanical Properties and Fracture Toughness of Bridged and Circular Membrane, Master Thesis, KAIST (2005).

[3] S.A. Jasbir, Introduction to Optimum Design (Mcgraw-Hill, Singapore, 1989).

[4] S.P. Timoshenko, and S. Woinowsky-Krieger, Theory of Plates and Shells (McGraw-Hill, New York, 1959).

[5] T.L. Anderson, Fracture mechanics (CRC press, Florida, 1995).

[6] J.H. Kim, H.J. Lee, S.W. Han, C.U. Back, J.M. Kim, and Y.G. Kim, Proceedings of KSME Spring Conferences (2004), p.252.

[7] S.Y. Yang, Reliability Evaluation for Flip-Chip Electronic Packages Using Optical Measurement Techniques, Doctorial Thesis, KAIST (2005).

[8] H.D. Espinosa, and B.C. Prorok, Journal of Materials Science, Vol. 38 (2003), p.4125.

[9] H.D. Espinosa, B.C. Prorok, and B. Peng, Journal of the Mechanics and Physics of Solids, Vol. 52 (2004), p.667.
