Study on the Lateral Piezoelectric Actuator with Actuation Range Amplifying Structure

Abstract:

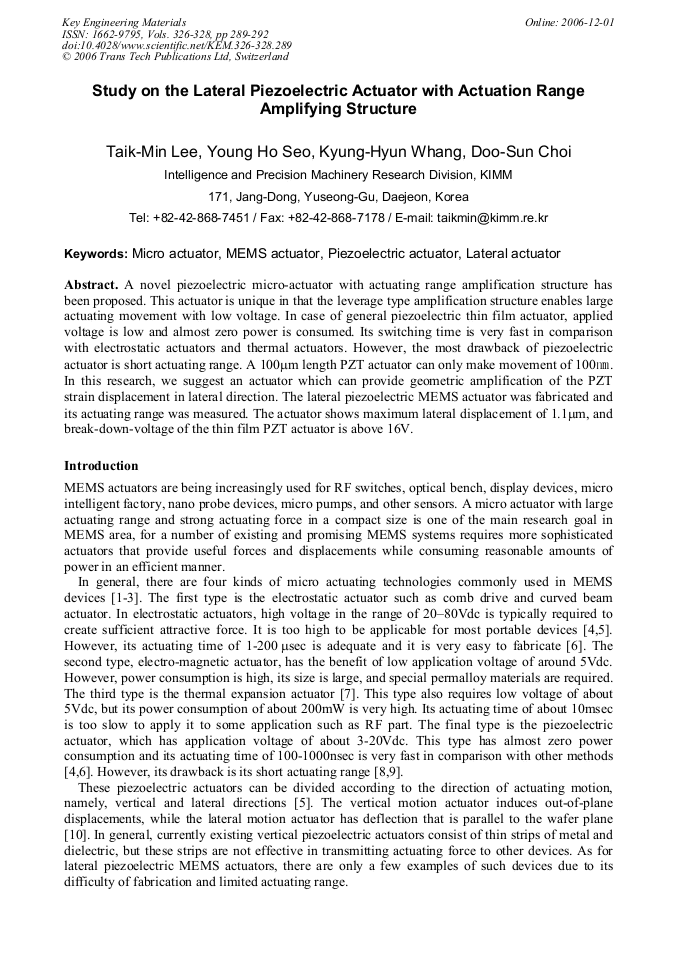

Article Preview

A novel piezoelectric micro-actuator with actuating range amplification structure has been proposed. This actuator is unique in that the leverage type amplification structure enables large actuating movement with low voltage. In case of general piezoelectric thin film actuator, applied voltage is low and almost zero power is consumed. Its switching time is very fast in comparison with electrostatic actuators and thermal actuators. However, the most drawback of piezoelectric actuator is short actuating range. A 100μm length PZT actuator can only make movement of 100. In this research, we suggest an actuator which can provide geometric amplification of the PZT strain displacement in lateral direction. The lateral piezoelectric MEMS actuator was fabricated and its actuating range was measured. The actuator shows maximum lateral displacement of 1.1μm, and break-down-voltage of the thin film PZT actuator is above 16V.

Info:

Periodical:

Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim

Pages:

289-292

DOI:

10.4028/www.scientific.net/KEM.326-328.289

Citation:

T. M. Lee et al., "Study on the Lateral Piezoelectric Actuator with Actuation Range Amplifying Structure", Key Engineering Materials, Vols. 326-328, pp. 289-292, 2006

Online since:

December 2006

Export:

Price:

$35.00

[1] N, Maluf: An introduction to microelectromechanical systems engineering (Artech House, 2000).

[2] S. D. Senturia: Microsystem design (Kluwer Academic Publishers, 2001).

[3] G. M. Rebeiz: RF MEMS theory, design, and technology (John Wiley & Sons Publication, 2003).

[4] G. M. Rebeiz and J. B. Muldavin: RF MEMS switches and switch circuits, IEEE Microwave magazine (Dec. 2001) pp.59-71.

DOI: 10.1109/6668.969936

[5] H. A. Tilmans: MEMS components for wireless communications, EUROSENSORS XVI (Sep. 2002).

[6] T. Campbell: MEMS switch technology approaches the Ideal Switch, Applied Microwave and Wireless (May. 2001) pp.100-107.

[7] C. Hsu, W. Tai, and W. Hsu: Design and analysis of an electro-thermally driven long-stretch micro drive with cascaded structure, Proceedings of IMECE2002-33321.

DOI: 10.1115/imece2002-33321

[8] G. H. Haertling: Rainbow Ceramics: A New Type of Ultra-High-Displacement Actuator, Am. Ceram Soc Bull, Vol 73, No. 1 (1994) pp.93-96.

[9] Y. Sugawara, K. Onitsuka, S. Yoshikawa, Q. C. Xu, R. E. Newnham, and K. Uchino: MetalCeramic Composite Actuators, J. Am. Ceram. Soc., Vol. 75, No. 4 (1992) pp.996-998.

[10] I. Schiele and B. Hillerich: Comparison of lateral and vertical switches for application as microrelays, J. Micromech. Microeng. (1999) pp.146-150.

DOI: 10.1088/0960-1317/9/2/310
