Injection Molding Nano and Micro Pillar Arrays

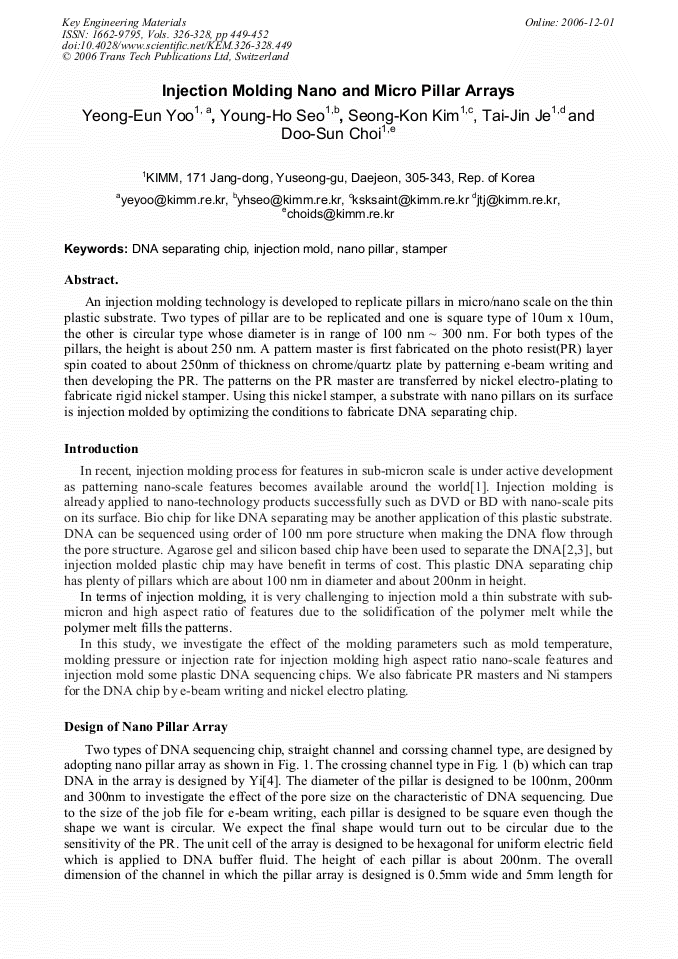

Article Preview

An injection molding technology is developed to replicate pillars in micro/nano scale on the thin plastic substrate. Two types of pillar are to be replicated and one is square type of 10um x 10um, the other is circular type whose diameter is in range of 100 nm ~ 300 nm. For both types of the pillars, the height is about 250 nm. A pattern master is first fabricated on the photo resist(PR) layer spin coated to about 250nm of thickness on chrome/quartz plate by patterning e-beam writing and then developing the PR. The patterns on the PR master are transferred by nickel electro-plating to fabricate rigid nickel stamper. Using this nickel stamper, a substrate with nano pillars on its surface is injection molded by optimizing the conditions to fabricate DNA separating chip.



Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim




Y. E. Yoo et al., "Injection Molding Nano and Micro Pillar Arrays", Key Engineering Materials, Vols. 326-328, pp. 449-452, 2006

Online since:

December 2006




[1] Kari Monkkonen, etc. : Polymer Engineering and Science, July, Vol. 42, (2002), pp.1600-1608.

[2] W.D. Volkmuth and R.H. Austin : Nature Vol. 358 (1992), pp.600-602.

[3] O. Bakajin, etc. : Anal. Chem, Vol. 73 (2000), pp.6053-6056.

[4] Soyeong Yi : Master's Thesis, KAIST (2002), pp.40-46.
