Effect of Pb Content on the Fatigue Properties of D.C. Reactive Sputtering-Derived PZT Thin Films

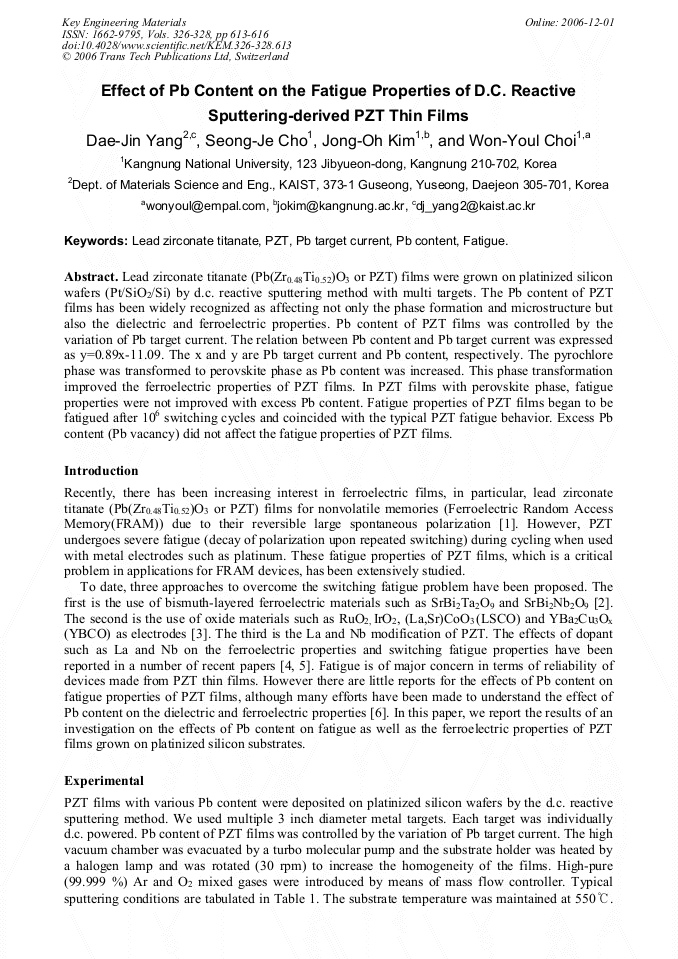

Article Preview

Lead zirconate titanate (Pb(Zr0.48Ti0.52)O3 or PZT) films were grown on platinized silicon wafers (Pt/SiO2/Si) by d.c. reactive sputtering method with multi targets. The Pb content of PZT films has been widely recognized as affecting not only the phase formation and microstructure but also the dielectric and ferroelectric properties. Pb content of PZT films was controlled by the variation of Pb target current. The relation between Pb content and Pb target current was expressed as y=0.89x-11.09. The x and y are Pb target current and Pb content, respectively. The pyrochlore phase was transformed to perovskite phase as Pb content was increased. This phase transformation improved the ferroelectric properties of PZT films. In PZT films with perovskite phase, fatigue properties were not improved with excess Pb content. Fatigue properties of PZT films began to be fatigued after 106 switching cycles and coincided with the typical PZT fatigue behavior. Excess Pb content (Pb vacancy) did not affect the fatigue properties of PZT films.



Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim




D. J. Yang et al., "Effect of Pb Content on the Fatigue Properties of D.C. Reactive Sputtering-Derived PZT Thin Films", Key Engineering Materials, Vols. 326-328, pp. 613-616, 2006

Online since:

December 2006




[1] J.F. Scott and C.A. Araujo: Science, Vol. 246 (1989), p.1400.

[2] M. Moert, T. Mikolajick, G. Schindler, N. Nagel, I. Kasko, W. Hartner, C. Dehm, H. Kohlst, and R. Waser: Thin solid films, Vol. 473 (2005), p.328.

DOI: 10.1016/j.tsf.2004.08.087

[3] M. Lee, K. Park, S. Nam, K. Lee, J. Seo, S. Joo, S. Lee, and Y. Lee: Jpn. J. Appl. Phys., Vol. 41 (2002), p.6709.

[4] W. Choi and T. Sands: Materials Research Society Symposia Proceedings, Vol. 718 (2002), p.297.

[5] T. Kijima, T. Aoyama, H. Miyazawa, Y. Hamada, K. Ohashi, M. Nakayama, E. Natori, and T. Shimoda: Jpn. J. Appl. Phys., Vol. 44 (2005), p.267.

[6] T. Masuda, Y. Miyaguchi, M. Tanimura, Y. Nishioka, K. Suu, and N. Tani: Applied Surface Science, Vol. 169/170 (2001), p.539.

DOI: 10.1016/s0169-4332(00)00716-9

[7] M. Subramanian, G. Aravamudan, and G. Subba Rao: Prog. Solid State Chem., Vol. 15 (1983), p.55.
