Characterization of Multipoint Diffraction Strain Sensor (MISS)

Abstract:

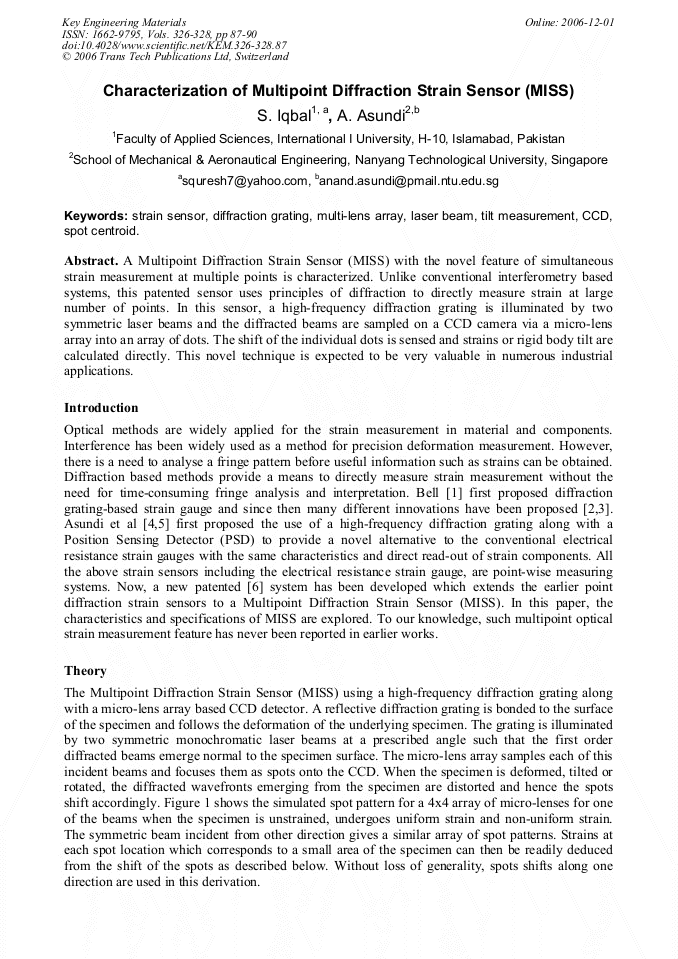

Article Preview

A Multipoint Diffraction Strain Sensor (MISS) with the novel feature of simultaneous strain measurement at multiple points is characterized. Unlike conventional interferometry based systems, this patented sensor uses principles of diffraction to directly measure strain at large number of points. In this sensor, a high-frequency diffraction grating is illuminated by two symmetric laser beams and the diffracted beams are sampled on a CCD camera via a micro-lens array into an array of dots. The shift of the individual dots is sensed and strains or rigid body tilt are calculated directly. This novel technique is expected to be very valuable in numerous industrial applications.

Info:

Periodical:

Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim

Pages:

87-90

DOI:

10.4028/www.scientific.net/KEM.326-328.87

Citation:

S. Iqbal and A. K. Asundi, "Characterization of Multipoint Diffraction Strain Sensor (MISS)", Key Engineering Materials, Vols. 326-328, pp. 87-90, 2006

Online since:

December 2006

Export:

Price:

$35.00

[1] J. F. Bell: Determination of dynamic plastic strain through the use of diffraction gratings, J. Appl. Phys. Vol. 27 (1956), pp.1109-1113.

[2] J. C. Moulder and J. F. Cardenas-Garcia: Two-dimensional strain analysis using a video optical diffractometer, Exp. Tech. Vol. 17 (1993), pp.11-16.

DOI: 10.1111/j.1747-1567.1993.tb00768.x

[3] P. J. Sevenhuijsen, J. S. Sirkis, and F. Bremand: Current trends in obtaining deformation data from grids, Exp. Tech. (1993), pp.22-26.

DOI: 10.1111/j.1747-1567.1993.tb00747.x

[4] A. Asundi and B. Zhao: Optical strain sensor using position-sensitive detector and diffraction grating: error analysis, Opt. Eng. Vol. 39-6 (2000), pp.1655-1651.

DOI: 10.1117/1.602541

[5] B. Zhao, H. Xie and A. Asundi: Optical strain sensor using median density grating foil: Rivaling the electric strain gauge, Rev. Sci. Inst. Vol. 72-2 (2001), pp.1554-1558.

DOI: 10.1063/1.1336825

[6] A. Asundi, S. Mhaisalkar and A. Priyadarshi, Moiré Interferometric Strain Sensor, US Patent Application, PAT/026/05/05/US - Moire Interferometric Strain Sensor (2005).

DOI: 10.1117/12.962787
