Dynamic ESPI System for Spatio-Temporal Strain Analysis of a Deforming Solid Object

Abstract:

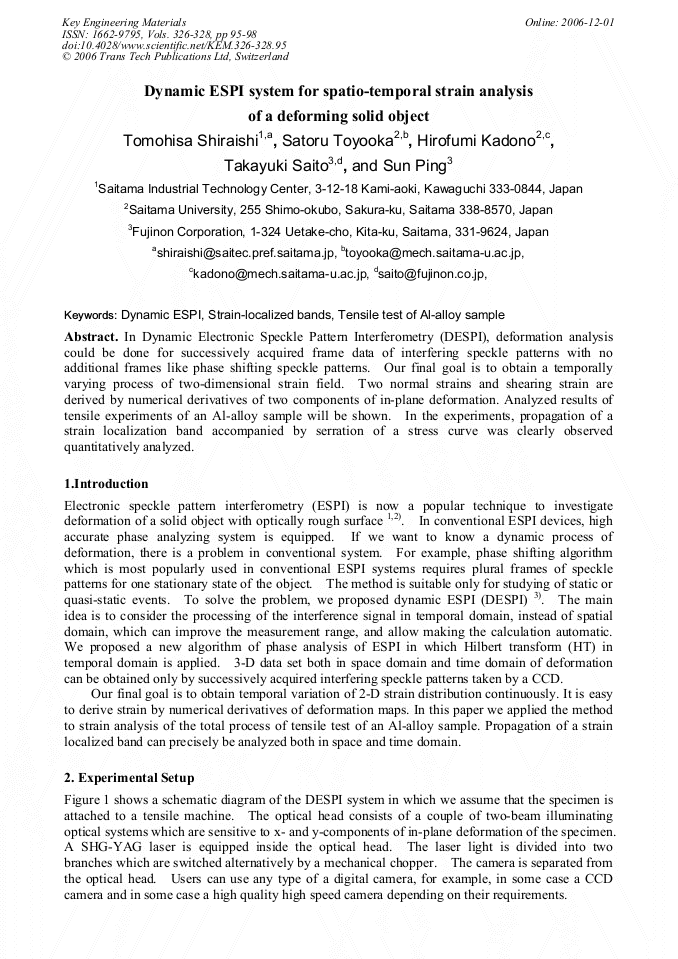

Article Preview

In Dynamic Electronic Speckle Pattern Interferometry (DESPI), deformation analysis could be done for successively acquired frame data of interfering speckle patterns with no additional frames like phase shifting speckle patterns. Our final goal is to obtain a temporally varying process of two-dimensional strain field. Two normal strains and shearing strain are derived by numerical derivatives of two components of in-plane deformation. Analyzed results of tensile experiments of an Al-alloy sample will be shown. In the experiments, propagation of a strain localization band accompanied by serration of a stress curve was clearly observed quantitatively analyzed.

Info:

Periodical:

Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim

Pages:

95-98

DOI:

10.4028/www.scientific.net/KEM.326-328.95

Citation:

T. Shiraishi et al., "Dynamic ESPI System for Spatio-Temporal Strain Analysis of a Deforming Solid Object", Key Engineering Materials, Vols. 326-328, pp. 95-98, 2006

Online since:

December 2006

Export:

Price:

$35.00

[1] R.S. Sirohi: Speckle Metrology (Mercel Dekker Inc, New York, 1993).

[2] P.K. Rastogi: Digital Speckle Pattern Interferometry and Related Techniques, John Wiley & Sons LTD, Chichester (2002).

[3] V.D. Madjarova, H. Kadono, and S. Toyooka, Optics Express, 11-6 pp.617-623 (2003).
