Fatigue Life Evaluation for Nuclear Power Plant Using Green’s Function and Real Operating Histories

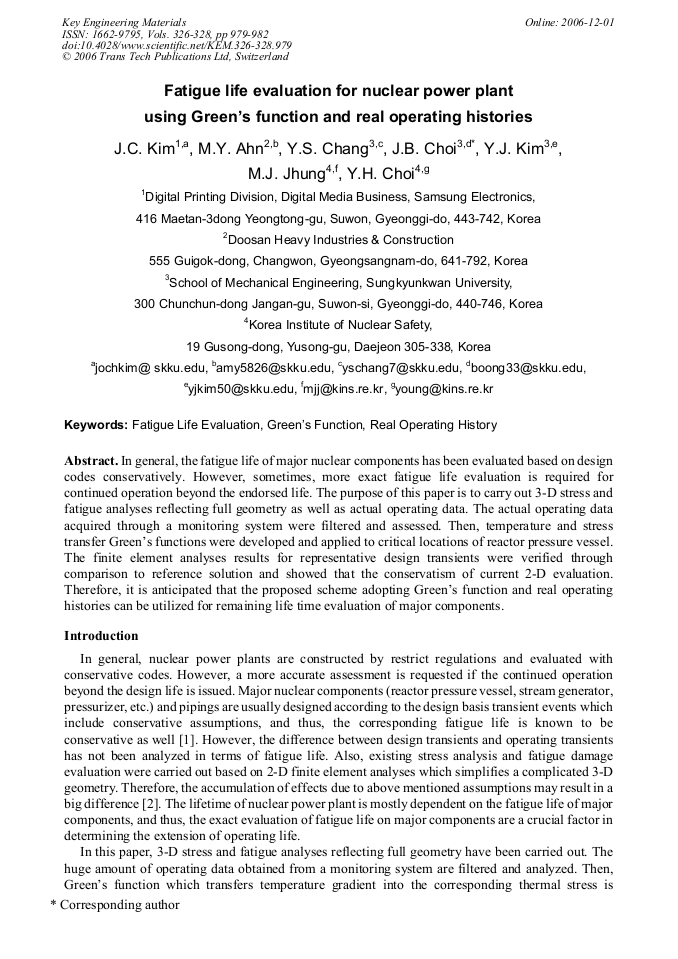

Article Preview

In general, the fatigue life of major nuclear components has been evaluated based on design codes conservatively. However, sometimes, more exact fatigue life evaluation is required for continued operation beyond the endorsed life. The purpose of this paper is to carry out 3-D stress and fatigue analyses reflecting full geometry as well as actual operating data. The actual operating data acquired through a monitoring system were filtered and assessed. Then, temperature and stress transfer Green’s functions were developed and applied to critical locations of reactor pressure vessel. The finite element analyses results for representative design transients were verified through comparison to reference solution and showed that the conservatism of current 2-D evaluation. Therefore, it is anticipated that the proposed scheme adopting Green’s function and real operating histories can be utilized for remaining life time evaluation of major components.



Key Engineering Materials (Volumes 326-328)

Edited by:

Soon-Bok Lee and Yun-Jae Kim






J.C. Kim et al., "Fatigue Life Evaluation for Nuclear Power Plant Using Green’s Function and Real Operating Histories", Key Engineering Materials, Vols. 326-328, pp. 979-982, 2006

Online since:

December 2006




[1] B. Yang, P.K. Liaw, H. Wang, et al.: Thermographic Investigation of the Fatigue Behavior of Reactor Pressure Vessel Steels, Materials Science and Engineering, A314, pp.131-133 (2001).

[2] J.B. Choi, J.C. Kim, et al.: Development of Web-based Fatigue Life Evaluation System for Reactor Pressure Vessel, 5th International Workshop on the Integrity of Nuclear Components (2004).

[3] Korea Institute of Nuclear Safety: Development of a web-based monitoring system using operation parameters for the main component in Nuclear Power Plant, KINS/HR-509 (2004).

[4] ANSYS: Introduction of ANSYS, ANSYS Inc. (2004).

[5] R.C. Hibbeler: Mechanics of Materials, Fourth Edition, Prentice Hall Inc., pp.409-412 (2000).

[6] J.H. Lee: Design Analysis of the UCN 3/4 Reactor Vessel Shell Section, Intrinsic Report by Hanjung Heavy Industry (1992).
