The Effect of Workpiece Roundness of the Run-Out of CBN Electroplated Grinding Wheels

Abstract:

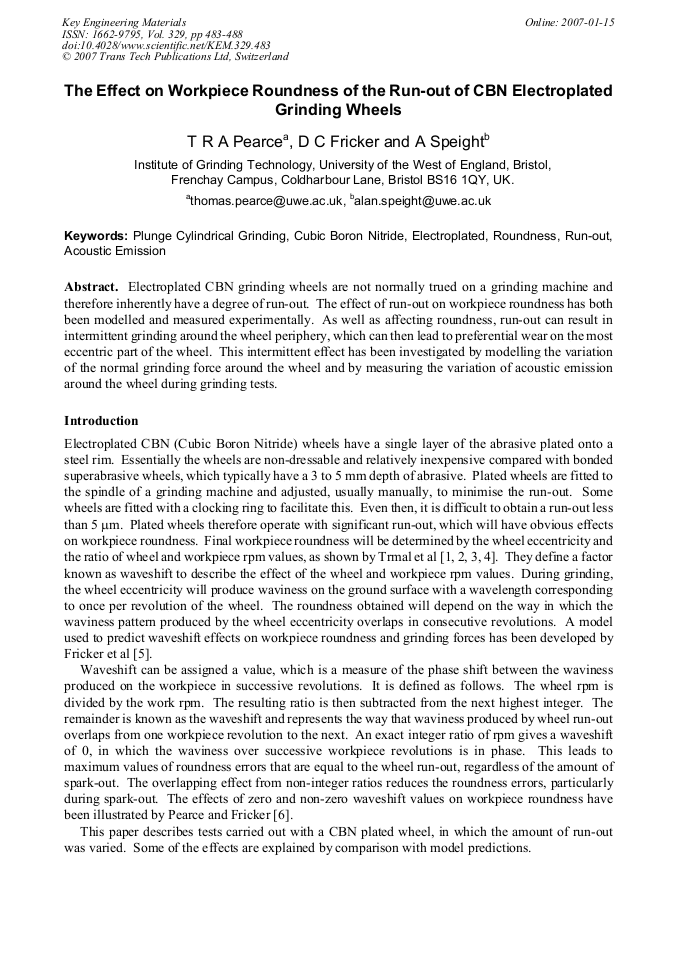

Article Preview

Electroplated CBN grinding wheels are not normally trued on a grinding machine and therefore inherently have a degree of run-out. The effect of run-out on workpiece roundness has both been modelled and measured experimentally. As well as affecting roundness, run-out can result in intermittent grinding around the wheel periphery, which can then lead to preferential wear on the most eccentric part of the wheel. This intermittent effect has been investigated by modelling the variation of the normal grinding force around the wheel and by measuring the variation of acoustic emission around the wheel during grinding tests.

Info:

Periodical:

Edited by:

Dongming Guo, Tsunemoto Kuriyagawa, Jun Wang and Jun’ichi Tamaki

Pages:

483-488

DOI:

10.4028/www.scientific.net/KEM.329.483

Citation:

T.R.A. Pearce et al., "The Effect of Workpiece Roundness of the Run-Out of CBN Electroplated Grinding Wheels", Key Engineering Materials, Vol. 329, pp. 483-488, 2007

Online since:

January 2007

Export:

Price:

$35.00

[1] H. Kaliszer and G. Trmal: Proc. Int. Grinding Conf. (Pittsburgh, USA 1972), pp.708-773.

[2] H. Kaliszer and G. Trmal: Proc. 13th MTDR Conf. (Birmingham, UK 1972), pp.297-302.

[3] H. Kaliszer and G. Trmal: Proc. 14th MTDR Conf. (Manchester, UK 1973), pp.677-681.

[4] G.J. Trmal and F. Holesovsky: Int. J. Mach. Tools Manuf. Vol. 41 (2001), pp.979-989.

[5] D.C. Fricker, A. Speight and T.R.A. Pearce: The modelling of roundness in cylindrical plunge grinding to incorporate waveshift and external vibration effects, submitted to Proc. I. Mech. E., J. Eng Manuf. (2005).

[6] T.R.A. Pearce and D.C. Fricker: 7 th International Symposium on Advances in Abrasive Technology, ISAAT 2004 (Bursa, Turkey 2004), pp.289-294.
