Analysis of Stress-Induced Birefringence in Nd:YAG Crystal

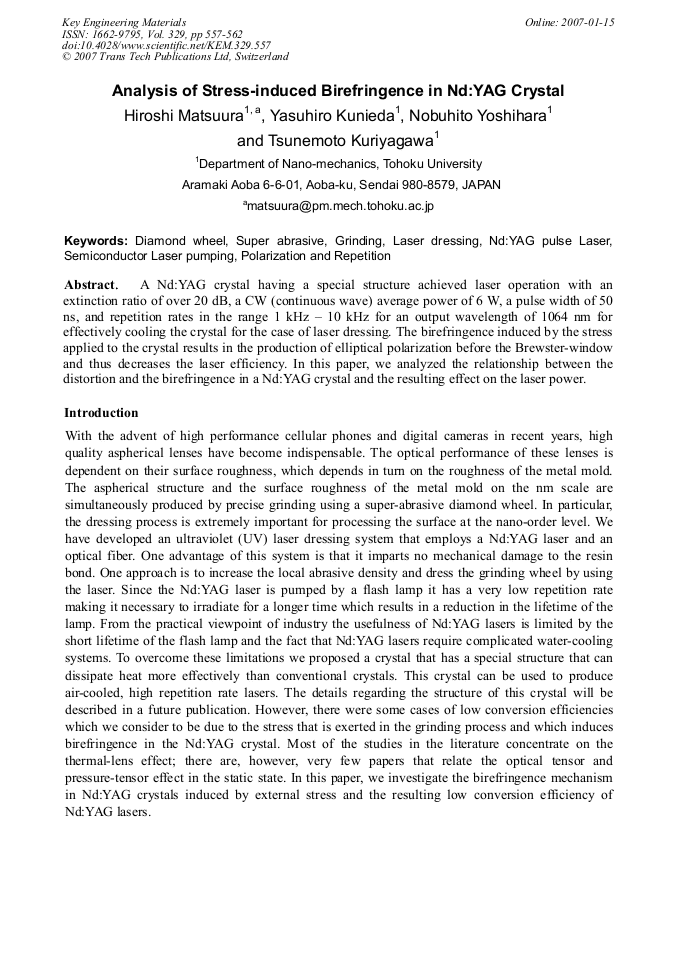

Article Preview

A Nd:YAG crystal having a special structure achieved laser operation with an extinction ratio of over 20 dB, a CW (continuous wave) average power of 6 W, a pulse width of 50 ns, and repetition rates in the range 1 kHz – 10 kHz for an output wavelength of 1064 nm for effectively cooling the crystal for the case of laser dressing. The birefringence induced by the stress applied to the crystal results in the production of elliptical polarization before the Brewster-window and thus decreases the laser efficiency. In this paper, we analyzed the relationship between the distortion and the birefringence in a Nd:YAG crystal and the resulting effect on the laser power.



Edited by:

Dongming Guo, Tsunemoto Kuriyagawa, Jun Wang and Jun’ichi Tamaki




H. Matsuura et al., "Analysis of Stress-Induced Birefringence in Nd:YAG Crystal", Key Engineering Materials, Vol. 329, pp. 557-562, 2007

Online since:

January 2007




[1] J. D. Foster & L. M. Osterink, Thermal Effect in A Nd: YAG Laser, J. Appl. Phys., 41, (9), pp.3656-3663, (1970).

[2] T. Ogawa, Optical crystal (in Japanese), Syokabo Publishing, (1983).

[3] Y. Doi, Polarization and Optical crystal (in Japanese), Kyoritsu Shuppan, (1975) ISBN4-3200-3101-6.

[4] W. Koechner, Thermal Lensing in A Nd: YAG Laser Rod, Appl. Opt., 9, (11), pp.2548-2553, (1970).

[5] T. Ogawa, Fundamentals on Crystal Technology (in Japanese), Shokabo Publishing (1998) ISBN4-7853-2509-7.
