Study on the Application of the Combined Prediction Modeling Method to Thermal Error Modeling on NC Machine Tools

Abstract:

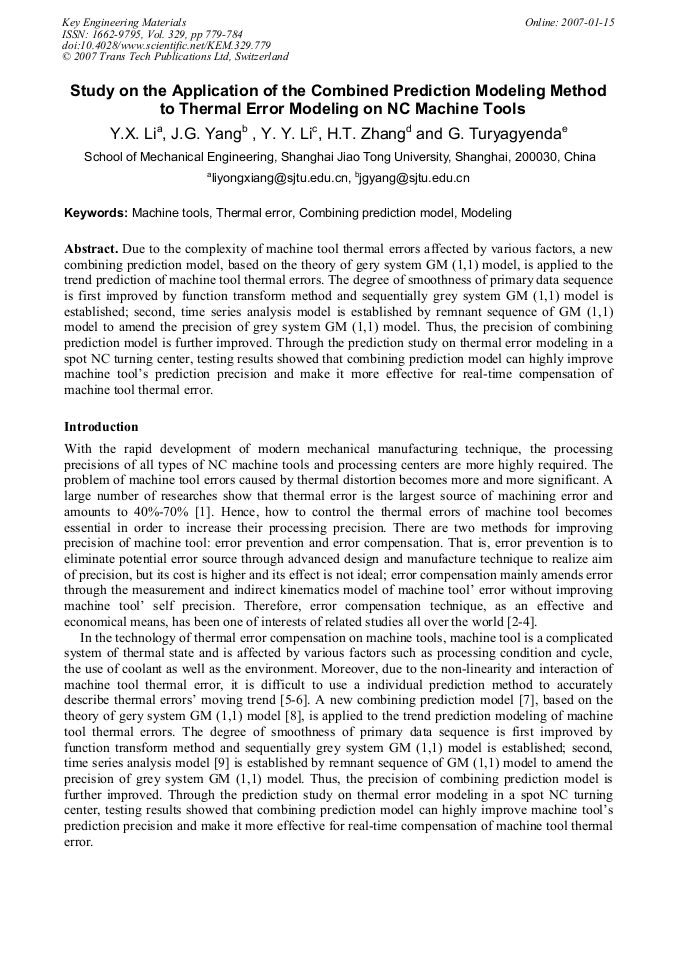

Article Preview

Due to the complexity of machine tool thermal errors affected by various factors, a new combining prediction model, based on the theory of gery system GM (1,1) model, is applied to the trend prediction of machine tool thermal errors. The degree of smoothness of primary data sequence is first improved by function transform method and sequentially grey system GM (1,1) model is established; second, time series analysis model is established by remnant sequence of GM (1,1) model to amend the precision of grey system GM (1,1) model. Thus, the precision of combining prediction model is further improved. Through the prediction study on thermal error modeling in a spot NC turning center, testing results showed that combining prediction model can highly improve machine tool’s prediction precision and make it more effective for real-time compensation of machine tool thermal error.

Info:

Periodical:

Edited by:

Dongming Guo, Tsunemoto Kuriyagawa, Jun Wang and Jun’ichi Tamaki

Pages:

779-784

Citation:

Y.X. Li et al., "Study on the Application of the Combined Prediction Modeling Method to Thermal Error Modeling on NC Machine Tools", Key Engineering Materials, Vol. 329, pp. 779-784, 2007

Online since:

January 2007

Export:

Price:

$38.00

[1] J. Ying, Z.C. Cheng: Mechanical Science and Technology, Vol. 17(1998), pp.623-625 (Chinese).

[2] J. Ni: China Mechanical Engineering, Vol8(1997), pp.29-33 (Chinese).

[3] YANG S, YUAN J, NI J: Journal of Manufacturing Systems, Vol15(1996), pp.113-124.

[4] HONG Yang, NI J: Journal of Manufacturing Science and Engineering, Vol125(2003), pp.245-254.

[5] J. Yu: Aviation Precision Manufacturing Technology, Vol. 40(2004), p.37(Chinese).

[6] Y.Q. Ren: Applied research on high-efficiency measurement, modeling and compensation for errors on NC machine tools(Ph.D. Shanghai Jiao Tong University 2004)(Chinese).

[7] Y.X. Luo, L.T. Zhang and M. Li: Grey system theory and application in the mechanical engineering(National University of Defense Technology Press, Changsha2001)(Chinese).

[8] Y.L. Pan and S.X. Zheng: Cryogenics and Superconductivity, Vol. 30(2002), p.65(Chinese).

[9] D.C. Tong and D.H. Zhang: Time series and engineering application (Shanghai Jiao Tong University Press, China 1990).

[10] Z.M. Yang and C.B. Zhang: Transactions of the Chinese Society of Agricultural Machinery, Vol31(2000), pp.92-95 (Chinese).
