Basic Properties of Coolant Supply Using a Coolant Flow Guided Flexible Sheet

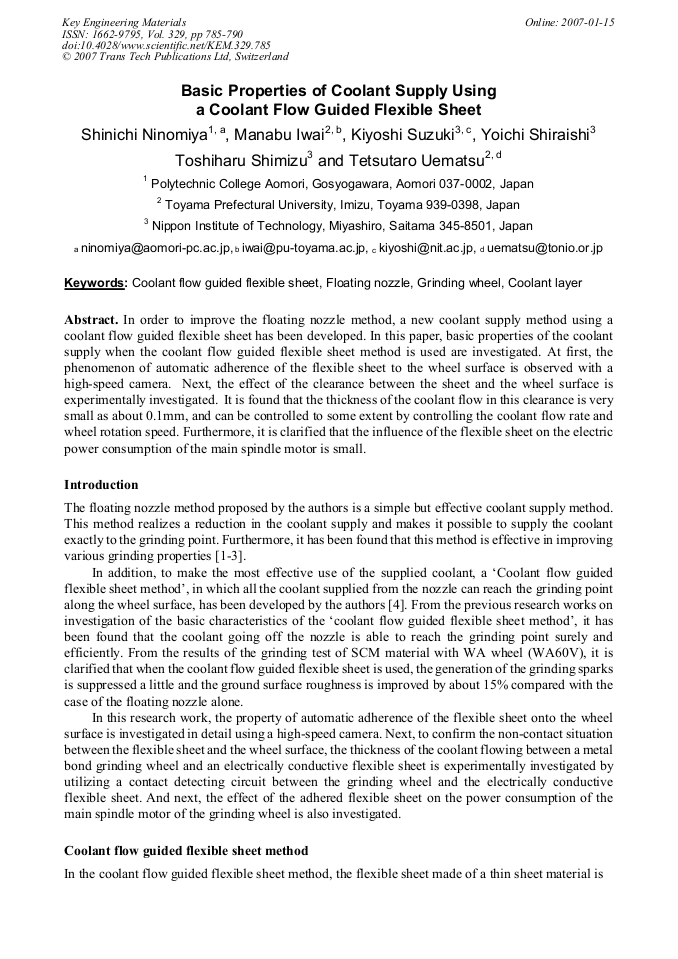

Article Preview

Abstract:

In order to improve the floating nozzle method, a new coolant supply method using a coolant flow guided flexible sheet has been developed. In this paper, basic properties of the coolant supply when the coolant flow guided flexible sheet method is used are investigated. At first, the phenomenon of automatic adherence of the flexible sheet to the wheel surface is observed with a high-speed camera. Next, the effect of the clearance between the sheet and the wheel surface is experimentally investigated. It is found that the thickness of the coolant flow in this clearance is very small as about 0.1mm, and can be controlled to some extent by controlling the coolant flow rate and wheel rotation speed. Furthermore, it is clarified that the influence of the flexible sheet on the electric power consumption of the main spindle motor is small.

You might also be interested in these eBooks
Advances in Abrasive Technology IX View Preview

Info:

Periodical:

Key Engineering Materials (Volume 329)

Pages:

785-790

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.329.785

Citation:

Cite this paper

Online since:

January 2007

Authors:

Shinichi Ninomiya, Manabu Iwai, Kiyoshi Suzuki, Yoichi Shiraishi, Toshiharu Shimizu, Tetsutaro Uematsu

Keywords:

Coolant Flow Guided Flexible Sheet, Coolant Layer, Floating Nozzle, Grinding Wheel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] S. Ninomiya, M. Iwai, T. Uematsu, K. Suzuki and R. Mukai: Effect of Floating Nozzle in Grinding Mild Steel with Vitrified CBN Wheel, Key Engineering Materials, Vol.257-258, Advances in Abrasive Technology 6 (2004), pp.315-320.

DOI: 10.4028/www.scientific.net/kem.257-258.315

Google Scholar

[2] M. Iwai, S. Ninomiya, T. Uematsu, K. Suzuki: Performance of Floating Nozzle on Grinding of Glass Edge for Flat Panel Display, Key Engineering Materials, Vol.257-258, Advances in Abrasive Technology 6 (2004), pp.321-326.

DOI: 10.4028/www.scientific.net/kem.257-258.321

Google Scholar

[3] K. Suzuki, S. Ninomiya, M. Iwai, T. Uematsu and R. Mukai: Performance of Floating Nozzle in Various Grinding Operations, Proc. of the seventh ISAAT, Advances in Abrasive Technology 7 (2004), pp.345-349.

Google Scholar

[4] K. Suzuki, S. Ninomiya, M. Iwai, Y. Shishido and T. Uematsu: A New Coolant Supply Method using a Coolant Flow Guided Flexible Sheet Attracted to a Wheel Surface, Key Engineering Materials, Vol.291-292, Advances in Abrasive Technology 8 (2005), pp.227-232

Google Scholar
