Effect of Ca/P Molar Ratio and Heat Treatment on Thermal Decomposition and Reconstitution of Hydroxyapatite


Article Preview

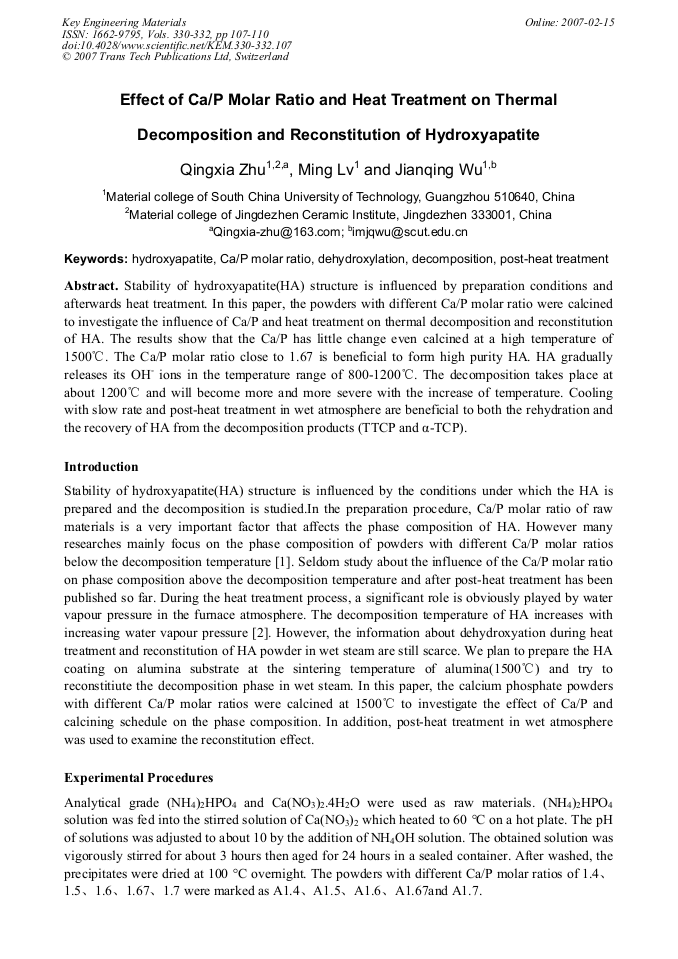

Stability of hydroxyapatite(HA) structure is influenced by preparation conditions and afterwards heat treatment. In this paper, the powders with different Ca/P molar ratio were calcined to investigate the influence of Ca/P and heat treatment on thermal decomposition and reconstitution of HA. The results show that the Ca/P has little change even calcined at a high temperature of 1500°C. The Ca/P molar ratio close to 1.67 is beneficial to form high purity HA. HA gradually releases its OH- ions in the temperature range of 800-1200°C. The decomposition takes place at about 1200°C and will become more and more severe with the increase of temperature. Cooling with slow rate and post-heat treatment in wet atmosphere are beneficial to both the rehydration and the recovery of HA from the decomposition products (TTCP and α-TCP).



Key Engineering Materials (Volumes 330-332)

Main Theme:

Edited by:

Xingdong Zhang, Xudong Li, Hongsong Fan, Xuanyong Liu




Q. X. Zhu et al., "Effect of Ca/P Molar Ratio and Heat Treatment on Thermal Decomposition and Reconstitution of Hydroxyapatite", Key Engineering Materials, Vols. 330-332, pp. 107-110, 2007

Online since:

February 2007




[1] Kannan. S, Rocha.J. G, Ventura J.M. G: Scripta Materialia Vol. 53(2005), p.1259.

[2] Pauchiu E. Wang and T.K. Chaki. J. Mater. Sci: Mater. Med. Vol. 4(1993), p.150.

[3] B.C. Wang, E. Chang, T.M. Lee and C.Y. Yang: J Biomed Mater Res Vol. 29(1995), p.1483.

[4] C.F. Feng, K.A. Khor, E.J. Liu and P. Cheang: Scripta mater Vol. 42(2000), p.103.

[5] P. Frayssinet, F. Tourenne, N. Rouquet, P. Conte: J. Mater. Sci: Mater Med, Vol. 5(1994), p.11.

[6] J. Zhou, X. Zhang, J. Chen, S. Zeng, K. De Groot:J. Mater. Sci: Mater. Med Vol. 4 (1993), p.83.

[7] A. Krajewski, A. Ravaglioli: Bioceramics Vol. 5(1984), p.105.

[8] Chun-Jen Liao, Feng-Huei Lin, Ko-Shao Chen: Biomaterials Vol. 20(1999), p.1807.

[9] A. Rapacz-Kmita, A. S ´ lo´sarczyk, Z. Paszkiewicz.J. Mol. Struct, Vol. 704 (2004), p.333.

[10] Driessens, F. C. M.; Woltgens, J. H. M.: Bull. Soc. Chim. Belg Vol. 93(1984), p.161.
