Electrospun PLLA/MWNTs/HA Hybrid Nanofiber Scaffolds and Their Potential in Dental Tissue Engineering

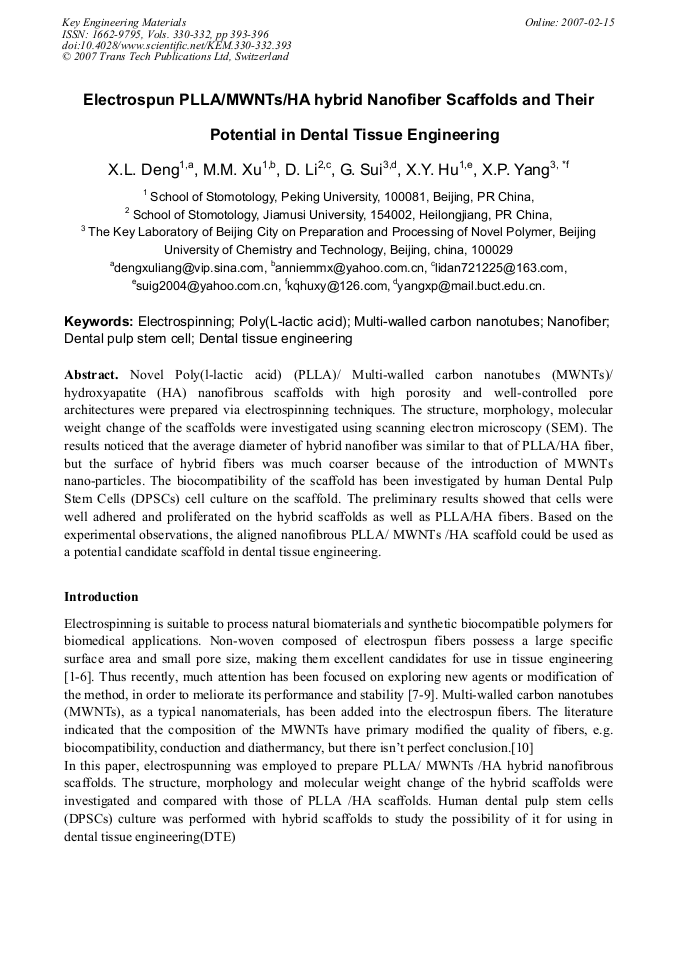

Article Preview

Novel Poly(l-lactic acid) (PLLA)/ Multi-walled carbon nanotubes (MWNTs)/ hydroxyapatite (HA) nanofibrous scaffolds with high porosity and well-controlled pore architectures were prepared via electrospinning techniques. The structure, morphology, molecular weight change of the scaffolds were investigated using scanning electron microscopy (SEM). The results noticed that the average diameter of hybrid nanofiber was similar to that of PLLA/HA fiber, but the surface of hybrid fibers was much coarser because of the introduction of MWNTs nano-particles. The biocompatibility of the scaffold has been investigated by human Dental Pulp Stem Cells (DPSCs) cell culture on the scaffold. The preliminary results showed that cells were well adhered and proliferated on the hybrid scaffolds as well as PLLA/HA fibers. Based on the experimental observations, the aligned nanofibrous PLLA/ MWNTs /HA scaffold could be used as a potential candidate scaffold in dental tissue engineering.



Key Engineering Materials (Volumes 330-332)

Main Theme:

Edited by:

Xingdong Zhang, Xudong Li, Hongsong Fan, Xuanyong Liu




X. L. Deng et al., "Electrospun PLLA/MWNTs/HA Hybrid Nanofiber Scaffolds and Their Potential in Dental Tissue Engineering", Key Engineering Materials, Vols. 330-332, pp. 393-396, 2007

Online since:

February 2007




[1] Y. K Luu, K. Kim, B. S. Hsiao, B. Chu and M. Hadjiargyrou: J Control Release 89(2003), p.341.

[2] H. Yoshimoto, Y. M. Shin, H. Terai and J. P. Vacanti: Biomaterials 24(2003), p. (2077).

[3] X. Zong, S. Ran, D. Fang, B. S. Hsiao and B. Chu: Polymer 44(2003), p.4959.

[4] S. R. Bhattarai, N. Bhattarai, H. K. Yi, P. H. Hwang, D. I. Cha and H. Y. Kim: Biomaterials 25(2004), p.2595.

[5] J. M. Deitzel, J. Kleinmeyer, D. Harris and T. N. C. Beck: Polymer 42(2001), p.8163.

[6] J. A. Hubbell: Curr Opin Biotechnol Vol. 14(2003), p.551.

[7] F. Chen, Z. C. Wang, and C. J. Lin: Materials Letters 57(2002), p.858.

[8] T. Kasuga, H. Maeda, K. Kato, M. Nogami, K. Hata and M. Ueda: Biomaterials 24(2003), p.3247.

[9] X. Deng, J. Hao, and C. Wang: Biomaterials 22(2001), p.2867.

[10] X. Tong, X. He, and H. Cheng: New Carbon Materials, Vol. 19 (2004), p.261.

[11] H. Gong, X. Yang: Acta polymerica sinica, 2(2005), p.297.

[12] Q. Wei, X. Yang. New carbon materials., 20: 1(2005): p.1.

[13] F. Yang, R. Murugan, S. Ramakrishna, X. Wang, Y.X. Ma, S. Wang. Biomaterials 25(2004): p.1891.
