Highly Bioactive Porous Composite Scaffolds of Bovine Hydroxyapatite (BHA-Ti, BHA-TiO2, BHA-Li2O)

Abstract:

Article Preview

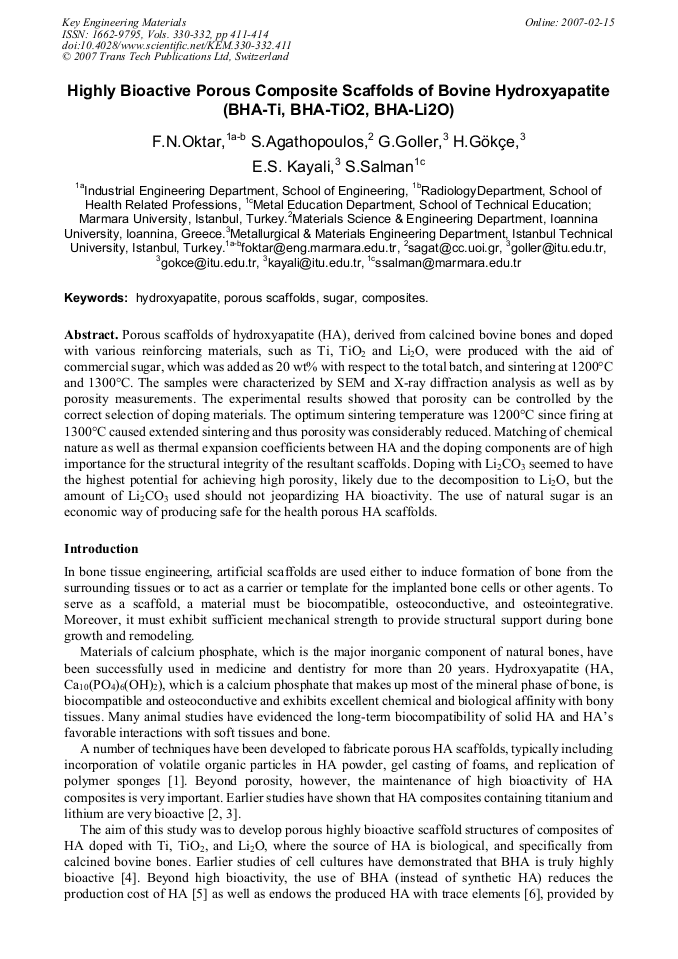

Porous scaffolds of hydroxyapatite (HA), derived from calcined bovine bones and doped with various reinforcing materials, such as Ti, TiO2 and Li2O, were produced with the aid of commercial sugar, which was added as 20 wt% with respect to the total batch, and sintering at 1200°C and 1300°C. The samples were characterized by SEM and X-ray diffraction analysis as well as by porosity measurements. The experimental results showed that porosity can be controlled by the correct selection of doping materials. The optimum sintering temperature was 1200°C since firing at 1300°C caused extended sintering and thus porosity was considerably reduced. Matching of chemical nature as well as thermal expansion coefficients between HA and the doping components are of high importance for the structural integrity of the resultant scaffolds. Doping with Li2CO3 seemed to have the highest potential for achieving high porosity, likely due to the decomposition to Li2O, but the amount of Li2CO3 used should not jeopardizing HA bioactivity. The use of natural sugar is an economic way of producing safe for the health porous HA scaffolds.

Info:

Periodical:

Key Engineering Materials (Volumes 330-332)

Main Theme:

Edited by:

Xingdong Zhang, Xudong Li, Hongsong Fan, Xuanyong Liu

Pages:

411-414

DOI:

10.4028/www.scientific.net/KEM.330-332.411

Citation:

F. N. Oktar et al., "Highly Bioactive Porous Composite Scaffolds of Bovine Hydroxyapatite (BHA-Ti, BHA-TiO2, BHA-Li2O)", Key Engineering Materials, Vols. 330-332, pp. 411-414, 2007

Online since:

February 2007

Export:

Price:

$35.00

[1] H.R. Ramay and M. Zhang: Biomat Vol. 24 (2003), p.3293.

[2] P. Valeiro and at al.: Key Eng Mater Vol. 309-311 (2006), p.1121.

[3] P. Valeiro and et al.: Key Eng Mater Vol. 254-256 (2004), p.777.

[4] P. Valeiro and et al.: Key Eng Mater Vol. 254-256 (2004), p.837.

[5] L.S. Ozyegin and et al.: Mater Lett Vol. 58 (2004), p.2605.

[6] G. Goller and et al.: J Sol-Gel Sci Techn Vol. 37 (2006), p.111.

[7] G. Goller and et al.: Mater Lett Vol. 58 (2004), p.2599.

[8] S. Goren and et al.: Key Eng Mater Vol. 264-268 (2004), p. (1949).

[9] L.S. Ozyegin and et al.: Key Eng Mater Vol. 309-311 (2006), p.359.

[10] F.N. Oktar: Mater Lett Vol. 60 (2006), p.2207.

[11] F.N. Oktar and et al.: Key Eng Mater Vol. 309-311 (2006), p.49.

[12] D.U. Tulyaganov and et al.: J Am Ceram Soc., 89 (2006), p.292.

[13] US Patent Artificial bone of tooth prosthesis material, 3, 787, 800 Jan 29, (1974).

[14] M. H. Prado da Silva and et al.: J of Non-Crys Sol Vol. 304 (2002), p.286.

In order to see related information, you need to Login.
