Preparation and Characterization of n-HA/PA66/CS Biocomposite

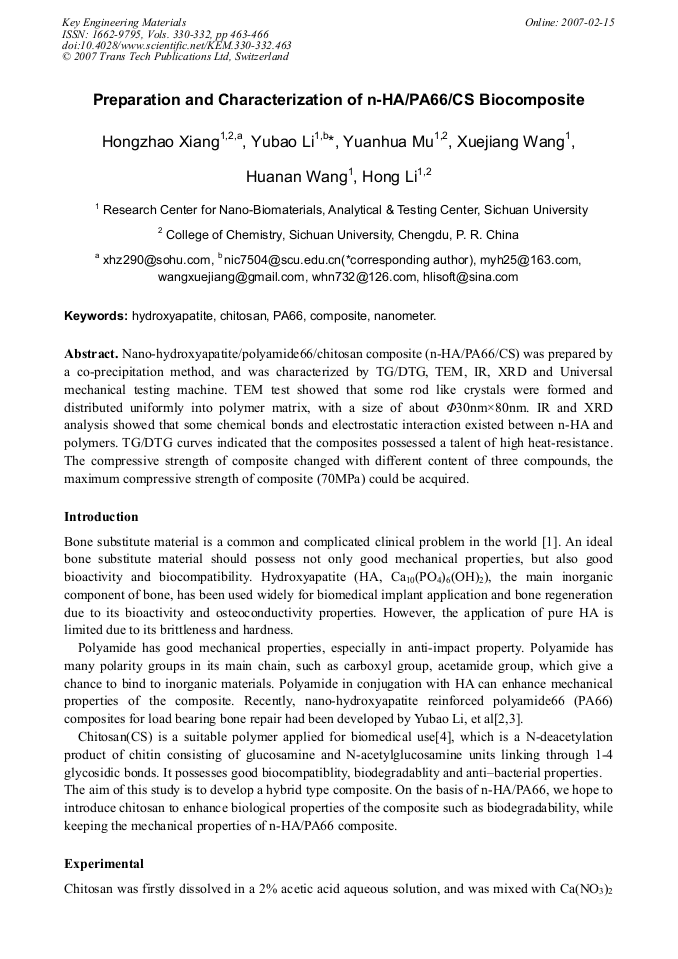

Article Preview

Nano-hydroxyapatite/polyamide66/chitosan composite (n-HA/PA66/CS) was prepared by a co-precipitation method, and was characterized by TG/DTG, TEM, IR, XRD and Universal mechanical testing machine. TEM test showed that some rod like crystals were formed and distributed uniformly into polymer matrix, with a size of about Φ30nm×80nm. IR and XRD analysis showed that some chemical bonds and electrostatic interaction existed between n-HA and polymers. TG/DTG curves indicated that the composites possessed a talent of high heat-resistance. The compressive strength of composite changed with different content of three compounds, the maximum compressive strength of composite (70MPa) could be acquired.



Key Engineering Materials (Volumes 330-332)

Main Theme:

Edited by:

Xingdong Zhang, Xudong Li, Hongsong Fan, Xuanyong Liu




H. Z. Xiang et al., "Preparation and Characterization of n-HA/PA66/CS Biocomposite", Key Engineering Materials, Vols. 330-332, pp. 463-466, 2007

Online since:

February 2007




[1] R. Murugan, S. Ramakrishna: Biomaterials Vol. 25(2004), p.3829.

[2] Wang Xuejiang, Li Yubao, Wei Jie and Klass de Groot: Biomaterials Vol. 23(2002), p.4787.


[3] Wei Jie, Li Yubao: Eur. Polym J. Vol. 40(2004), p.509.

[4] Pamela J, VandeVord and Howard W.T. Matthew: J. Bio Mater Res. Vol. 59(2001), p.585.

[5] Kozo Ogawa, Toshifumi Yui and Kenji Okuyama: Int. J. Bio Macro. Vol. 34(2004), p.1.
