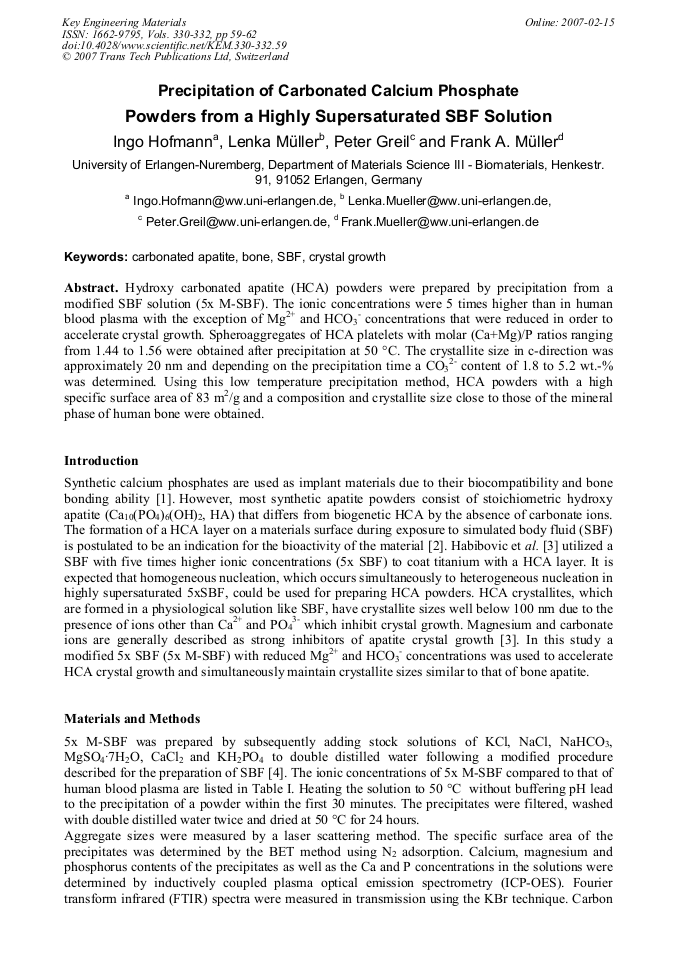

Precipitation of Carbonated Calcium Phosphate Powders from a Highly Supersaturated SBF Solution


Article Preview

Hydroxy carbonated apatite (HCA) powders were prepared by precipitation from a modified SBF solution (5x M-SBF). The ionic concentrations were 5 times higher than in human blood plasma with the exception of Mg2+ and HCO3 - concentrations that were reduced in order to accelerate crystal growth. Spheroaggregates of HCA platelets with molar (Ca+Mg)/P ratios ranging from 1.44 to 1.56 were obtained after precipitation at 50 °C. The crystallite size in c-direction was approximately 20 nm and depending on the precipitation time a CO3 2- content of 1.8 to 5.2 wt.-% was determined. Using this low temperature precipitation method, HCA powders with a high specific surface area of 83 m2/g and a composition and crystallite size close to those of the mineral phase of human bone were obtained.



Key Engineering Materials (Volumes 330-332)

Main Theme:

Edited by:

Xingdong Zhang, Xudong Li, Hongsong Fan, Xuanyong Liu




I. Hofmann et al., "Precipitation of Carbonated Calcium Phosphate Powders from a Highly Supersaturated SBF Solution", Key Engineering Materials, Vols. 330-332, pp. 59-62, 2007

Online since:

February 2007




[1] M. Vallet-Regi: J. Chem. Soc. Dalton Trans. Vol. 2 (2001), p.97.

[2] T. Kokubo: J. Non-Cryst. Solids Vol. 120 (1990), p.138.

[3] P. Habibovic, Florence Barrère, C. A. van Blitterswijk, K. de Groot and P. Layrolle: J. Am. Ceram. Soc. Vol. 85 (2002), p.517.

[4] L. Müller and F. A. Müller: Acta Biomater. Vol. 2 (2006), p.181.

[5] P. Scherrer: Göttinger Nachrichten Vol. 2 (1918), p.98.

[6] J. C. Elliott: Structure and Chemistry of the Apatites and Other Calcium Orthophosphates (Elsevier Science B.V., Netherlands 1994).

[7] M. Vallet-Regi and J. M. González-Calbet: Solid State Chem. Vol. 32 (2004), p.1.

[8] R. Z. LeGeros and J. P. LeGeros: J. Dent. Res. Vol. 62 (1983), p.259.

[9] V. Zaichick and M. Tzaphlidou: Appl. Radiat. Isotopes Vol. 58 (2003), p.623.

[10] R. Z. LeGeros and M. S. Tung: Caries Res. Vol. 17 (1983), p.419.
