Quantitative Assessment of Crack-Tip Stress Field in Semiconductor GaN Using Electrostimulated Piezo-Spectroscopy

Abstract:

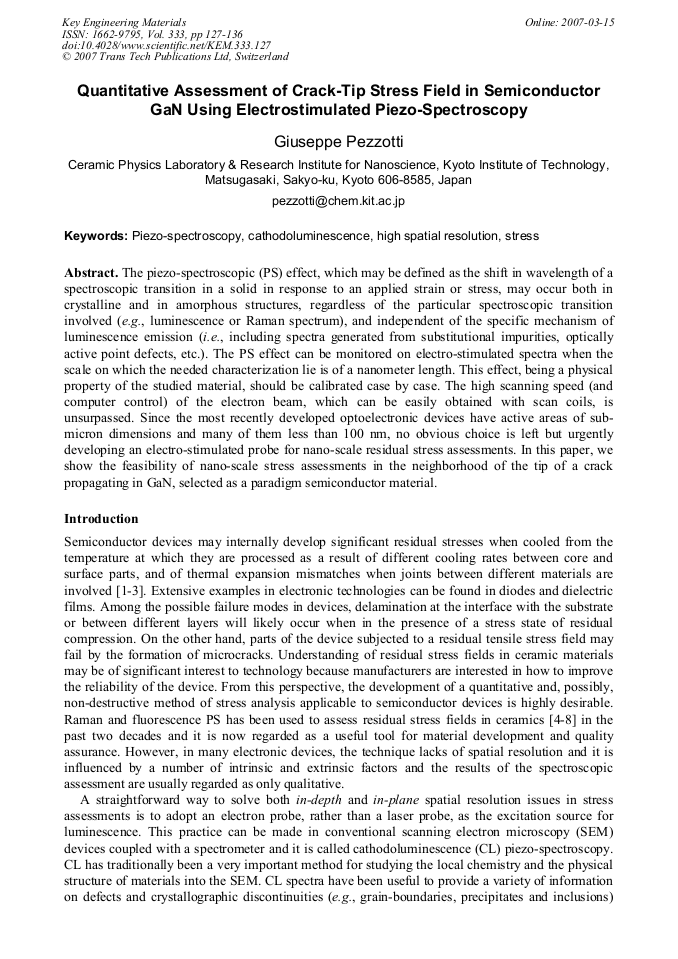

Article Preview

The piezo-spectroscopic (PS) effect, which may be defined as the shift in wavelength of a spectroscopic transition in a solid in response to an applied strain or stress, may occur both in crystalline and in amorphous structures, regardless of the particular spectroscopic transition involved (e.g., luminescence or Raman spectrum), and independent of the specific mechanism of luminescence emission (i.e., including spectra generated from substitutional impurities, optically active point defects, etc.). The PS effect can be monitored on electro-stimulated spectra when the scale on which the needed characterization lie is of a nanometer length. This effect, being a physical property of the studied material, should be calibrated case by case. The high scanning speed (and computer control) of the electron beam, which can be easily obtained with scan coils, is unsurpassed. Since the most recently developed optoelectronic devices have active areas of submicron dimensions and many of them less than 100 nm, no obvious choice is left but urgently developing an electro-stimulated probe for nano-scale residual stress assessments. In this paper, we show the feasibility of nano-scale stress assessments in the neighborhood of the tip of a crack propagating in GaN, selected as a paradigm semiconductor material.

Info:

Periodical:

Edited by:

Marc Anglada et al.

Pages:

127-136

DOI:

10.4028/www.scientific.net/KEM.333.127

Citation:

G. Pezzotti "Quantitative Assessment of Crack-Tip Stress Field in Semiconductor GaN Using Electrostimulated Piezo-Spectroscopy", Key Engineering Materials, Vol. 333, pp. 127-136, 2007

Online since:

March 2007

Export:

Price:

$35.00

[1] A. N. Itakura, T. Narushima, M. Kitajima, K. Teraishi, A. Yamada and A. Miyamoto: Appl. Surf. Sci. Vol. 159 (2000), p.62.

[2] A. Leto, A. Loreto, T. Hosokawa, Y. Yabuuchi, T. Valente, and G. Pezzotti: New Frontiers of Process Science and Engineering in Advanced Materials (PSEA '04) Part 2, edited by High Temperature Society of Japan publisher, Kyoto, (2004).

[3] S. Fuke, K. Sano, K. Kuwahara and Y. Takano: J. Appl. Phys. Vol. 77 (1995), p.420.

[4] L. Colombi Ciacchi, G. Gregori, V. Lughi, et al.: Recent Res. Develop. Appl. Spectrosc. Vol. 2 (1999), p.243.

[5] G. Pezzotti: Composites Sci. Tech. Vol. 59 (1999), p.821.

[6] E. Gheeraert, A. Deneuville and A. M. Bonnot: Diamond and Related Materials, Vol. 1 (1992), p.525.

[7] H. Mohrbacher, K. Van Acker, B. Blanpain, P. Van Houtte and J-P. Celis: J. Mater. Res. Vol. 11 (1996), p.1776.

[8] Q. Ma, and D. R. Clarke: J. Am. Ceram. Soc. Vol. 77 (1994), p.298.

[9] G. Koschek and E. Kubalek: J. Am. Ceram. Soc. Vol 68 (1985), p.582.

[10] B. G. Yacobi and D. B. Holt: J. Appl. Phys. Vol. 59 (1986), p. R1-R24.

[11] A. Gustafsson, M. -E. Pistol, L. Montelius and L. Samuelson: J. Appl. Phys. Vol. 84 (1986), p.1715.

[12] G. Pezzotti: Microscopy & Analysis, Vol. 33 (2003), p.5.

[13] D. K. Shetty, A. R. Rosenfield, P. Mcguire, G. K. Bansal and W. H. Duckworth: Am. Ceram. Soc. Bull. Vol. 59 (1980), p.1193.

[14] K. Kanaya and S. Okayama: J. Phys. D. Appl. Phys. Vol. 5 (1972), p.43.

[15] L. Grabner: J. Appl. Phys. Vol. 49 (1978), p.582.

[16] S. Bloom: J. Phys. Chem. Solids Vol. 32 (1971), p. (2027).

[17] T. Fett: Eng. Fract. Mech. Vol. 52 (1995), p.773.
