Progressive Failure Analysis of Unidirectional-Fabric Laminated Composite Joints under Pin-Loading

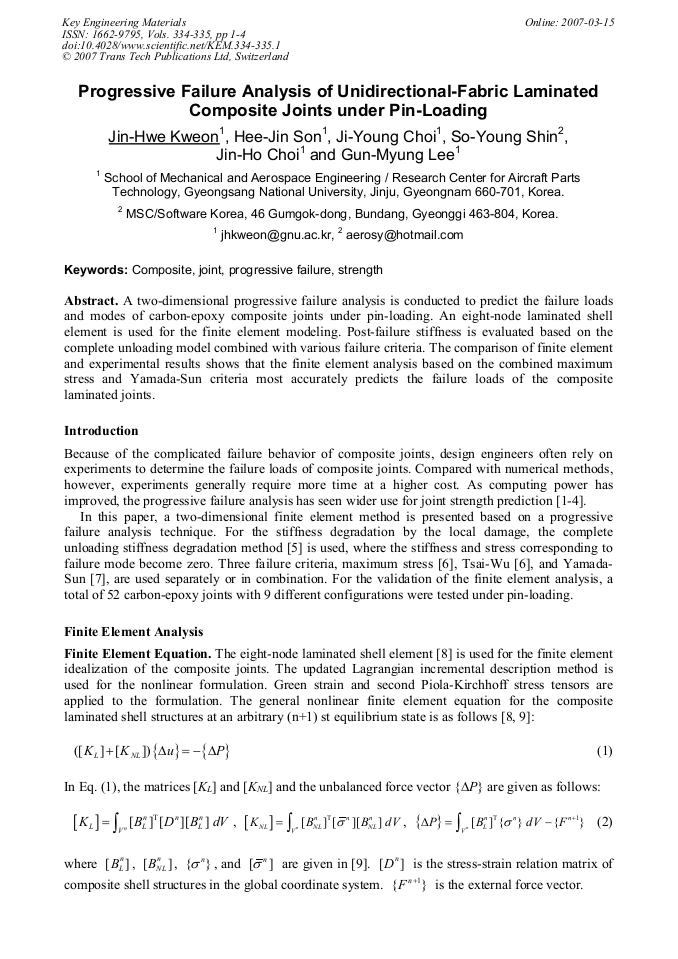

Article Preview

A two-dimensional progressive failure analysis is conducted to predict the failure loads and modes of carbon-epoxy composite joints under pin-loading. An eight-node laminated shell element is used for the finite element modeling. Post-failure stiffness is evaluated based on the complete unloading model combined with various failure criteria. The comparison of finite element and experimental results shows that the finite element analysis based on the combined maximum stress and Yamada-Sun criteria most accurately predicts the failure loads of the composite laminated joints.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




J. H. Kweon et al., "Progressive Failure Analysis of Unidirectional-Fabric Laminated Composite Joints under Pin-Loading", Key Engineering Materials, Vols. 334-335, pp. 1-4, 2007

Online since:

March 2007




[1] F.K. Chang and K.Y. Chang: A Progressive Damage Model for Laminated Composite Containing Stress Concentration, J. of Composite Materials 21 (1987), pp.834-855.


[2] S.C. Tan: A Progressive Failure Model for Composite Laminates Containing Openings, J. of Composite Materials 25 (1991), pp.556-577.


[3] C.H. Hung and F.K. Chang: Bearing Failure of Bolted Composite Joints. Part �: Model and Verification, J. of Composite Materials 30 (1996), pp.1359-1400.


[4] P.P. Camanho and F.L. Matthews: A Progressive Damage Model for Mechanically Fastened Joints in Composites, J. of Composite Materials 33 (1999), pp.2248-2280.


[5] S.C. Chou, O. Orringer, and J.H. Rainey: Post-Failure Behavior of Laminates. I-No Stress Concentration, J. of Composite Materials 10 (1976), pp.371-381.


[6] R.M. Jones: Mechanics of Composite Materials (Taylor and Francis, New York 1999).

[7] S.E. Yamada and C.T. Sun: Analysis of Laminate Strength and Its Distribution, J. of Composite Materials 12 (1978), pp.275-284.

[8] J.H. Kweon, C.S. Hong, and I.C. Lee: Postbuckling Compressive Strength of Graphite/Epoxy Laminated Cylindrical Panels Loaded in Compression, AIAA J. 33 (1995), pp.217-222.


[9] K.J. Bathe: Finite Element Procedures (Prentice-Hall, London 1996).
