Development of Bio-Mimetic Patterned IPMC Actuators with Multiple Electrodes

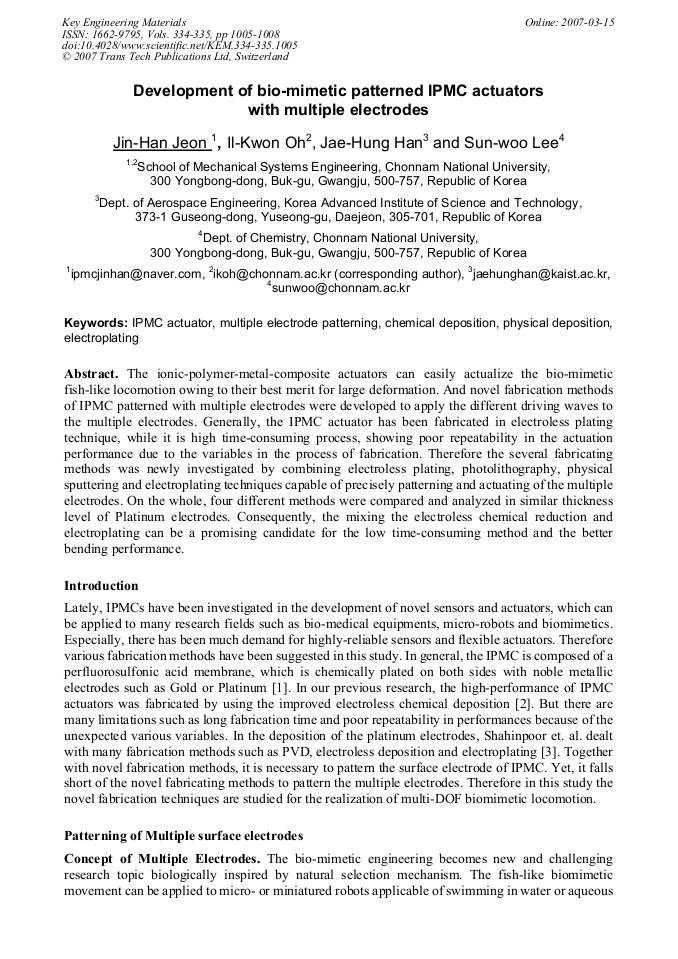

Article Preview

The ionic-polymer-metal-composite actuators can easily actualize the bio-mimetic fish-like locomotion owing to their best merit for large deformation. And novel fabrication methods of IPMC patterned with multiple electrodes were developed to apply the different driving waves to the multiple electrodes. Generally, the IPMC actuator has been fabricated in electroless plating technique, while it is high time-consuming process, showing poor repeatability in the actuation performance due to the variables in the process of fabrication. Therefore the several fabricating methods was newly investigated by combining electroless plating, photolithography, physical sputtering and electroplating techniques capable of precisely patterning and actuating of the multiple electrodes. On the whole, four different methods were compared and analyzed in similar thickness level of Platinum electrodes. Consequently, the mixing the electroless chemical reduction and electroplating can be a promising candidate for the low time-consuming method and the better bending performance.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




J. H. Jeon et al., "Development of Bio-Mimetic Patterned IPMC Actuators with Multiple Electrodes", Key Engineering Materials, Vols. 334-335, pp. 1005-1008, 2007

Online since:

March 2007




[1] K. Oguro, K. Asaka and H. Takenaka: US Patent Specification 5, 268, 082, (1993).

[2] I. K. Oh and J. H. Jeon: ANDE2005 (2005), p.239.

[3] K. Salehpoor, M. Shahinpoor and A. Razani: Proc. of the SPIE, 3330 (1998) p.50.

[4] M. Sfakiotakis, D.M. Lane and J.B.C. Davies: IEEE Journal of Oceanic Engineering, 24 (1997), p.237.

[5] Technical Sheet, 3M UHMW Polyethylene Tape 5423 (1995).

[6] M.K. Lee and Y.G. Hwang: Applied Chemistry, 8, No. 2 (2004), p.498. (a) (b) (c).
