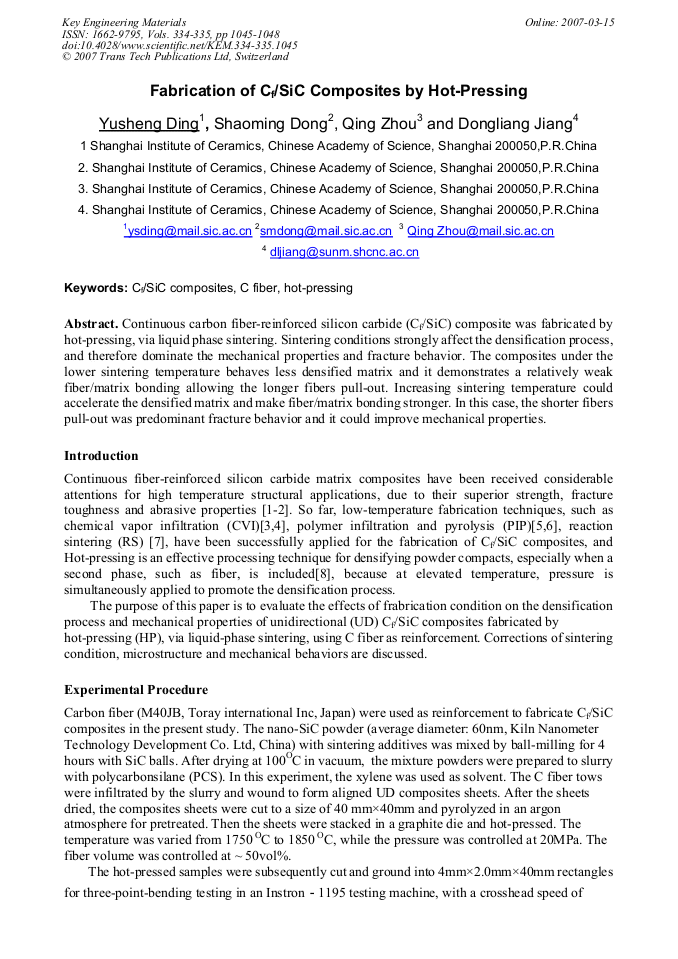

Fabrication of Cf/SiC Composites by Hot-Pressing


Article Preview

Continuous carbon fiber-reinforced silicon carbide (Cf/SiC) composite was fabricated by hot-pressing, via liquid phase sintering. Sintering conditions strongly affect the densification process, and therefore dominate the mechanical properties and fracture behavior. The composites under the lower sintering temperature behaves less densified matrix and it demonstrates a relatively weak fiber/matrix bonding allowing the longer fibers pull-out. Increasing sintering temperature could accelerate the densified matrix and make fiber/matrix bonding stronger. In this case, the shorter fibers pull-out was predominant fracture behavior and it could improve mechanical properties.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




Y. S. Ding et al., "Fabrication of Cf/SiC Composites by Hot-Pressing", Key Engineering Materials, Vols. 334-335, pp. 1045-1048, 2007

Online since:

March 2007




[1] R. Naslain: Comp. Sci. Tech. 64 (2004), p.155.

[2] Hiroshi Kaya: Comp. Sci. Tech. 59 (1999), pp.861-872.

[3] F. Lamouroux, X. Bourrat, R. Naslain: Carbon 33 (4) (1995), p.525.

[4] H. Kim, G.Y. Chung, H.H. Koo and W.H. Baek: Korean J. Chem. Eng. 21(5) (2004), p.929.

[5] S.M. Dong Y. Katoh A. Kohyama, S.T. Schwab, L.L. Snead: Ceram. Inter. 28 (2004), p.899.

[6] G. Ziegler, I. Richer, D. Suttor: Comp. A30 (1999), p.411.

[7] S. Pillee and H. K. Yoon: Inter. J. Modern Phy. B 17 (2003), p.1833.

[8] S.M. Dong, Y. Katoh, A. Kohyama: Ceram. Soc. 23 (2003), p.1223.
