Surface Characteristics of Zirconia-Coated TiO2 and its Phase Transformation

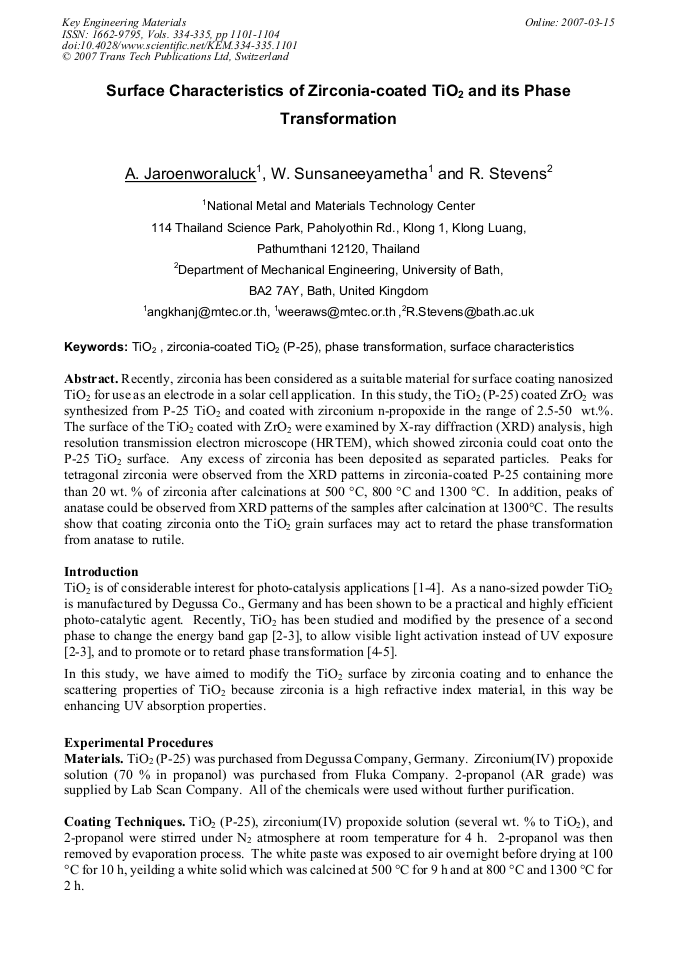

Article Preview

Recently, zirconia has been considered as a suitable material for surface coating nanosized TiO2 for use as an electrode in a solar cell application. In this study, the TiO2 (P-25) coated ZrO2 was synthesized from P-25 TiO2 and coated with zirconium n-propoxide in the range of 2.5-50 wt.%. The surface of the TiO2 coated with ZrO2 were examined by X-ray diffraction (XRD) analysis, high resolution transmission electron microscope (HRTEM), which showed zirconia could coat onto the P-25 TiO2 surface. Any excess of zirconia has been deposited as separated particles. Peaks for tetragonal zirconia were observed from the XRD patterns in zirconia-coated P-25 containing more than 20 wt. % of zirconia after calcinations at 500 °C, 800 °C and 1300 °C. In addition, peaks of anatase could be observed from XRD patterns of the samples after calcination at 1300°C. The results show that coating zirconia onto the TiO2 grain surfaces may act to retard the phase transformation from anatase to rutile.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




A. Jaroenworaluck et al., "Surface Characteristics of Zirconia-Coated TiO2 and its Phase Transformation", Key Engineering Materials, Vols. 334-335, pp. 1101-1104, 2007

Online since:

March 2007




[1] M. Kaneko and I. Okura: Photocatalysis, Science and Technology ( Kodansha , Tokyo 2002).

[2] M. Hirano and K. Matsushima: J. Am Ceram. Soc. 89 (2006), p.110.

[3] H. Liu and L. Gao: J. Am. Ceram. Soc. 89 (2006), p.370.

[4] A. M. Ruiz, A. Cornet and J. R. Morante: Sensors and Actuators B: Chemical 100 (2004), p.256.

[5] H. E. Chao, Y. U. Yun, H. U. Xingfang and A. Larbot: Journal of the European Ceramic Society 2 (2003), p.1457.
