Piezoelectric Materials for Biomedical Applications

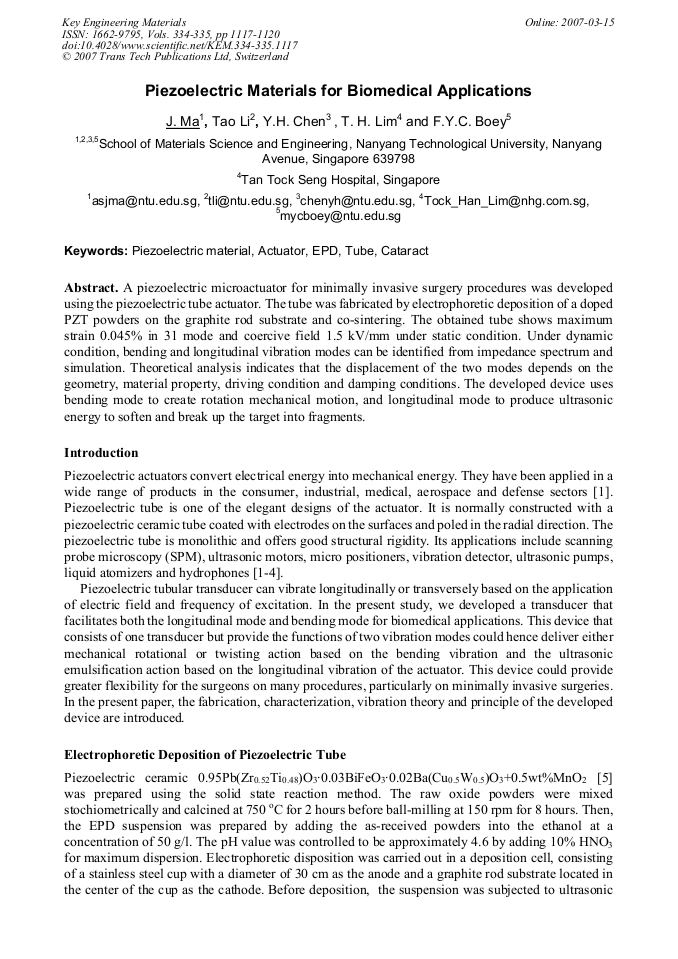

Article Preview

A piezoelectric microactuator for minimally invasive surgery procedures was developed using the piezoelectric tube actuator. The tube was fabricated by electrophoretic deposition of a doped PZT powders on the graphite rod substrate and co-sintering. The obtained tube shows maximum strain 0.045% in 31 mode and coercive field 1.5 kV/mm under static condition. Under dynamic condition, bending and longitudinal vibration modes can be identified from impedance spectrum and simulation. Theoretical analysis indicates that the displacement of the two modes depends on the geometry, material property, driving condition and damping conditions. The developed device uses bending mode to create rotation mechanical motion, and longitudinal mode to produce ultrasonic energy to soften and break up the target into fragments.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




J. Ma et al., "Piezoelectric Materials for Biomedical Applications", Key Engineering Materials, Vols. 334-335, pp. 1117-1120, 2007

Online since:

March 2007




[1] D.J. Jones, S.E. Prasad and J.B. Wallace: Key Engineering Materials 122-124 (1996), p.71.

[2] G. Binning and D.P.E. Smith: Rev. Sci. Instrum. 57 (1986), p.1688.

[3] T. Morita, M. Kurosawa and T. Higuchi: Jpn. J. Appl. Phys. 38 (1999), p.3347.

[4] A. Safari: Mat. Res. Innovat. 2 (1999), p.263.

[5] Y.H. Chen, Tao Li and J. Ma: J. Mater. Sci. 38 (2003), p.2803.

[6] L.E. Cross, S.J. Jang and K. Uchino: Ferroelectrics 23 (1980), p.187.

[7] K. Uchino: Piezoelectric Actuators and Ultrasonic Motors (Kluwer Academic Publishers, Boston 1997).

[8] Tao Li: Development of Piezoelectric Tubes for Micromotor (Nanyang Technological University, Singapore 2004).
