Influence of Cr Particle Size on the Microstructure and Electrical Properties of CuW60Cr15 Composites

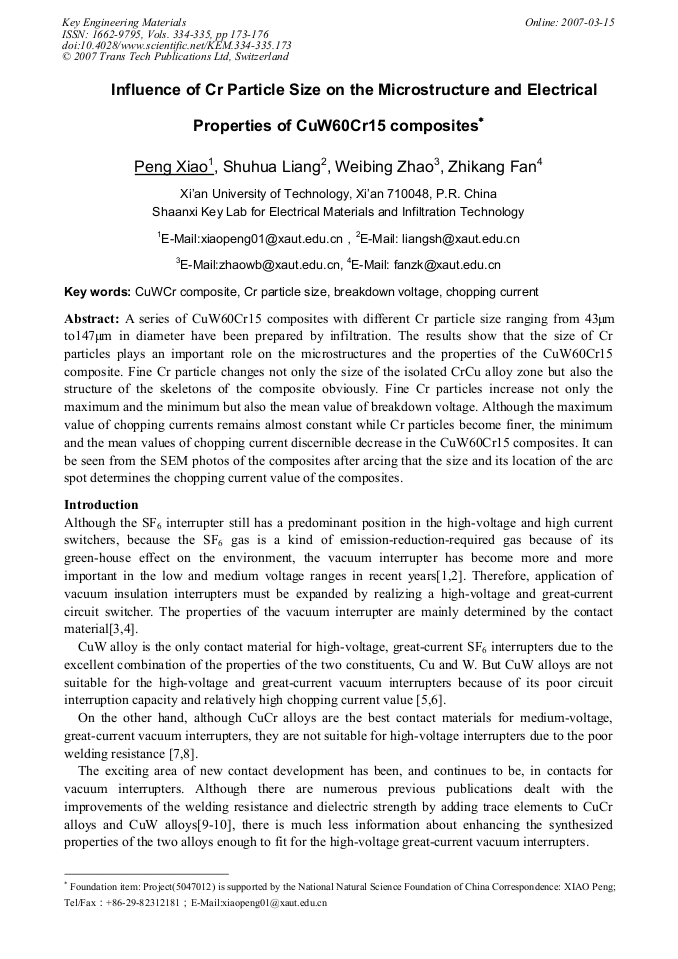

Article Preview

A series of CuW60Cr15 composites with different Cr particle size ranging from 43μm to147μm in diameter have been prepared by infiltration. The results show that the size of Cr particles plays an important role on the microstructures and the properties of the CuW60Cr15 composite. Fine Cr particle changes not only the size of the isolated CrCu alloy zone but also the structure of the skeletons of the composite obviously. Fine Cr particles increase not only the maximum and the minimum but also the mean value of breakdown voltage. Although the maximum value of chopping currents remains almost constant while Cr particles become finer, the minimum and the mean values of chopping current discernible decrease in the CuW60Cr15 composites. It can be seen from the SEM photos of the composites after arcing that the size and its location of the arc spot determines the chopping current value of the composites.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




P. Xiao et al., "Influence of Cr Particle Size on the Microstructure and Electrical Properties of CuW60Cr15 Composites ", Key Engineering Materials, Vols. 334-335, pp. 173-176, 2007

Online since:

March 2007




[1] G. G Lee, G. H Ha., and B. K Kin: Synthesis of high density ultrafine W/Cu composite ally by mechano- themochemical process, Powder Metall. 43(2000), p.79.

DOI: 10.1179/pom.2000.43.1.79

[2] G Paul. Slade, Fellow. Advances in Material development for High Power Vacuum Interrupter Contacts, IEEE Transactions on components Packaging, and Manufacturing technology. 17(1994), pp.96-106.

DOI: 10.1109/95.296374

[3] Zhikang Fan, Shuhua Liang and Xu Xue: Bond strength of WCu/CrCu integrated material. Trans. Nonferrous Met. Soc. China. 11(2001), pp.835-837.

[4] P. Frey, N. Klink, R. Michal and K.E. Saeger: Metallurgical aspect of contact materials for vacuum switching devices. IEEE Trans. Plasma Sci. 17(1989), pp.734-740.

DOI: 10.1109/27.41194

[5] Chengyu Zhang, Yaping Wang, Zhimao Yang, Yong Guo ang Bingjun Ding: Microstructure and properties of vacuum induction melted CuCr25 alloys. 366(2004), pp.289-292.

DOI: 10.1016/j.jallcom.2003.07.001

[6] K. Ozawa, K. Matsumoto, T. Nakanishi, K. Yoshigae, M. Yamazaki and H. Shinohara: Sintered Cu-Cr-Te alloy for the vacuum circuit breaker contact. In Proc. Int. Conf. on Electrical Contacts, Electromechanical Components and their Applications. (1986).

[7] H. Kippenberg: Cr-Cu as a contact material for vacuum interrupters. 13th Int. conf. on Electric Contacts, Zurich. (1986), pp.140-144.

[8] M B Shulman, P G Slade, L D Loud and W Li: Influence of contact geometry and current on effective erosion of Cu-Cr, Ag-Cu, and Ag-Cr vacuum contact materials. IEEE Transactions on components Packaging, and Manufacturing technology, 22(1999).

DOI: 10.1109/6144.796543

[9] ZK Fan, SH Liang, HW Yang and P Xiao: Effects of extrusion on chromium precipitation in Cu-Cr alloy [J]. Trans Nonferrous Met Soc China, 13(2003), pp.267-27.

[10] HW Yang : Study on microstructures and properties of as-cast Cu-Cr alloys [D]. Xi'an: Xi'an University of Technology. (2000), pp.30-40.
