Structural Safety Evaluation of the Hybrid Composite Bodyshell for Korean Tilting Train by a Whole Body Test

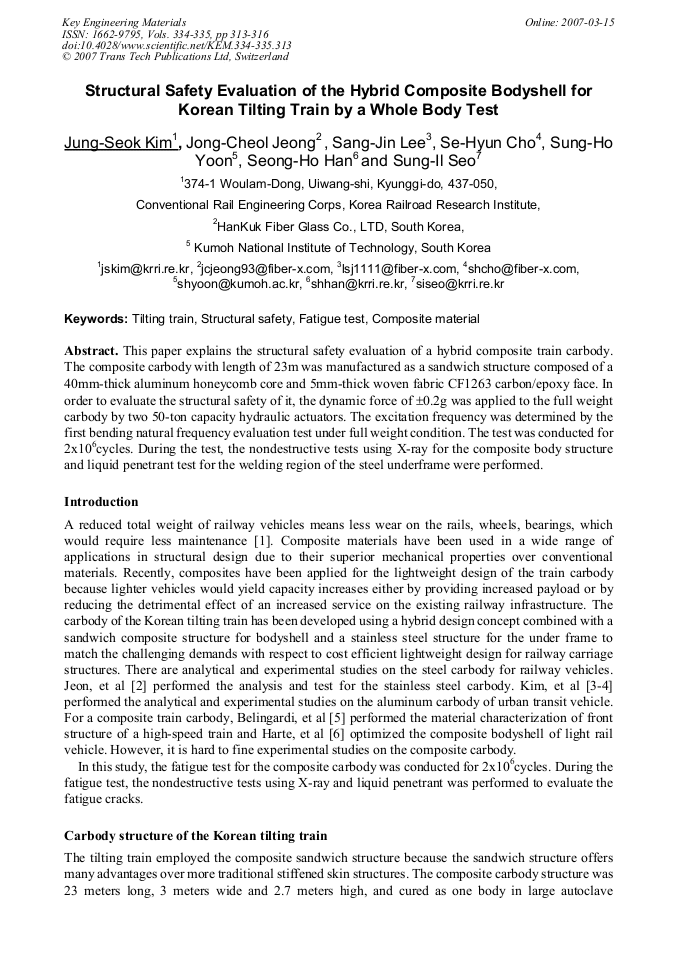

Article Preview

This paper explains the structural safety evaluation of a hybrid composite train carbody. The composite carbody with length of 23m was manufactured as a sandwich structure composed of a 40mm-thick aluminum honeycomb core and 5mm-thick woven fabric CF1263 carbon/epoxy face. In order to evaluate the structural safety of it, the dynamic force of ±0.2g was applied to the full weight carbody by two 50-ton capacity hydraulic actuators. The excitation frequency was determined by the first bending natural frequency evaluation test under full weight condition. The test was conducted for 2x106cycles. During the test, the nondestructive tests using X-ray for the composite body structure and liquid penetrant test for the welding region of the steel underframe were performed.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




J. S. Kim et al., "Structural Safety Evaluation of the Hybrid Composite Bodyshell for Korean Tilting Train by a Whole Body Test", Key Engineering Materials, Vols. 334-335, pp. 313-316, 2007

Online since:

March 2007




[1] Wennhage P. Structural-acoustic Optimization of Sandwich Panels, Report 2001-05 (2001).

[2] Jeon HY, Sung RW. A Study on the Structural Analysis and Test of an Electric Carbody. Journal of the Korean Society of Precision Engineering, 15(1998), p.28 (in Korean).

[3] Kim YS, Park SH, Beak NU, Kim DS. Development on the Aluminum Carbody for Rubber-Tired AGT Vehicle. Proceedings of the 2003 Spring Conference & Annual Meeting of Korean Society of Mechanical Engineering (2003), p.1118 (in Korean).

[4] Yoon, SC, Baik KS, Kwon ST, Kim MY. Structure Analysis of Body Structure for Electric Multiple Unit. Proceedings of the 2004 Autumn Conference & Annual Meeting of Korean Society of Precision Engineering (2004), p.1335 (in Korean).

[5] Belingardi G, Cavtorta MP, Duella R. Material Characterization of a Composite-Foam Sandwich for the Front Structure of a High Speed Train. Composite Structures, 61(2003), p.13.

DOI: 10.1016/s0263-8223(03)00028-x

[6] Harte AM, Mcnamara JF, Roddy ID. A Multilevel Approach to the Optimization of a Composite Light rail Vehicle Bodyshell. Composite Structures, 63(2004), p.447.

DOI: 10.1016/s0263-8223(03)00193-4
