Nano-Structured TiN/TiBN Multilayer Thin Films

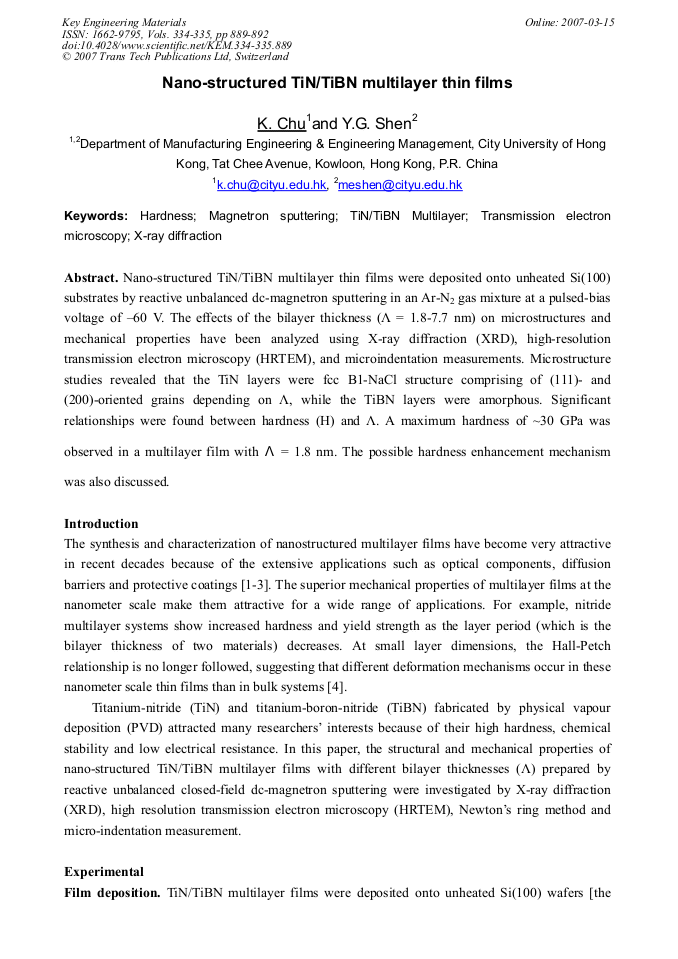

Article Preview

Nano-structured TiN/TiBN multilayer thin films were deposited onto unheated Si(100) substrates by reactive unbalanced dc-magnetron sputtering in an Ar-N2 gas mixture at a pulsed-bias voltage of –60 V. The effects of the bilayer thickness (Λ = 1.8-7.7 nm) on microstructures and mechanical properties have been analyzed using X-ray diffraction (XRD), high-resolution transmission electron microscopy (HRTEM), and microindentation measurements. Microstructure studies revealed that the TiN layers were fcc B1-NaCl structure comprising of (111)- and (200)-oriented grains depending on Λ, while the TiBN layers were amorphous. Significant relationships were found between hardness (H) and Λ. A maximum hardness of ~30 GPa was observed in a multilayer film with  = 1.8 nm. The possible hardness enhancement mechanism was also discussed.



Key Engineering Materials (Volumes 334-335)

Edited by:

J.K. Kim, D.Z. Wo, L.M. Zhou, H.T. Huang, K.T. Lau and M. Wang




K. Chu and Y. G. Shen, "Nano-Structured TiN/TiBN Multilayer Thin Films", Key Engineering Materials, Vols. 334-335, pp. 889-892, 2007

Online since:

March 2007





[1] B. J. Daniels, W. D. Nix, B. M. Clemens, Thin Solid Films 253 (1994) 218.

[2] Chengtao Yang, Shuren Zhang, Jiahui Luo, Yan Li, Yanrong Li, Vacuum 80 (2005) 317.

DOI: 10.1016/j.vacuum.2005.06.009

[3] M. Flores, S. Muhl, E. Andrade, Thin Solid Films 433 (2003) 217.

[4] M. Nordin, M. Larsson, S. Hogmark, Surf. Coat. Technol. 120 (1999) 528.

[5] H. Soderberg, M. Oden, J. M. M. Aldareguia, L. Hultman, J. Appl. Phys. 97 (2005) 114327.

[6] R. C. Cammarata, T. E. Schlesinger, C. Kim, S. B. Qadri, A. S. Edelstein, Appl. Phys. Lett. 56 (1990) 1862.
