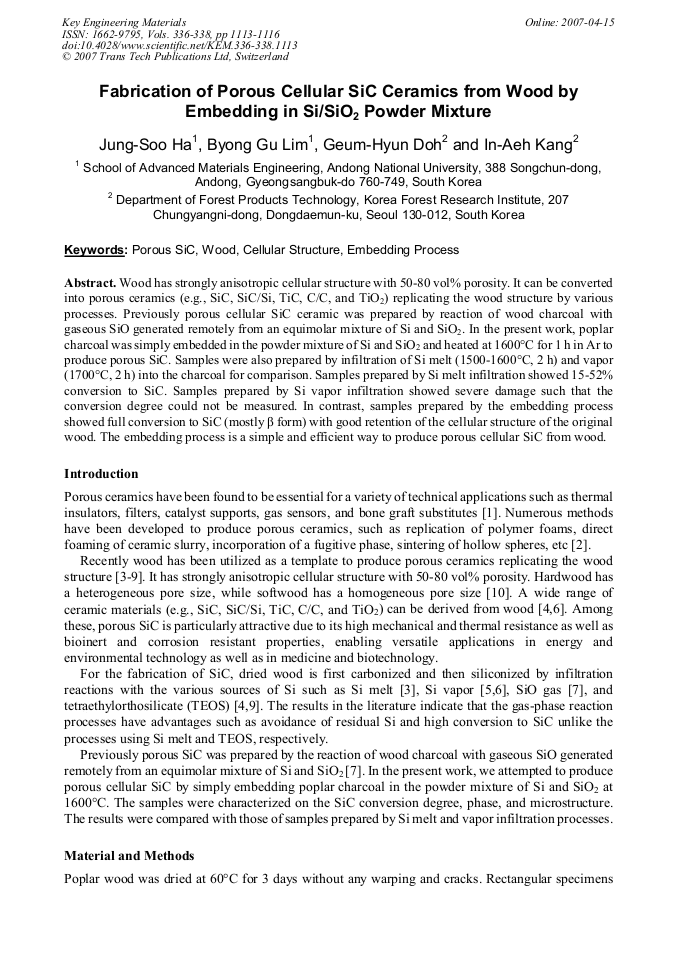

Fabrication of Porous Cellular SiC Ceramics from Wood by Embedding in Si/SiO₂ Powder Mixture

Abstract:

Wood has strongly anisotropic cellular structure with 50-80 vol% porosity. It can be converted into porous ceramics (e.g., SiC, SiC/Si, TiC, C/C, and TiO2) replicating the wood structure by various processes. Previously porous cellular SiC ceramic was prepared by reaction of wood charcoal with gaseous SiO generated remotely from an equimolar mixture of Si and SiO2. In the present work, poplar charcoal was simply embedded in the powder mixture of Si and SiO2 and heated at 1600°C for 1 h in Ar to produce porous SiC. Samples were also prepared by infiltration of Si melt (1500-1600°C, 2 h) and vapor (1700°C, 2 h) into the charcoal for comparison. Samples prepared by Si melt infiltration showed 15-52% conversion to SiC. Samples prepared by Si vapor infiltration showed severe damage such that the conversion degree could not be measured. In contrast, samples prepared by the embedding process showed full conversion to SiC (mostly β form) with good retention of the cellular structure of the original wood. The embedding process is a simple and efficient way to produce porous cellular SiC from wood.

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Main Theme:

High-Performance Ceramics IV

Edited by:

Wei Pan and Jianghong Gong

Pages:

1113-1116

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.336-338.1113

Citation:

J. S. Ha et al., "Fabrication of Porous Cellular SiC Ceramics from Wood by Embedding in Si/SiO₂ Powder Mixture", Key Engineering Materials, Vols. 336-338, pp. 1113-1116, 2007

Online since:

April 2007

Authors:

Jung Soo Ha, Byong Gu Lim, Geum Hyun Doh, In Aeh Kang

Keywords:

Cellular Structure, Embedding Process, Porous SiC, Wood

Export:

RIS, BibTeX

Price:

$38.00

Permissions:

Request Permissions

Add to Cart

References

[1] K. Ishizaki, S. Komarneni and M. Nanko: Porous Materials: Process technology and applications (Kluwer Academic Publishers, Dordrecht/Boston/London, 1998), p.181.

[2] Y-W. Kim and C.B. Park: Comp. Sci. Tech. Vol. 63 (2003), p.2371.

[3] L. Esposito, D. Sciti, A. Piancastelli and A. Bellosi: J. Eur. Ceram. Soc. Vol. 24 (2004), p.533.

[4] J-M. Qian, J-P. Wang, G-J. Qiao and Z-H. Jin: J. Eur. Ceram. Soc. Vol. 24 (2004), p.3251.

[5] J-M. Qian, J-P. Wang and Z-H. Jin: Mater. Chem. Phys. Vol. 82 (2003), p.648.

[6] E. Vogli, H. Sieber and P. Greil: J. Eur. Ceram. Soc. Vol. 22 (2002), p.2663.

[7] E. Vogli, J. Mukerji, C. Hoffman. R. Kladny, H. Sieber and P. Greil: J. Am. Ceram. Soc. Vol. 84 (2001), p.1236.

[8] T. Ota, M. Imaeda, H. Takase, M. Kobayashi, N. Kinoshita, T. Hirashita, H. Miyazaki and Y. Hikichi: J. Am. Ceram. Soc. Vol. 83 (2000), p.1521.

DOI: https://doi.org/10.1111/j.1151-2916.2000.tb01421.x

[9] T. Ota, M. Takahashi, T. Hibi, M. Ozawa, S. Suzuki and Y. Hikichi: J. Am. Ceram. Soc. Vol. 78 (1995), p.3409.

[10] K.J. Duchow and R.A. Gerhardt: Mater. Sci. Eng. C Vol. 4 (1996) p.125.
