Preparation and Property Study of 3D Cf/Si-Ti-C-O Composites Fabricated with Polytitanocarbosilane by PIP Process

Abstract:

Article Preview

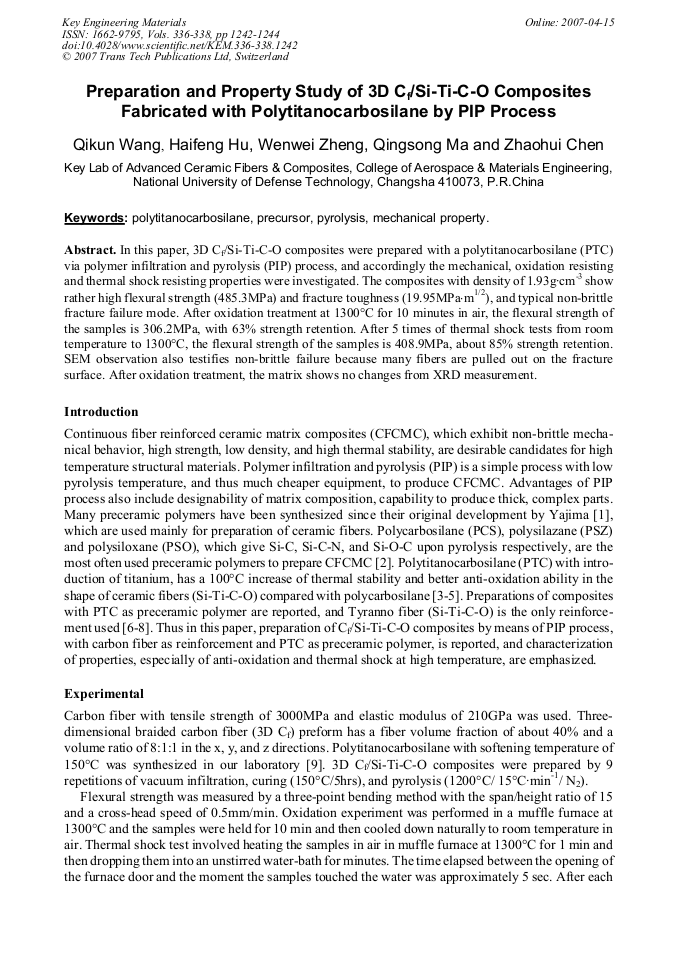

In this paper, 3D Cf/Si-Ti-C-O composites were prepared with a polytitanocarbosilane (PTC) via polymer infiltration and pyrolysis (PIP) process, and accordingly the mechanical, oxidation resisting and thermal shock resisting properties were investigated. The composites with density of 1.93g·cm-3 show rather high flexural strength (485.3MPa) and fracture toughness (19.95MPa⋅m1/2), and typical non-brittle fracture failure mode. After oxidation treatment at 1300°C for 10 minutes in air, the flexural strength of the samples is 306.2MPa, with 63% strength retention. After 5 times of thermal shock tests from room temperature to 1300°C, the flexural strength of the samples is 408.9MPa, about 85% strength retention. SEM observation also testifies non-brittle failure because many fibers are pulled out on the fracture surface. After oxidation treatment, the matrix shows no changes from XRD measurement.

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong

Pages:

1242-1244

DOI:

10.4028/www.scientific.net/KEM.336-338.1242

Citation:

Q. K. Wang et al., "Preparation and Property Study of 3D Cf/Si-Ti-C-O Composites Fabricated with Polytitanocarbosilane by PIP Process", Key Engineering Materials, Vols. 336-338, pp. 1242-1244, 2007

Online since:

April 2007

Export:

Price:

$35.00

[1] S. Yajima, T. Iwai and T. Yamamura: J. Mater. Sci. Vol. 16 (1981), p.1349.

[2] W. W. Zheng, Z. H. Chen, Q. S. Ma and H. F. Hu: J. Mater. Sci. Vol. 39 (2004), p.3521.

[3] T. Ishikawa, T. Yamamura, and K. Okamura: J. Mater. Sci. Vol. 27 (24) (1992), p.6627.

[4] G. Chollon, B. Aldacourrou, L. Capes, R. Pailler and R. Naslain: J. Mater. Sci. Vol. 33 (1998), p.901.

DOI: 10.1023/a:1004395308173

[5] Y. Hasegawa, C.X. Fen, Y. C Song and Z.L. Tan: J. Mater. Sci. Vol. 26 (1991), p.3657.

[6] Y. Hirata, T. Matsura and K. Hayata: J. Am. Ceram. Soc. Vol. 83 (5) (2000), p.1044.

[7] T. Ogasawara, T. Ishikawa, Y. Ohsawa, Y. Ochi and S.J. Zhu: J. Am. Ceram. Soc. Vol. 85 (2) (2002), p.393.

[8] S.J. Zhua, Y. Kanekob, Y. Ochi, T. Ogasawara, and T. Ishikawa: Int'l. J. Fatig. Vol. 26 (2004), p.1069.

[9] Y.F. Wang, P. Zhao, Y.C. Song and C.X. Feng: Aero. Mater. Tech. Vol. 2 (2001), p.24.

[10] C.C. Lu, M.H. Headinger, A.P. Majidi and T.W. Chou: J. Mater. Sci. Vol. 35 (23) (2000), p.6301.

[11] H.Q. Ly, R. Taylor and R. J. Day: J. Mater. Sci. Vol. 36 (16) (2001), p.4027.

[12] K. Nakano, A. Kamiya, Y. Nishino, T. Imura and T.W. Chou: J. Am. Ceram. Soc. Vol. 78 (10) (1995), p.2811. Fig. 3 XRD patterns of 3D Cf/Si-Ti-C-O composites (a: before oxidation; b: after oxidation).

In order to see related information, you need to Login.
