SAXS Characterization of Nanochannels in Polymer-Derived SiC Fibers

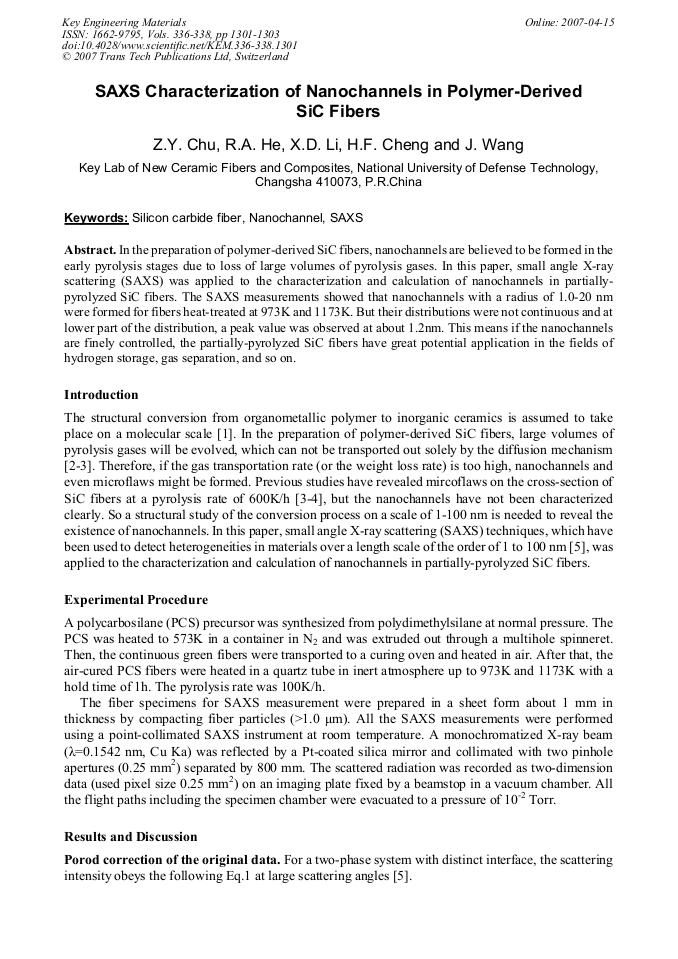

Article Preview

In the preparation of polymer-derived SiC fibers, nanochannels are believed to be formed in the early pyrolysis stages due to loss of large volumes of pyrolysis gases. In this paper, small angle X-ray scattering (SAXS) was applied to the characterization and calculation of nanochannels in partiallypyrolyzed SiC fibers. The SAXS measurements showed that nanochannels with a radius of 1.0-20 nm were formed for fibers heat-treated at 973K and 1173K. But their distributions were not continuous and at lower part of the distribution, a peak value was observed at about 1.2nm. This means if the nanochannels are finely controlled, the partially-pyrolyzed SiC fibers have great potential application in the fields of hydrogen storage, gas separation, and so on.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




Z. Y. Chu et al., "SAXS Characterization of Nanochannels in Polymer-Derived SiC Fibers", Key Engineering Materials, Vols. 336-338, pp. 1301-1303, 2007

Online since:

April 2007




[1] T. Kamiyama, K. Suzuya: J. Non-Cryst. Solids. Vol. 232-234 (1998), p.476.

[2] K. Suzuki, K. Kumagawa, T. Kamiyama and M. Shibuya: J. Mater. Sci. Vol. 37 (2002), p.949.

[3] Z.Y. Chu, H.F. Cheng, J. Wang, et al.: Key Eng. Mater. Vol. 280-283 (2005), p.1297.

[4] Z.Y. Chu, C.X. Feng, Y.C. Song, et al.: J. Mater. Sci. Vol. 39 (2004), p.2827.

[5] A. Guinier and G. Fournet: Small-Angle Scattering of X-Rays, Wiley, New York, (1955).

[6] Determination of size distribution of nanoparticles using SAXS measurement, GB/T 13221-(2004).

[7] M. Hirscher, M. Becher, M. Haluska, et al.: J. Alloys Comp. Vol. 356-357 (2003), p.433.

[8] L. Zhou: Materials Review Vol. 14 (2000), p.3 (in Chinese). Fig. 4 Pore size distribution in heat-treated fibers at (� ) 973K and (� ) 1173K, using the Shull-Roess method.
