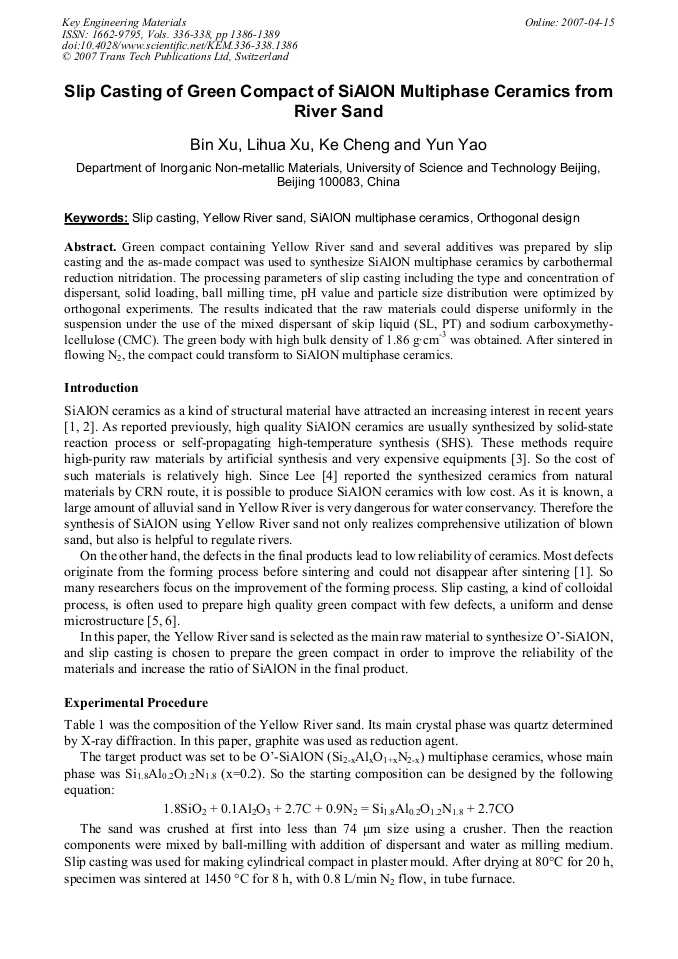

Slip Casting of Green Compact of SiAlON Multiphase Ceramics from River Sand


Article Preview

Green compact containing Yellow River sand and several additives was prepared by slip casting and the as-made compact was used to synthesize SiAlON multiphase ceramics by carbothermal reduction nitridation. The processing parameters of slip casting including the type and concentration of dispersant, solid loading, ball milling time, pH value and particle size distribution were optimized by orthogonal experiments. The results indicated that the raw materials could disperse uniformly in the suspension under the use of the mixed dispersant of skip liquid (SL, PT) and sodium carboxymethylcellulose (CMC). The green body with high bulk density of 1.86 g·cm-3 was obtained. After sintered in flowing N2, the compact could transform to SiAlON multiphase ceramics.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




B. Xu et al., "Slip Casting of Green Compact of SiAlON Multiphase Ceramics from River Sand", Key Engineering Materials, Vols. 336-338, pp. 1386-1389, 2007

Online since:

April 2007




[1] X. Xu, M.I.L.L. Oliveira, R.L. Fu and J.M.F. Ferreira: J. Euro. Ceram. Soc. Vol. 23 (2003), p.1525.

[2] B. Basu, J. Vleugels, M. Kalin and O.V.D. Biest: Mater. Eng. Vol. 359 (2003), p.228.

[3] H.J. Zhang, W.C. Li and X.C. Zhong: NaihuoCailiao (Chinese) Vol. 34 (2000), p.137.

[4] J.G. Lee and I.B. Cutler: J. Am. Ceram. Soc. Vol. 58 (1979), p.869.

[5] A.L. Jennifer: J. Am. Ceram. Soc. Vol. 83 (2000), p.2341.

[6] L.H. Xu, Z.F. Cheng, F. Lian, T.Z. Wang and Y. Yao: Key Eng. Mater. Vol. 280-283 (2005). p.1675.

[7] T. Hotta, H. Abe, M. Naito, M. Takahashi, K. Uematsu and Z. Kato: Powd. Tech. Vol. 149 5), p.106.

[8] G.H. Ji , B.M. Yang and T. Liu: J. Shandong Uni. Tech. (Chinese) Vol. 18 (2004), p.102 Fig. 4 XRD pattern of sintered sample H26. Fig. 5 Microstructure of sintered sample H26.
