Hydrothermal Preparation of Bismuth Titanate Nanopowders

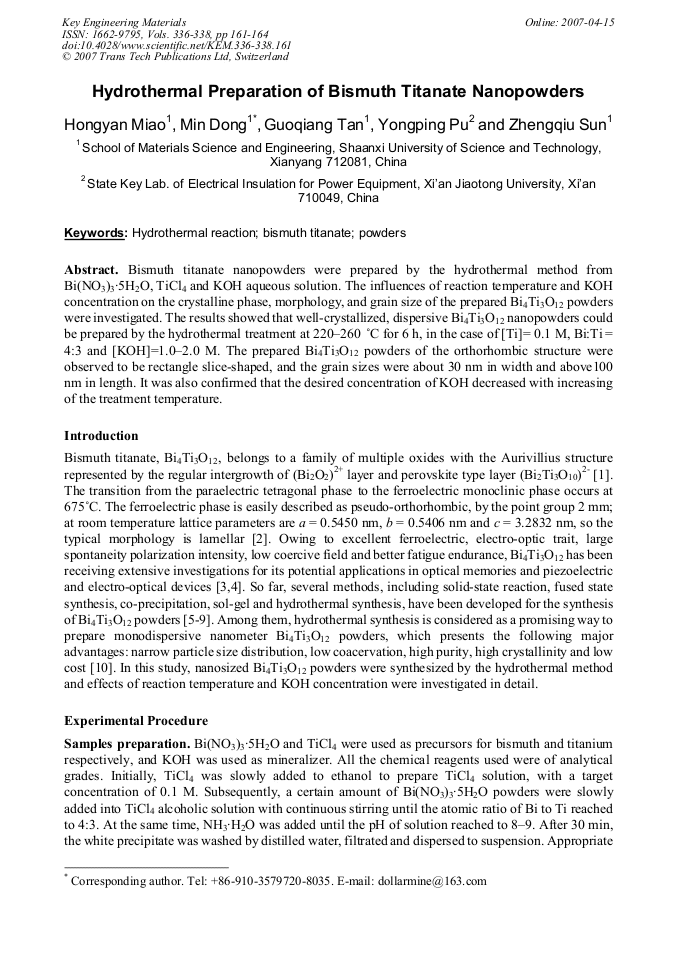

Article Preview

Bismuth titanate nanopowders were prepared by the hydrothermal method from Bi(NO3)3·5H2O, TiCl4 and KOH aqueous solution. The influences of reaction temperature and KOH concentration on the crystalline phase, morphology, and grain size of the prepared Bi4Ti3O12 powders were investigated. The results showed that well-crystallized, dispersive Bi4Ti3O12 nanopowders could be prepared by the hydrothermal treatment at 220–260°C for 6 h, in the case of [Ti]= 0.1 M, Bi:Ti = 4:3 and [KOH]=1.0–2.0 M. The prepared Bi4Ti3O12 powders of the orthorhombic structure were observed to be rectangle slice-shaped, and the grain sizes were about 30 nm in width and above100 nm in length. It was also confirmed that the desired concentration of KOH decreased with increasing of the treatment temperature.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




H. Y. Miao et al., "Hydrothermal Preparation of Bismuth Titanate Nanopowders", Key Engineering Materials, Vols. 336-338, pp. 161-164, 2007

Online since:

April 2007




[1] P.C. Joshi and S.B. Desu: J. App. Phys. Vol. 80 (1996), p.2349.

[2] F. Donado, M.E. Mendoza and V. Dossetti: Ferroeletrics Vol. 270 (2002), p.1279.

[3] M. Billegas, C. Moure, J.F. Fernandez and P. Duran: J. Mater. Sci. Vol. 31 (1996), p.949.

[4] M. Billegas, C. Moure, J.F. Fernandez and P. Duran: Ceram. Int. Vol. 22 (1996), p.15.

[5] C.H. Lu and C.H. Wu: J. Eur. Ceram. Soc. Vol. 22 (2002), p.707.

[6] L.B. Kong, J. Ma, W. Zhu and O.K. Tan: Mater. Lett. Vol. 51(2001), p.108.

[7] N.V. Giridharan, S. Madeswaran and R. Jayavel: J. Cryst. Growth Vol. 237-239 (2002), p.468.

[8] D. Chen and X. Jiao: Mater. Res. Bull. Vol. 36 (2001), p.355.

[9] Q. Yang, Y. Li, Q. Yin and P. Wang: J. Eur. Ceram. Soc. Vol. 23 (2003), p.161.

[10] K. Byrappa and Y. Masahiro: Handbook of Hydrothermal Technology (William Andrew Publications, New York 2001).
