Fabrication of Bi3NbTiO9 Thick Films by Air Flow Deposition

Abstract:

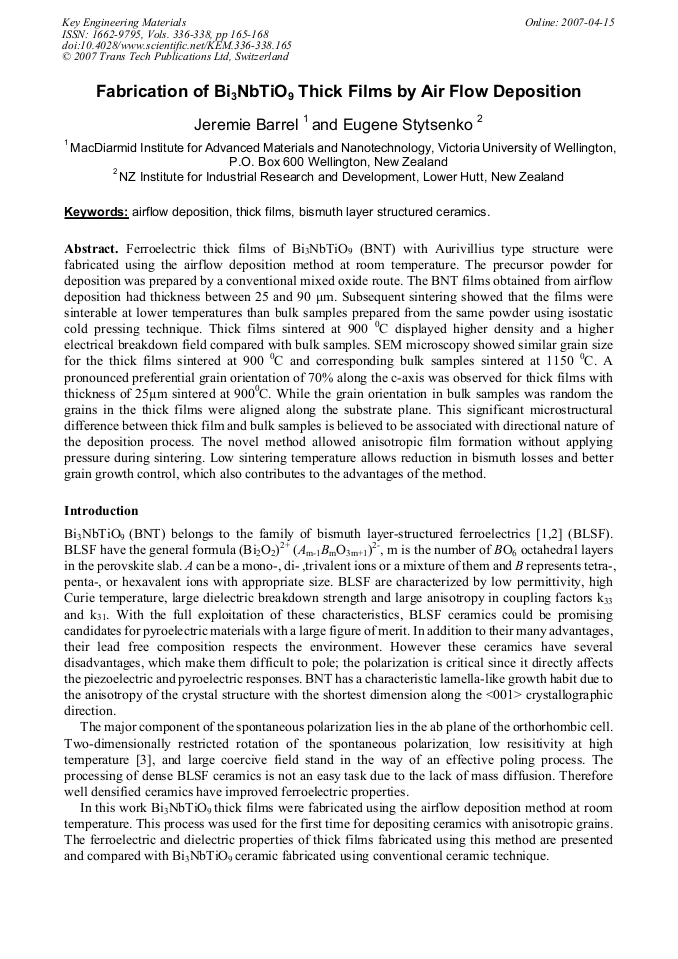

Article Preview

Ferroelectric thick films of Bi3NbTiO9 (BNT) with Aurivillius type structure were fabricated using the airflow deposition method at room temperature. The precursor powder for deposition was prepared by a conventional mixed oxide route. The BNT films obtained from airflow deposition had thickness between 25 and 90 μm. Subsequent sintering showed that the films were sinterable at lower temperatures than bulk samples prepared from the same powder using isostatic cold pressing technique. Thick films sintered at 900 0C displayed higher density and a higher electrical breakdown field compared with bulk samples. SEM microscopy showed similar grain size for the thick films sintered at 900 0C and corresponding bulk samples sintered at 1150 0C. A pronounced preferential grain orientation of 70% along the c-axis was observed for thick films with thickness of 252m sintered at 9000C. While the grain orientation in bulk samples was random the grains in the thick films were aligned along the substrate plane. This significant microstructural difference between thick film and bulk samples is believed to be associated with directional nature of the deposition process. The novel method allowed anisotropic film formation without applying pressure during sintering. Low sintering temperature allows reduction in bismuth losses and better grain growth control, which also contributes to the advantages of the method.

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong

Pages:

165-168

DOI:

10.4028/www.scientific.net/KEM.336-338.165

Citation:

J. Barrel and E. Stytsenko, "Fabrication of Bi3NbTiO9 Thick Films by Air Flow Deposition", Key Engineering Materials, Vols. 336-338, pp. 165-168, 2007

Online since:

April 2007

Export:

Price:

$35.00

[1] E. C. Subbarao: J. Am. Ceram. Soc Vol. 45 (1962), p.166.

[2] R. E. Newnham, R. W. Wolfe, and J. F. Dorrian: Mater. Res. Bull. Vol. 6 (1971), p.1029.

[3] M. Villegas, A. C. Caballero, C. Moure, P. Duran, and J. F. Fernandez: J. Am. Ceram. Soc. Vol. 82 (1999), p.2411.

[4] E. Stytsenko, M. J. Ryan, and M. Daglish: J. Eu. Ceram. Soc. Vol. 24 (2004), p.999.

[5] F. K. Lotgering: J. Inorg. Nucl. Chem. Vol. 9 (1959), p.113.

[6] Z. Zhang, H. Yan, P. Xiang, X. Dong, and Y. Wang: J. Am. Ceram. Soc. Vol. 87 (2004), p.602.

[7] A. Fousaka, and L. E. Cross: J. Appl. Phys. Vol. 41 (1970), p.2834.

[8] M. Miyayama, and I. -S. Yi: Ceram. Int. Vol. 26 (2000), p.529.
