Micro-Tribological Behavior of Boron Carbide Self-Mated Pairs


Article Preview

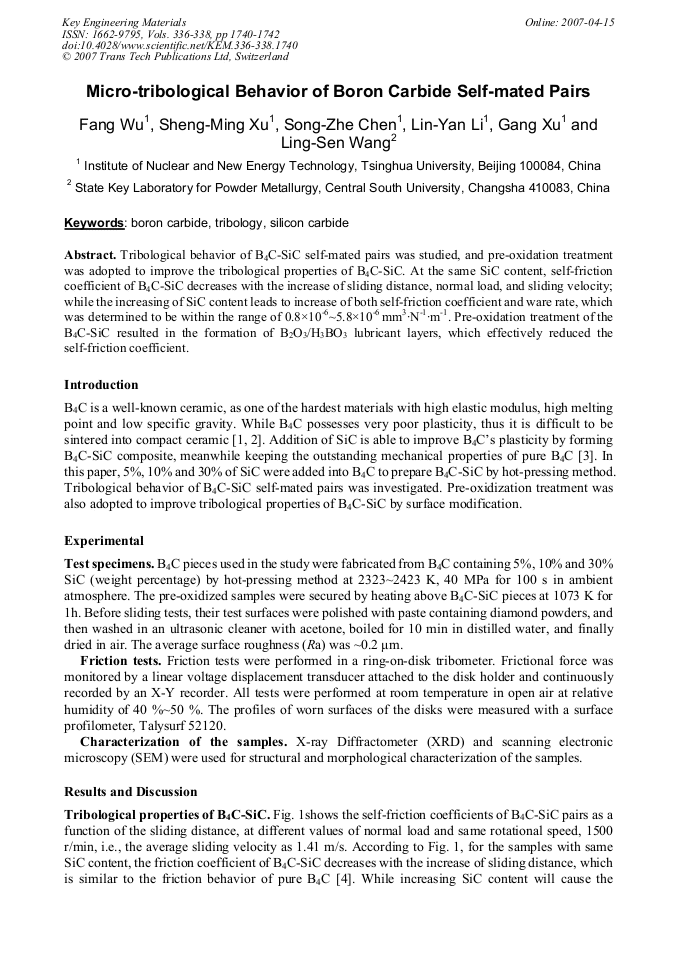

Tribological behavior of B4C-SiC self-mated pairs was studied, and pre-oxidation treatment was adopted to improve the tribological properties of B4C-SiC. At the same SiC content, self-friction coefficient of B4C-SiC decreases with the increase of sliding distance, normal load, and sliding velocity; while the increasing of SiC content leads to increase of both self-friction coefficient and ware rate, which was determined to be within the range of 0.8×10-6~5.8×10-6 mm3·N-1·m-1. Pre-oxidation treatment of the B4C-SiC resulted in the formation of B2O3/H3BO3 lubricant layers, which effectively reduced the self-friction coefficient.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




F. Wu et al., "Micro-Tribological Behavior of Boron Carbide Self-Mated Pairs", Key Engineering Materials, Vols. 336-338, pp. 1740-1742, 2007

Online since:

April 2007




[1] K. Nishiyama: Powder and Powder Metallurgy. Vol. 43 (1996), p.464.

[2] L. S. Wang: Journal of CSIMM. Vol. 50 (1986), p.65.

[3] D. -H. Riu, R. Choi, and H. Kim: J. of Materials Science. Vol. 30 (1995), p.3897.

[4] F. Wu and L. S. Wang: Trans. of Nonferrous Metals Society of China. Vol. 11 (2001), p.119.

[5] Y. G. Gogotsi, A. M. Koval'chenko and I. A. Kossko: Wear. Vol. 154 (1992), p.133. Fig. 4 X-ray diffraction patterns of B4C-SiC oxidized at 1073 K Fig. 5 SEM image of wear scars of pre-oxidized B4C-5%SiC after sliding test under 11. 8 N.
