Joining of SiC Ceramic by High Temperature Brazing Using Ni-Cr-SiC Powders as Filler

Abstract:

Article Preview

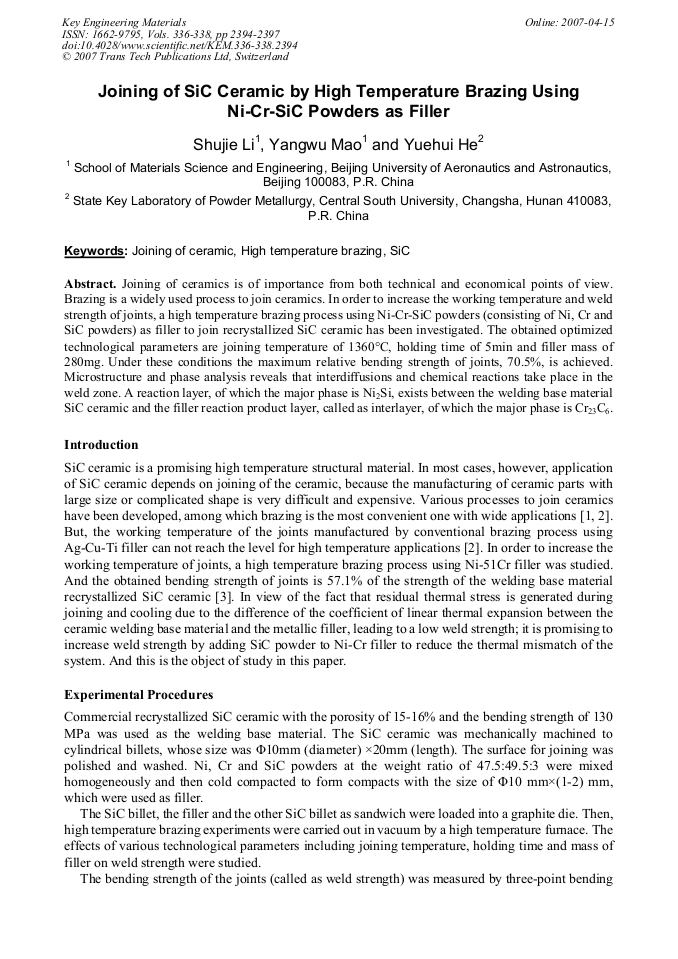

Joining of ceramics is of importance from both technical and economical points of view. Brazing is a widely used process to join ceramics. In order to increase the working temperature and weld strength of joints, a high temperature brazing process using Ni-Cr-SiC powders (consisting of Ni, Cr and SiC powders) as filler to join recrystallized SiC ceramic has been investigated. The obtained optimized technological parameters are joining temperature of 1360°C, holding time of 5min and filler mass of 280mg. Under these conditions the maximum relative bending strength of joints, 70.5%, is achieved. Microstructure and phase analysis reveals that interdiffusions and chemical reactions take place in the weld zone. A reaction layer, of which the major phase is Ni2Si, exists between the welding base material SiC ceramic and the filler reaction product layer, called as interlayer, of which the major phase is Cr23C6.

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong

Pages:

2394-2397

DOI:

10.4028/www.scientific.net/KEM.336-338.2394

Citation:

S. J. Li et al., "Joining of SiC Ceramic by High Temperature Brazing Using Ni-Cr-SiC Powders as Filler", Key Engineering Materials, Vols. 336-338, pp. 2394-2397, 2007

Online since:

April 2007

Export:

Price:

$35.00

[1] J. Zhang and S. Li: Journal of the Chinese Ceramic Society Vol. 30 (2002), p.102.

[2] E. Lugscheider and W. Tillmann: Materials & Manufacturing Process Vol. 8 (1993), p.219.

[3] Y. Mao, S. Li and W. Han: Rare Metal Materials and Engineering, (to be published).

[4] J. Ren and A. Wu: Joining of Advanced Materials (China Machine Press, Beijing 2000), p.152.

[5] M.R. Jackson, R.L. Mehan, A.M. Davis and E.L. Hall, Metallurgical Transactions A Vol. 14A (1983), p.355.

[6] K. Kurokawa and R. Nagasaki, Reactivity of Sintered SiC with Metals, Sintering'87, S. Somiya(ed. ) (Elsevier, New York 1998), p.1397.

DOI: 10.1007/978-94-009-1373-8_235

In order to see related information, you need to Login.
