Pb(Mg1/3Nb2/3)O3- Pb(Ni1/3Nb2/3)O3-PbTiO3 Crystals by Solid State Growth

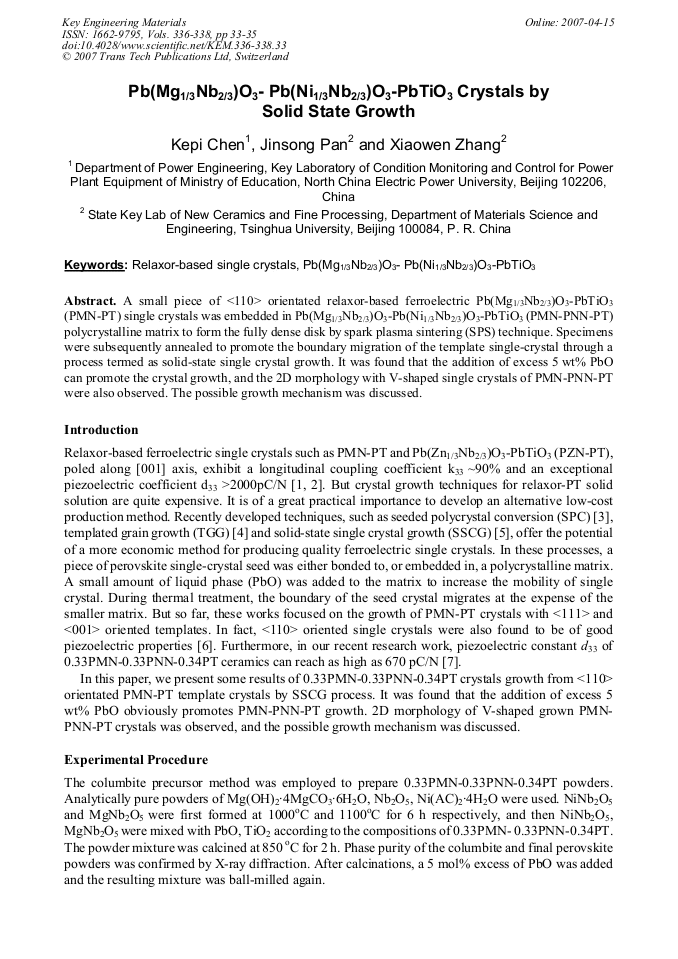

Article Preview

A small piece of <110> orientated relaxor-based ferroelectric Pb(Mg1/3Nb2/3)O3-PbTiO3 (PMN-PT) single crystals was embedded in Pb(Mg1/3Nb2/3)O3-Pb(Ni1/3Nb2/3)O3-PbTiO3 (PMN-PNN-PT) polycrystalline matrix to form the fully dense disk by spark plasma sintering (SPS) technique. Specimens were subsequently annealed to promote the boundary migration of the template single-crystal through a process termed as solid-state single crystal growth. It was found that the addition of excess 5 wt% PbO can promote the crystal growth, and the 2D morphology with V-shaped single crystals of PMN-PNN-PT were also observed. The possible growth mechanism was discussed.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




K. P. Chen et al., "Pb(Mg1/3Nb2/3)O3- Pb(Ni1/3Nb2/3)O3-PbTiO3 Crystals by Solid State Growth", Key Engineering Materials, Vols. 336-338, pp. 33-35, 2007

Online since:

April 2007




[1] R. E. Service: Science Vol. 275 (1997), p.1878.

[2] S. E. Park and T. R. Shrout: J. Appl. Phys. Vol. 82 (1997), p.1804.

[3] P. T. King, E. P. Gorzkowski, A. M. Scotch, et al.: J. Am. Ceram. Soc. Vol. 86 (2003), p.2182.

[4] E. Sabolsky, G. Messing and S. Trolier-Mckingstry: J. Am. Ceram. Soc. Vol. 84 (2001), p.2507.

[5] S. Kwon, W. S. Hackenberger, P. W. Rehrig, J. B. Lee, T. M. Heo, D. H. Kim and H. Y. Lee: IEEE Inter. Ultrason., Ferroelectr. Frequency Control. (2004), p.153.

[6] Y. Lu, D-Y. Jeong, Z-Y Cheng, et al.: Appl. Phys. Lett. Vol. 78 (1999), p.3109.

[7] C. Lei, K. P. Chen and X. W. Zhang: J. Electroceram. Vol. 10 (2003), p.233.

[8] A. Khan, F. A. Meschke, T. Li, et al.: J. Am. Ceram. Soc. Vol. 82 (1999), p.2958.

[9] J. S. Pan, X. W. Zhang and K. P. Chen: J Crystal Growth Vol. 284 (2005), p.275. Fig. 4 SEM micrograph showing the V-shaped growth of template crystals Fig. 5 Schematic diagram illustrating the V-shaped growth of template crystals.
