Electric Fatigue of PZT Piezoelectric Ceramics under Bias and Unipolar Pulse Cycling Field

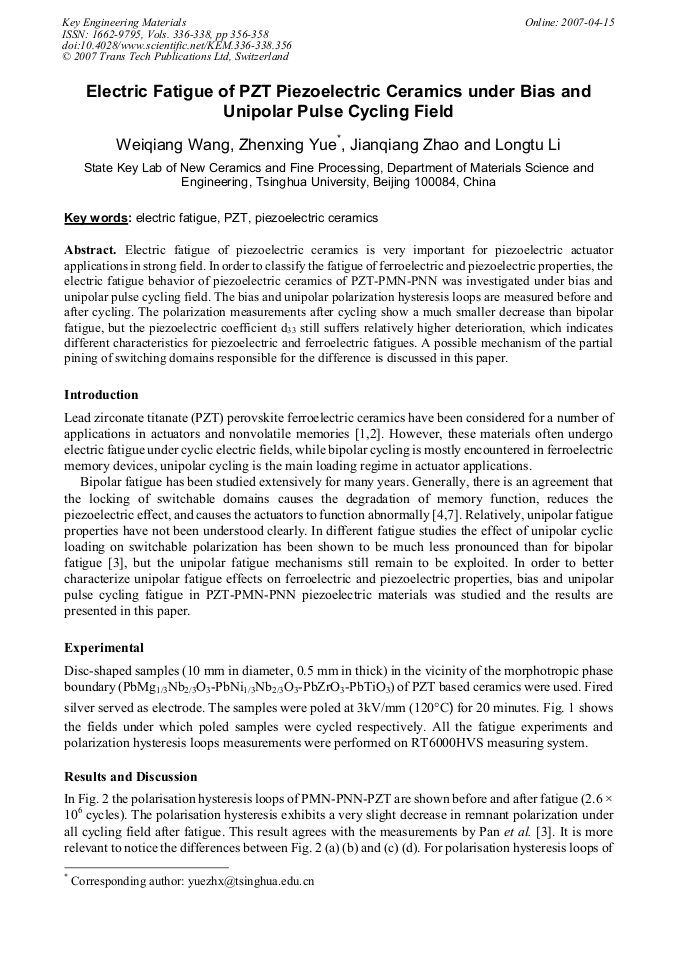

Article Preview

Electric fatigue of piezoelectric ceramics is very important for piezoelectric actuator applications in strong field. In order to classify the fatigue of ferroelectric and piezoelectric properties, the electric fatigue behavior of piezoelectric ceramics of PZT-PMN-PNN was investigated under bias and unipolar pulse cycling field. The bias and unipolar polarization hysteresis loops are measured before and after cycling. The polarization measurements after cycling show a much smaller decrease than bipolar fatigue, but the piezoelectric coefficient d33 still suffers relatively higher deterioration, which indicates different characteristics for piezoelectric and ferroelectric fatigues. A possible mechanism of the partial pining of switching domains responsible for the difference is discussed in this paper.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




W. Q. Wang et al., "Electric Fatigue of PZT Piezoelectric Ceramics under Bias and Unipolar Pulse Cycling Field", Key Engineering Materials, Vols. 336-338, pp. 356-358, 2007

Online since:

April 2007




[1] J. F. Scott and M. Dawber: Ferroelectr. Vol. 265(2002), p.119.

[2] T. Morita: Sens. Actuators A Vol. 103(2003), p.291.

[3] W. Pan, C. F. Yue and O. Tosyali: J. Am. Ceram. Soc. Vol. 75(1992), p.1534.

[4] E. L. Colla, S. Hong, D. V. Taylor, et al.: Appl. Phys. Lett. Vol. 72(1998), p.2763.

[5] M. E. Lines and A. M. Glass: Principles and Applications of Ferroelectrics and Related Materials (Clarendon, Oxford, 1977).

[6] A. L. Kholkin, E. L. Colla, A. K. Tagantsev, et al.: Appl. Phys. Lett. Vol. 68(1996), p.2577.

[7] Y. Zhang, I. S. Baturin, E. Aulbach, et al.: Appl. Phys. Lett. Vol. 86(2005), p.012910.

[8] C. Verdier, D. C. Lupascu and J. Rodel: J. Eur. Ceram. Soc. Vol. 23(2003), p.1409. Fig. 3. (a) Correlation between d33 and ε before and after fatigue under all cycling fields; (b) d33 and ε as a function of cycle number.
