Dielectric Properties of (Bi1/2Na1/2)TiO3-SrTiO3 Ferroelectric Ceramics

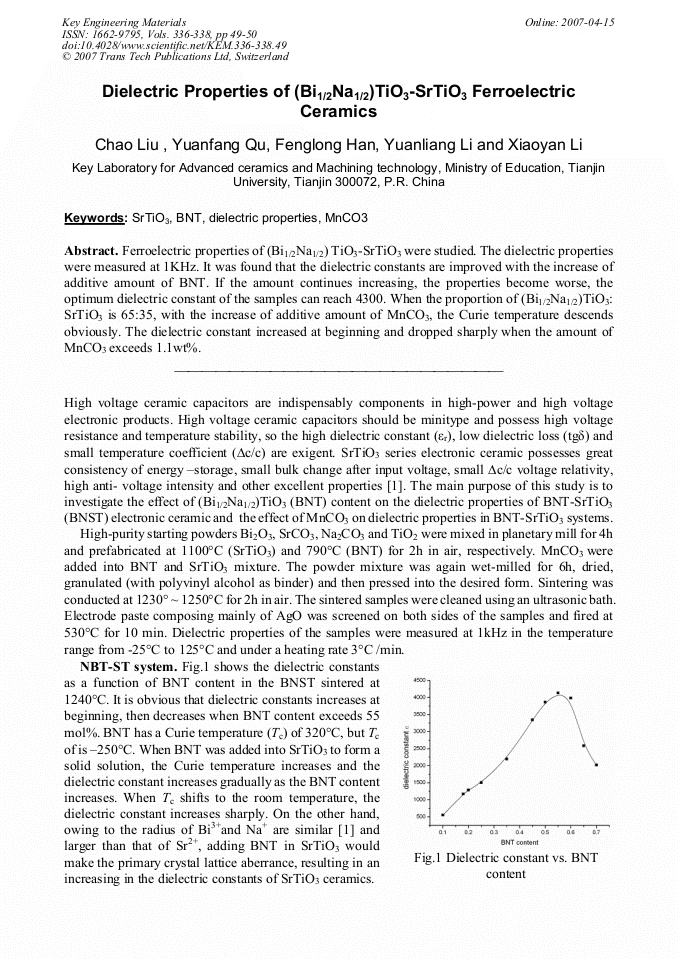

Article Preview

Ferroelectric properties of (Bi1/2Na1/2) TiO3-SrTiO3 were studied. The dielectric properties were measured at 1KHz. It was found that the dielectric constants are improved with the increase of additive amount of BNT. If the amount continues increasing, the properties become worse, the optimum dielectric constant of the samples can reach 4300. When the proportion of (Bi1/2Na1/2)TiO3: SrTiO3 is 65:35, with the increase of additive amount of MnCO3, the Curie temperature descends obviously. The dielectric constant increased at beginning and dropped sharply when the amount of MnCO3 exceeds 1.1wt%.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




C. Liu et al., "Dielectric Properties of (Bi1/2Na1/2)TiO3-SrTiO3 Ferroelectric Ceramics", Key Engineering Materials, Vols. 336-338, pp. 49-50, 2007

Online since:

April 2007




[1] A. Shen and Y. Pu: Jangshu Ceramics Vol. 35 (2003), p.13.

[2] H. Nagata and T. Takenada: J. Eur. Ceram. Soc. Vol. 21 (2001), p.1299.

[3] T. Kamiya and T. Suzuki: Jpn. J. Appl. Phys. Vol. 31 (1992), p.3058.

[4] L. He and C. Li: J. Inorg. Mater. Vol. 15 (2000), p.293.
