Preferred Orientation Growth of Ba0.6Sr0.4TiO3 Thin Films with Epitaxial MgO Buffer Layer on Si(100) Substrate

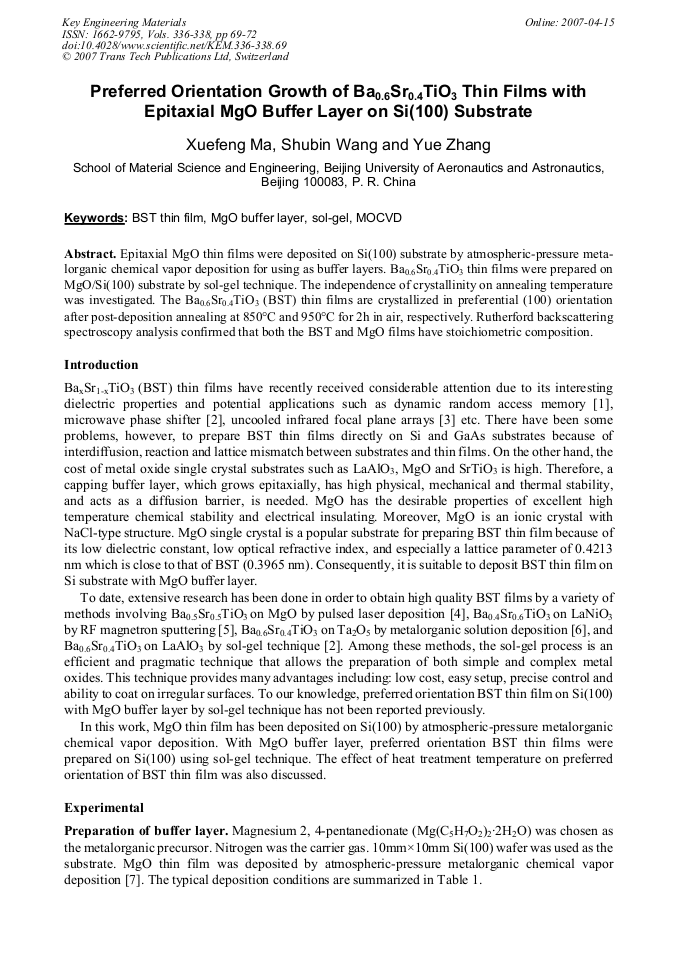

Article Preview

Epitaxial MgO thin films were deposited on Si(100) substrate by atmospheric-pressure metalorganic chemical vapor deposition for using as buffer layers. Ba0.6Sr0.4TiO3 thin films were prepared on MgO/Si(100) substrate by sol-gel technique. The independence of crystallinity on annealing temperature was investigated. The Ba0.6Sr0.4TiO3 (BST) thin films are crystallized in preferential (100) orientation after post-deposition annealing at 850°C and 950°C for 2h in air, respectively. Rutherford backscattering spectroscopy analysis confirmed that both the BST and MgO films have stoichiometric composition.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




X. F. Ma et al., "Preferred Orientation Growth of Ba0.6Sr0.4TiO3 Thin Films with Epitaxial MgO Buffer Layer on Si(100) Substrate", Key Engineering Materials, Vols. 336-338, pp. 69-72, 2007

Online since:

April 2007




[1] S. Ezhilvalavan, T. Y. Tseng: Mater. Chem. Phys. Vol. 65 (2000), p.227.

[2] S. B. Majumder, M. Jain, A. Martinez, R. S. Katiyar, F. W. Van Keuls and F. A. Miranda: J. Appl. Phys. Vol. 90 (2001), p.896.

[3] S. B. Liu, M. D. Liu, Y. K. Zeng, C. R. Li, S. Chen, Y. Q. Huang, and D. L. Xia: Mater. Sci. Eng. C. Vol. 22 (2002), p.73.

[4] D. Y. Wang, C. L. Mak, K. H. Wong, H. L. W. Chan, C. L. Choy: Ceram. Int. Vol. 30 (2004), p.1745.

[5] C.M. Wu, T.B. Wu: Mater. Lett. Vol. 33 (1997), p.97.

[6] M. W. Cole, W. D. Nothwang, J. D. Demaree, S. Hirsch: J. Appl. Phys. Vol. 98 (2005), p.24507.

[7] J. M. Zeng, H. Wang, S. X. Shang, Z. Wang, M. Wang: J. Cryst. Growth. Vol. 169 (1996), p.474.

[8] M. Ohring: The Materials Science of Thin Films (Academic Press, San Diego 1992).

[9] Y. P. Ding, C. Y. Jin, Z. Y. Meng: Mater. Res. Bull. Vol. 35 (2000), p.1187.

[10] L. R. Doolittle: Nucl. Instrum. Methods. Phys. Res. B. Vol. 9 (1985), p.334.
