Fabrication of (Ba,Sr)TiO3 Thin Films by Hydrothermal Crystallization of Sol-Gel Precursor

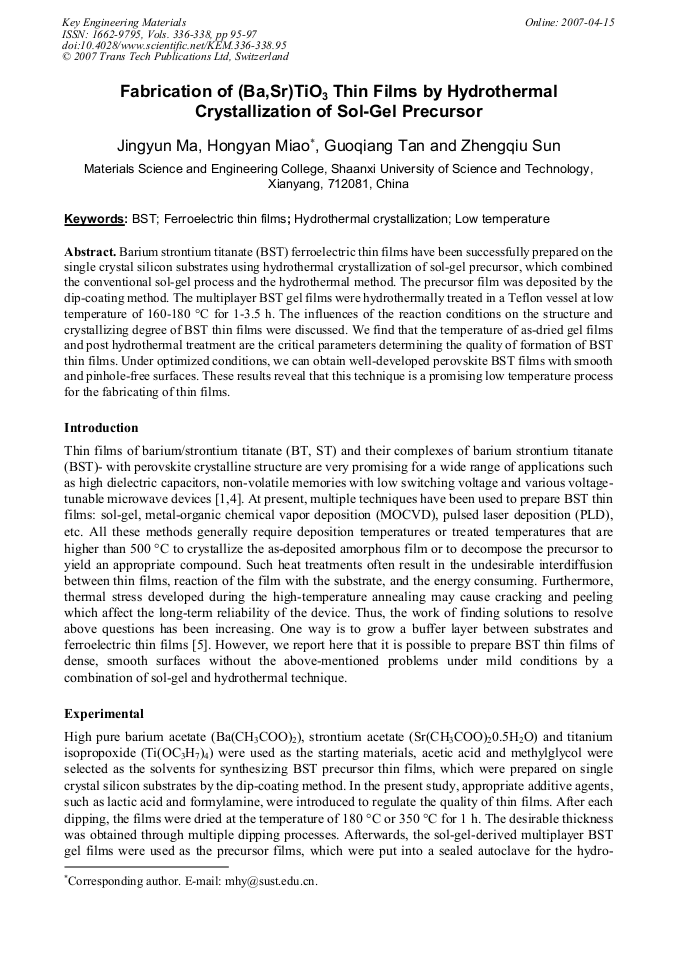

Article Preview

Barium strontium titanate (BST) ferroelectric thin films have been successfully prepared on the single crystal silicon substrates using hydrothermal crystallization of sol-gel precursor, which combined the conventional sol-gel process and the hydrothermal method. The precursor film was deposited by the dip-coating method. The multiplayer BST gel films were hydrothermally treated in a Teflon vessel at low temperature of 160-180 °C for 1-3.5 h. The influences of the reaction conditions on the structure and crystallizing degree of BST thin films were discussed. We find that the temperature of as-dried gel films and post hydrothermal treatment are the critical parameters determining the quality of formation of BST thin films. Under optimized conditions, we can obtain well-developed perovskite BST films with smooth and pinhole-free surfaces. These results reveal that this technique is a promising low temperature process for the fabricating of thin films.



Key Engineering Materials (Volumes 336-338)

Edited by:

Wei Pan and Jianghong Gong




J. Y. Ma et al., "Fabrication of (Ba,Sr)TiO3 Thin Films by Hydrothermal Crystallization of Sol-Gel Precursor", Key Engineering Materials, Vols. 336-338, pp. 95-97, 2007

Online since:

April 2007




[1] T. J. Zhang, H. Ni: Sensors and Actuators A . 100 (2002), p.252.

[2] Y.F. Gao, Y. Masuda, K. Koumoto Chem.: Mater. Vol. 14 (2002), p.5006.

[3] S.I. Jang, H.M. Jang: Ceram. Inter. Vol. 26 (2000), p.421.

[4] K.B. Chong, L.B. Kong, L. Chen, et al.: J. Appl. Phy. Vol. 95(2004), p.1416.

[5] D. Peng and Z. Meng: Microelec. Eng. Vol. 66 (2003), p.631.

[6] V.A. Vasiljev, K.A. Vorotilov, M.I. Yanovskaya, et al.: J. Sol-gel Sci. Tech. Vol. 13 (1998), p.877.

[7] J. M. Zeng, M. Zhang, Z. T. Song, et al.: Appl. Surf. Sci. Vol. 148 (1999), p.137.
