Nanometer Positioning in the Presence of Friction

Abstract:

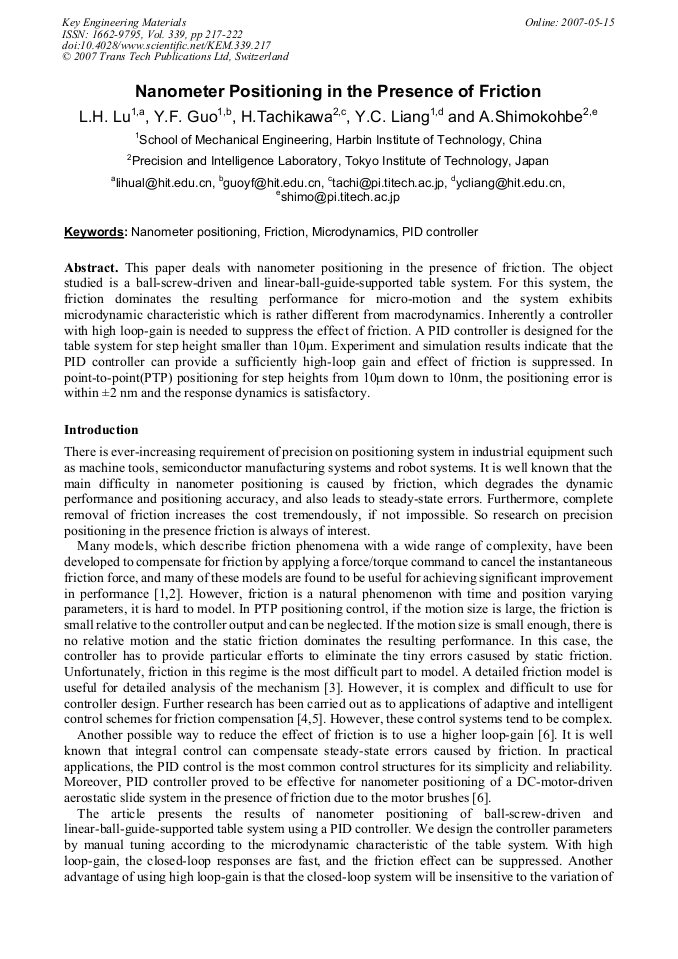

Article Preview

This paper deals with nanometer positioning in the presence of friction. The object studied is a ball-screw-driven and linear-ball-guide-supported table system. For this system, the friction dominates the resulting performance for micro-motion and the system exhibits microdynamic characteristic which is rather different from macrodynamics. Inherently a controller with high loop-gain is needed to suppress the effect of friction. A PID controller is designed for the table system for step height smaller than 10μm. Experiment and simulation results indicate that the PID controller can provide a sufficiently high-loop gain and effect of friction is suppressed. In point-to-point(PTP) positioning for step heights from 10μm down to 10nm, the positioning error is within ±2 nm and the response dynamics is satisfactory.

Info:

Periodical:

Edited by:

Shen Dong and Yingxue Yao

Pages:

217-222

Citation:

L. H. Lu et al., "Nanometer Positioning in the Presence of Friction", Key Engineering Materials, Vol. 339, pp. 217-222, 2007

Online since:

May 2007

Export:

Price:

$38.00

[1] E.G. Papadopoulos and G.C. Chasparis: IEEE International Conference on Intelligent Robots and Systems, (Lausanne, Switzerland 2002).

[2] C. Canudas de Wit, H. Olsson, K.J. Astrom and P. Lischinsky: IEEE transactions on automatic control, Vol. 40 (1995), p.419.

DOI: https://doi.org/10.1109/9.376053

[3] C. Hsieh and Y. -C. Pan: Wear, Vol. 242 (2000), p.1.

[4] J. Mao, H. Tachikawa and A. Shimokohbe: Japan-USA Symposium on flexible automation, (Hiroshima, Japan 2002).

[5] J.H. Ryu, J. Song and D.S. Kwon: Control Engineering Practice, Vol. 9 (2001), p.159.

[6] J. Mao, H. Tachikawa and A. Shimokohbe: Precision Engineering, Vol. 27 (2003), p.32.
