Fabrication of Micro Parts with Micro-WEDM

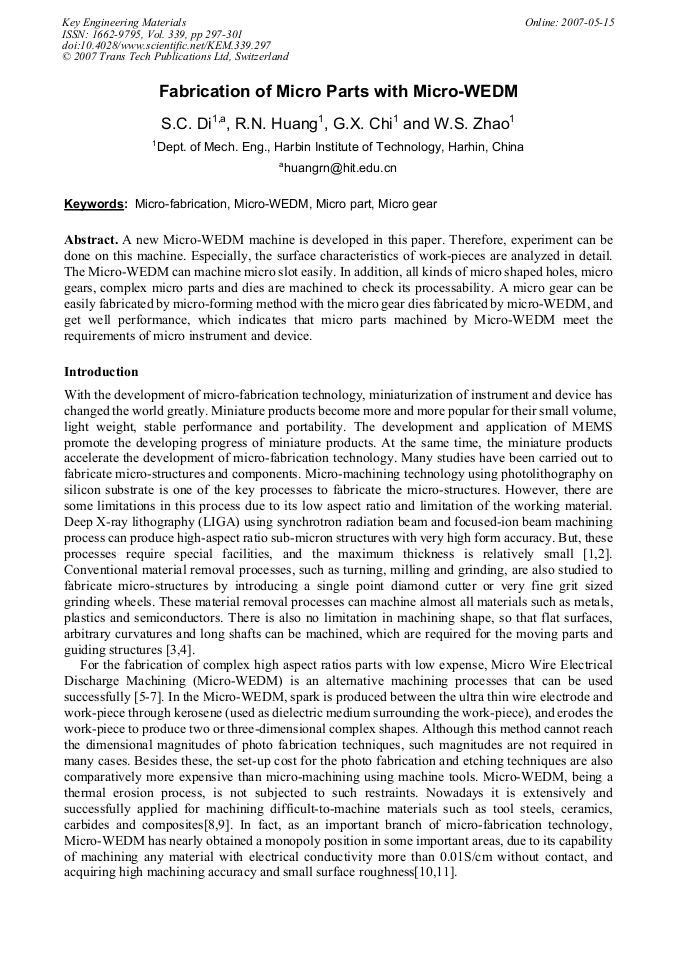

Article Preview

A new Micro-WEDM machine is developed in this paper. Therefore, experiment can be done on this machine. Especially, the surface characteristics of work-pieces are analyzed in detail. The Micro-WEDM can machine micro slot easily. In addition, all kinds of micro shaped holes, micro gears, complex micro parts and dies are machined to check its processability. A micro gear can be easily fabricated by micro-forming method with the micro gear dies fabricated by micro-WEDM, and get well performance, which indicates that micro parts machined by Micro-WEDM meet the requirements of micro instrument and device.



Edited by:

Shen Dong and Yingxue Yao




S. C. Di et al., "Fabrication of Micro Parts with Micro-WEDM", Key Engineering Materials, Vol. 339, pp. 297-301, 2007

Online since:

May 2007




[1] H. Okuyama and H. Takada: Nuclear Instruments and Methods in Physics Research B., Vol. 144 (1998), p.58.

[2] S. Matsui, T. Kaito and J.I. Fujita, and et al: JSPE., Vol. 67 (2001) No. 9, p.1412 (in Japanese).

[3] Z. Lu, T. Yoneyama and J. Mach: Tools & Manufacture., Vol. 39 (1999), p.1171.

[4] M. Rahman, A.S. Kumar, J.R.S. Prakash and J. Mater: Process. Technol. Vol. 116 (2001), p.39.

[5] F. Michel, W. Ehrfeld and O. Koch, and et al: Proc. Int. Seminar on Precision Engineering and Micro Technology, (2000), p.127. (in Aachen).

[6] O. Koch, W. Ehrfeld and F. Michel and et al: The 13th Int. Symp. on Electro Machining, (2001), p.154. (In Spain).

[7] G.L. Benavides, L.F. Bieg and M.P. Saavedra: Microsystem Technologies, Vol. 8 (2002) No. 9, p.395.

[8] F. Klocke, D. Lung and D. Thomaidis and et al: J. Mater. Process. Technol., Vol. 149 (2004), p.579.

[9] M.T. Yan, C.W. Huang and C.C. Fang, et al: J. Mater. Process. Technol. Vol. 149 (2004), p.99.

[10] N. Tosun, C. Cogun. J. Mater: Process. Technol., Vol. 134 (2003), p.273.

[11] J.P. Kruth, H.K. Tonshoff and F. Klocke: The 12th Int. Symp. on Electro Machining, (1998), p.33.
