FE Simulation of Diamond Turning with Different Friction Coefficients

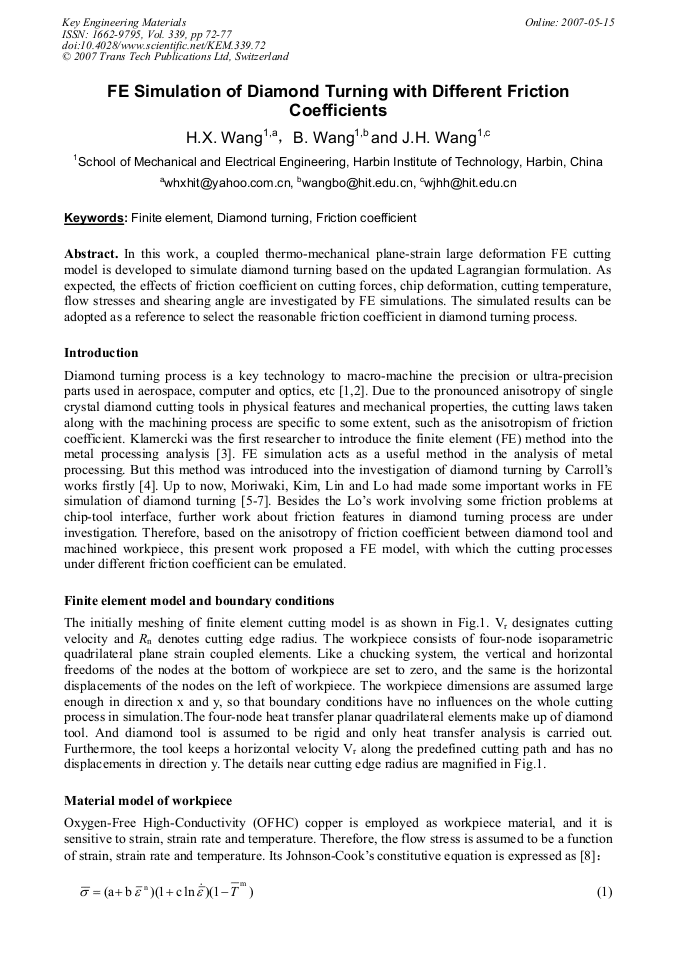

Article Preview

In this work, a coupled thermo-mechanical plane-strain large deformation FE cutting model is developed to simulate diamond turning based on the updated Lagrangian formulation. As expected, the effects of friction coefficient on cutting forces, chip deformation, cutting temperature, flow stresses and shearing angle are investigated by FE simulations. The simulated results can be adopted as a reference to select the reasonable friction coefficient in diamond turning process.



Edited by:

Shen Dong and Yingxue Yao




H.X. Wang et al., "FE Simulation of Diamond Turning with Different Friction Coefficients", Key Engineering Materials, Vol. 339, pp. 72-77, 2007

Online since:

May 2007




[1] Z.J. Yuan and X.K. Wang: Precision & Ultra-precision Machining Techniques (Mech Tech Publications, Beijing 1999).

[2] Z.J. Yuan, Y.X. Yao and et al: CIRP ANNALS, Vol. 52M (2003) No. 1, pp.285-288.

[3] B.E. Klamechi: Incipient chip formation in metal cutting-A three dimension finite element analysis- [PhD. Dissertation] (Urbana, IL: University of Illinois at Urbana-Champaign, 1973).

[4] J.T. Carroll Ⅲ and J.S. Strenkowski: Int. J. Mech. Sci., Vol. 30 (1988) No. 12, p.899.

[5] T. Moriwaki, N. Sugimura and S. Luan: Ann. CIRP, Vol. 42 (1993) No. 1, p.75.

[6] K.W. Kim, W.Y. Lee and H.C. Sin: Int. J. Mach. Tool. Manu, Vol. 39 (1999), p.1507.

[7] Z.C. Lin and S.P. Lo: J. Mater. Process. Tech, Vol. 65 (1997), p.281.

[8] S.P. Lo and Y.Y. Lin: J. Mater. Process. Tech, Vol. 121 (2002), p.285.

[9] D.A. Lucca, R.L. Rhorer and R. Komanduri: Ann. CIRP, Vol. 40 (1991) No. 1, p.69.
