Evaluation of Strain Concentration in Carbon Nanotube with Bend Junction

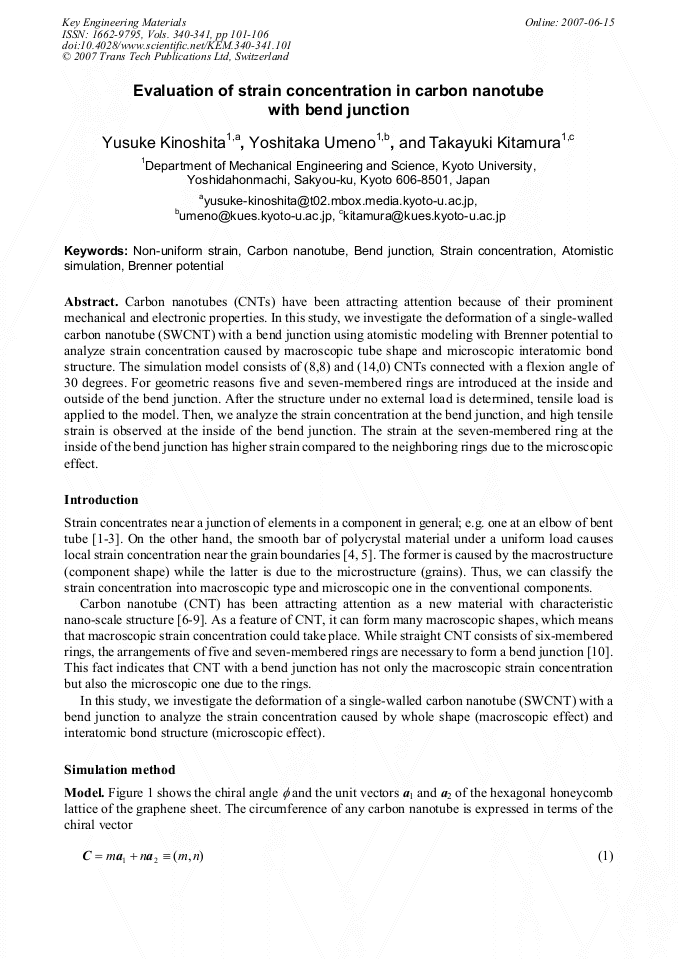

Article Preview

Carbon nanotubes (CNTs) have been attracting attention because of their prominent mechanical and electronic properties. In this study, we investigate the deformation of a single-walled carbon nanotube (SWCNT) with a bend junction using atomistic modeling with Brenner potential to analyze strain concentration caused by macroscopic tube shape and microscopic interatomic bond structure. The simulation model consists of (8,8) and (14,0) CNTs connected with a flexion angle of 30 degrees. For geometric reasons five and seven-membered rings are introduced at the inside and outside of the bend junction. After the structure under no external load is determined, tensile load is applied to the model. Then, we analyze the strain concentration at the bend junction, and high tensile strain is observed at the inside of the bend junction. The strain at the seven-membered ring at the inside of the bend junction has higher strain compared to the neighboring rings due to the microscopic effect.



Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara




Y. Kinoshita et al., "Evaluation of Strain Concentration in Carbon Nanotube with Bend Junction", Key Engineering Materials, Vols. 340-341, pp. 101-106, 2007

Online since:

June 2007




[1] V. C Matzen and L. Yu: Nucl. Eng. Des Vol. 181 (1998), p.257.

[2] P. Le Delliou et al: Nucl. Eng. Des Vol. 193 (1999), p.273.

[3] S.H. Ahn et al: Nucl. Eng. Des, Vol. 211 (2002), p.91.

[4] T. Sumigawa, T. Kitamura and K. Ohisi: Fatigue. Fract. Engng. Mater. Struct Vol. 27(6) (2004), p.495.

[5] T. Kitamura, T. Sumigawa and K. Ohisi: JSME International Journal Series A Vol. 47(2) (2004), p.92.

[6] S. Iijima: Nature Vol. 354 (1991), p.56.

[7] P.J.F. Harris: Carbon Nanotubes and Related Structures, Cambridge University Press (1999).

[8] D. Tomanek and R.J. Enbody: Science and Application of Nanotubes, Kluwer Academic (2000).

[9] M.S. Dresselhaus et al: Carbon nanotubes, Springer (2001).

[10] J. Han et al: Phys. Rev. B Vol. 57 (1998), p.14983.

[11] H. Kitagawa et al: Molecular Dynamics for beginners, Youkendou (1997).

[12] D.W. Brenner: Phys. Rev. B Vol. 42 (1990), p.9458.
