Seismic Performance of a Reinforced Lightweight Aggregate Concrete Frame

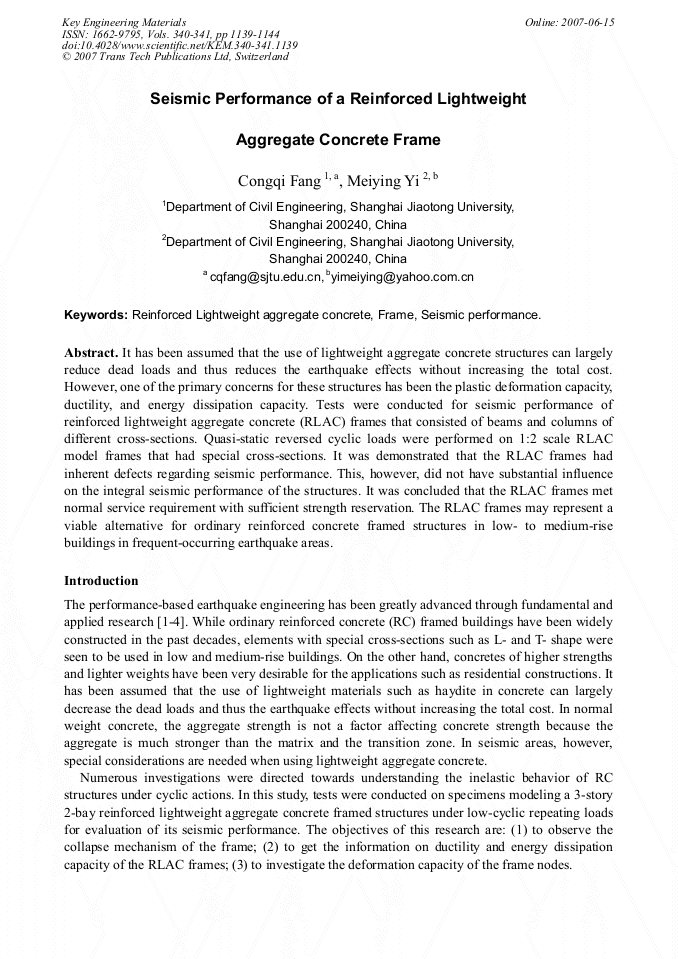

Article Preview

It has been assumed that the use of lightweight aggregate concrete structures can largely reduce dead loads and thus reduces the earthquake effects without increasing the total cost. However, one of the primary concerns for these structures has been the plastic deformation capacity, ductility, and energy dissipation capacity. Tests were conducted for seismic performance of reinforced lightweight aggregate concrete (RLAC) frames that consisted of beams and columns of different cross-sections. Quasi-static reversed cyclic loads were performed on 1:2 scale RLAC model frames that had special cross-sections. It was demonstrated that the RLAC frames had inherent defects regarding seismic performance. This, however, did not have substantial influence on the integral seismic performance of the structures. It was concluded that the RLAC frames met normal service requirement with sufficient strength reservation. The RLAC frames may represent a viable alternative for ordinary reinforced concrete framed structures in low- to medium-rise buildings in frequent-occurring earthquake areas.



Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara




C. Q. Fang and M. Y. Yi, "Seismic Performance of a Reinforced Lightweight Aggregate Concrete Frame", Key Engineering Materials, Vols. 340-341, pp. 1139-1144, 2007

Online since:

June 2007




[1] H. Krawinkler, E. Miranda, Y. Bozorgnia and V.V. Bertero: Chapter 9: Performance Based Earthquake Engineering (Earthquake Engineering: From Engineering Seismology to Performance-Based Engineering, CRC Press, Florida 2004).


[2] C.B. Haselton and G.G. Deierlein, Benchmarking seismic performance of reinforced concrete frame buildings, in: Proceedings of the Structures Congress and Exposition, Metropolis and Beyond - Proceedings of the 2005 Structures Congress and the 2005 Forensic Engineering Symposium, 2005, p.1891-(1902).


[3] H.S. Whan, H.S. Kwon and L.H. Lee: Evaluation of the seismic performance of a three-story ordinary moment-resisting concrete frame, Earthquake Engineering and Structural Dynamics, v 33, n 6, May, 2004, pp.669-685.


[4] H. Kuramoto, I. Nishiyama: Seismic performance and stress transferring mechanism of through-column-type joints for composite reinforced concrete and steel frames, Journal of Structural Engineering, v 130, n 2, February, 2004, Composite and Hybrid Structures, pp.352-360.


[5] Industry criterion (China): Design specifications for lightweight aggregate concrete structure JGJ12-99.

[6] Local code (Shanghai): Earthquake-resistance design code for constructions. DBJ08-9-92.

[7] Industry criterion (China): Design and operation code of reinforced concrete high-rise construction structure.

[8] Authur H. Nilson, David Darwin, Charles W. Dolan. Design of Concrete Structures, 13th ed, (2004), Printed in Singapore.

[9] Yunfei, Xu, Qingchang, Hu. Experiment study of the mechanic characteristic of 2-bay and 3-story reinforced concrete frame under low cyclic repeating load. Construction Structures No. 2, 1986 (In Chinese).
