Stringer Stiffened Cylinders on Local Supports – The Plastic Buckling Behavior

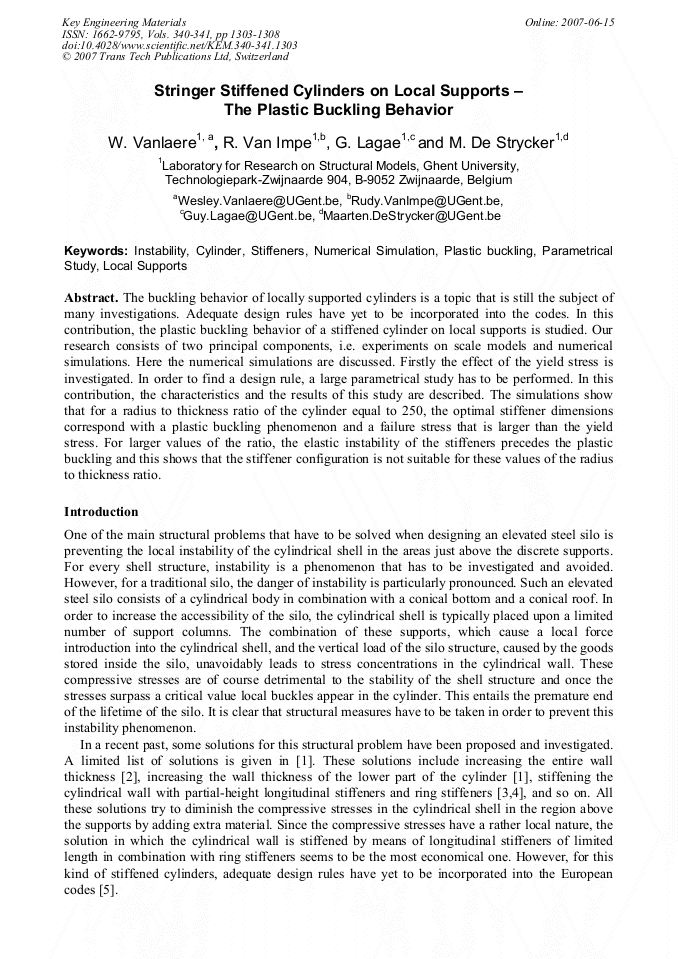

Article Preview

The buckling behavior of locally supported cylinders is a topic that is still the subject of many investigations. Adequate design rules have yet to be incorporated into the codes. In this contribution, the plastic buckling behavior of a stiffened cylinder on local supports is studied. Our research consists of two principal components, i.e. experiments on scale models and numerical simulations. Here the numerical simulations are discussed. Firstly the effect of the yield stress is investigated. In order to find a design rule, a large parametrical study has to be performed. In this contribution, the characteristics and the results of this study are described. The simulations show that for a radius to thickness ratio of the cylinder equal to 250, the optimal stiffener dimensions correspond with a plastic buckling phenomenon and a failure stress that is larger than the yield stress. For larger values of the ratio, the elastic instability of the stiffeners precedes the plastic buckling and this shows that the stiffener configuration is not suitable for these values of the radius to thickness ratio.



Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara




W. Vanlaere et al., "Stringer Stiffened Cylinders on Local Supports – The Plastic Buckling Behavior", Key Engineering Materials, Vols. 340-341, pp. 1303-1308, 2007

Online since:

June 2007




[1] W. Guggenberger, in: Buckling of Thin Metal Shells, edited by J.G. Teng & J.M. Rotter, Spon Press, London (2004).

[2] W. Guggenberger: Nonlinear buckling behaviour of circular cylindrical shells under local axial loads. Doctoral Dissertation (in German) (Institute for Steel, Timber and Shell Structures, Technical University of Graz, Austria 1992).

[3] K.U. Herzig: The Stability of Steel Silo Shells on Local Supports. Doctoral Dissertation (in German) (University of Leipzig, Germany 2001).

[4] W. Vanlaere: The Buckling Behaviour of Stiffened Cylinders on Local Supports. Doctoral Dissertation (in Dutch) (Ghent University, Belgium 2006).

[5] ENV 1993-1-6: Eurocode 3: Design of steel structures, Part 1. 6: General rules - Supplementary rules for the strength and stability of shell structures (Eurocode 3 Part 1. 6, CEN, Brussels 1999).


[6] W. Vanlaere, G. Lagae, R. Van Impe, P. Buffel, J. Belis, M. De Beule, in: International Conference on Design, Inspection, Maintenance and Operation of Cylindrical Steel Tanks and Pipelines, Proceedings (2003).
